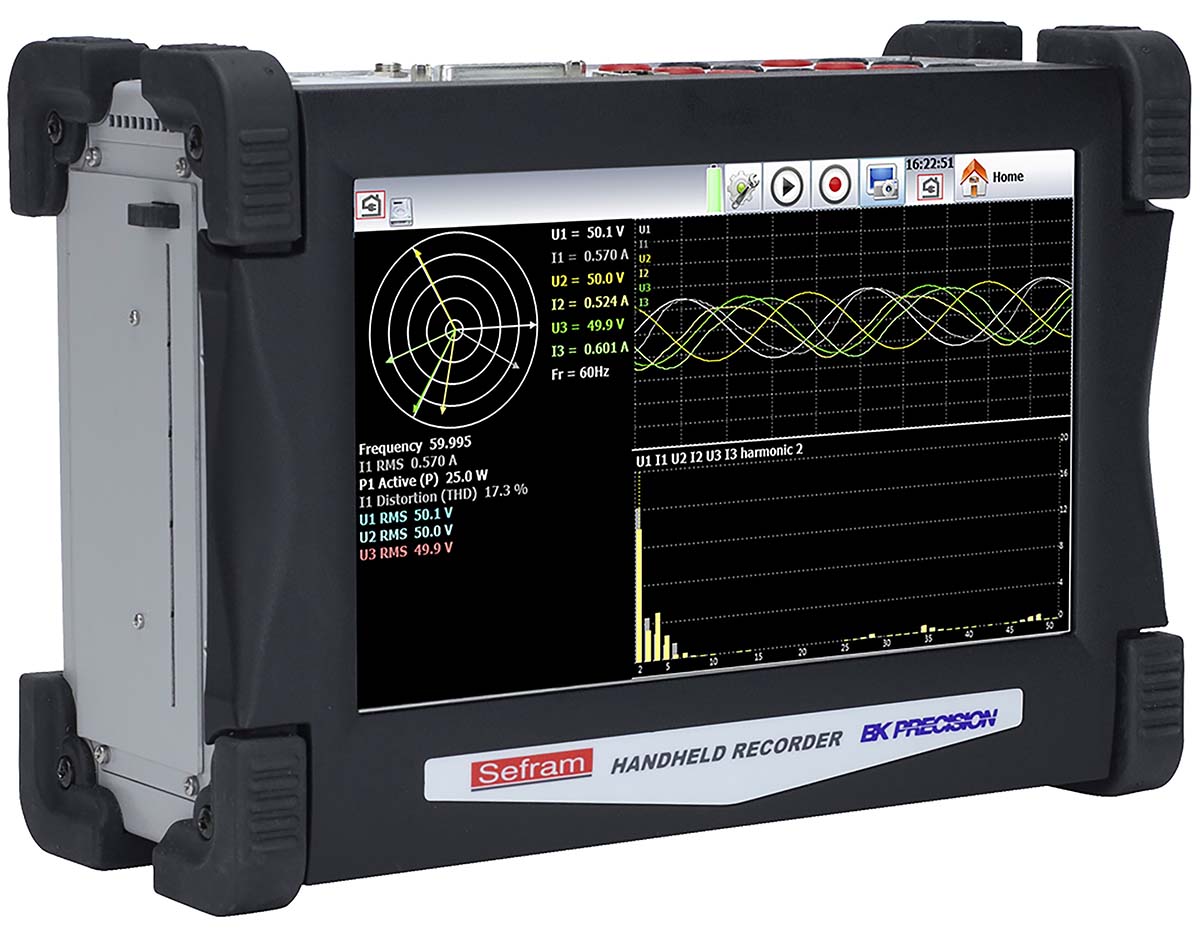

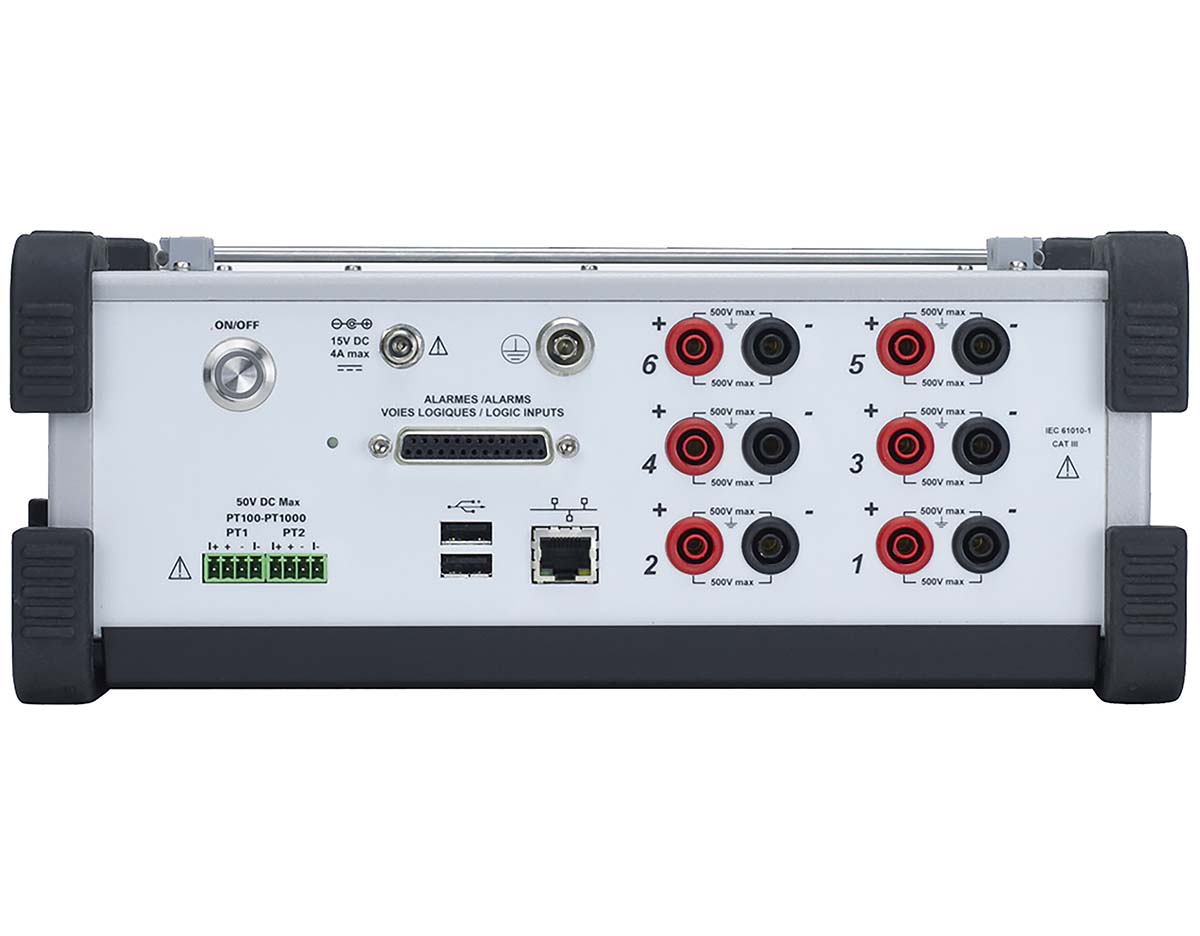

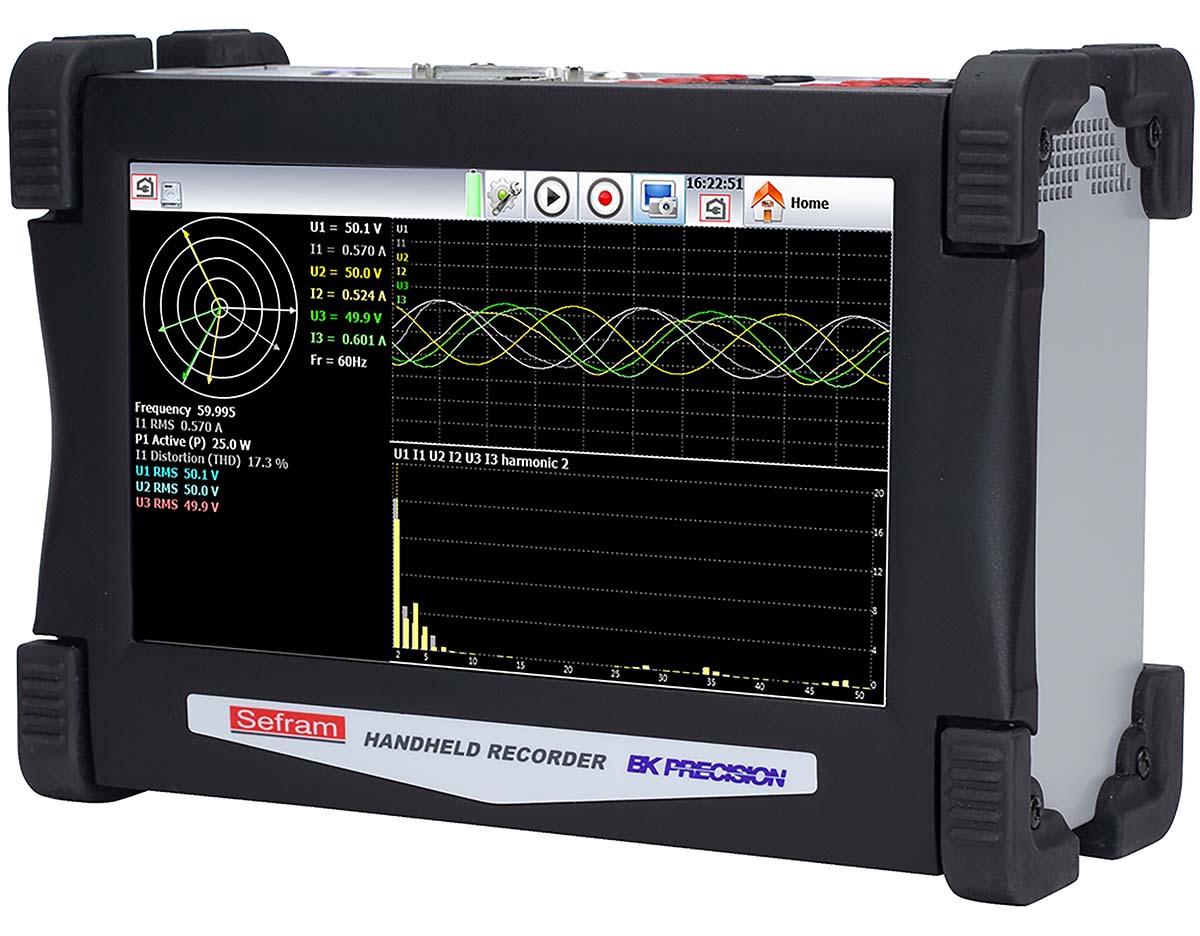

The new Data Acquisition Solution DAS60 is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 6 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs, more than 9 hours autonomy, a 64GB memory, the DAS60 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz.
6 analogue isolated channels
Universal input
DC, AC+DC RMS voltage measurement
Frequency, counter
Temperature: thermocouple, Pt100/Pt1000 (2 separate channels)
Network and power analysis function (up to 400Hz) with trigger on parameters
Inrush current measurement
PWM measurement
64 GB internal hard disk
32 Mword memory Options 2320453 : WiFi option
7918071 : External 16 isolated logical channel adapter
1259523 : Special cord for logic inputs (banana)
Universal input
DC, AC+DC RMS voltage measurement
Frequency, counter
Temperature: thermocouple, Pt100/Pt1000 (2 separate channels)
Network and power analysis function (up to 400Hz) with trigger on parameters
Inrush current measurement
PWM measurement
64 GB internal hard disk
32 Mword memory Options 2320453 : WiFi option
7918071 : External 16 isolated logical channel adapter
1259523 : Special cord for logic inputs (banana)
DAS60 Data Acquisition System, 6 Channel(s), Ethernet, USB, 1Msps, 14 bit
£ 6441.75
Checking for live stock
Number of Input Channels:
6
Sampling Rate:
1Msps
Resolution:
14 bit
Connectivity:
Ethernet, USB
On Board Memory:
64000MB
Power Source:
Battery, Mains
Input Type:
Analogue, Digital
Output Type:
Digital
Battery Type:
Li-Ion
Battery Life:
4 h, 9 h
Weight:
2.5kg
Height:
105mm
