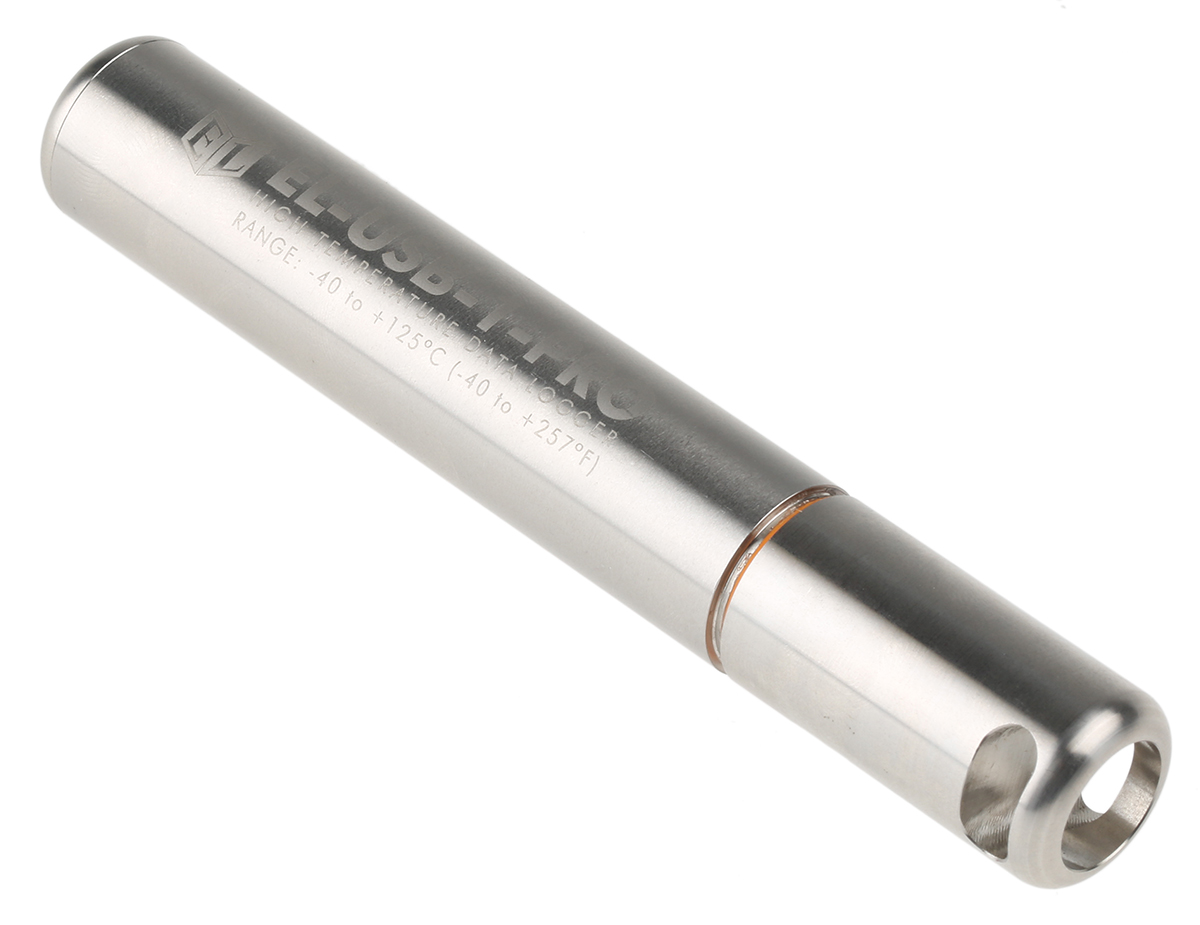

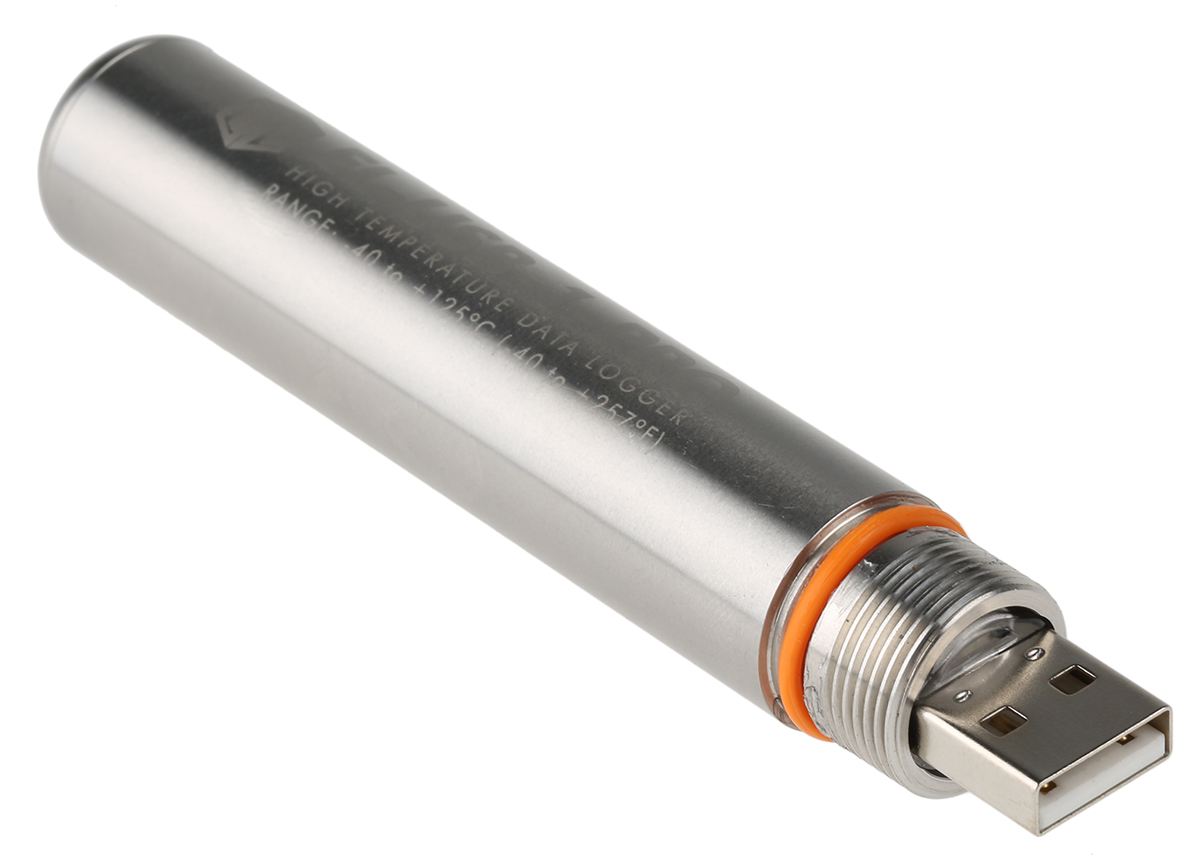

Lascar Data Loggers The Lascar EL-USB-1-PRO USB standalone data logger measures and stores over 32,000 temperature readings between -40°C and 125°C (-40°F to 257°F) range with a resolution of 0.1°C (0.2°F). The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis. The stainless steel 316 assembly protects from corrosion, impact and water ingress to IP67/NEMA 4X.
Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: www. EasyLog USB. Com Features and Benefits The measurement ranges between -40°C and 125°C (-40°F and 257°F)
Temperature measurement accuracy is ±0.2°C
Logging rates between 1 second and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via LEDs
Battery life is up to 2 years
Supplied with a 2/3AA lithium metal battery
Memory rollover function for continuous logging
Robust and waterproof aluminium case
Logging software compatible with Windows 2000, XP, Vista and all other Lascar data loggers
Export to Excel functionality Applications Food and drinks
Building and site monitoring Certifications IP67 Rated

Lascar EL-USB-1-PRO Temperature Data Logger, USB, 1 Input Channel(s)

Manufacturer:
Manufacturer Part No:
EL-USB-1-PRO
Enrgtech Part No:
ET13961485
Warranty:
Manufacturer
£ 132.8200
Checking for live stock
Model Number:
EL-USB-1-PRO
Number of Input Channels:
1
Measurement Parameters:
Temperature
Sensor Type:
Temperature
Interface Type:
USB
Data Logger Type:
Temperature
Maximum Temperature Measurement:
+125 °C
Power Source:
Battery
Best Temperature Measurement Accuracy:
±0.2°C
IP Rating:
IP67
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+125°C
Temperature Measurement Resolution:
0.1°C
Alarm:
Yes
Battery Life:
2 Years
Dimensions:
110 x 17.5mm
Number of Readings Per Channel:
32510
Battery Type:
2/3AA
Includes:
1/2 AA battery and wall mount clip
pdf icon
EL-USB-1-PRO - Quick Start Guide-f311a7c4(datasheets)
pdf icon
easylog-data-logger-EL-USB-1-PRO Datasheet-4f7e21c2(datasheets)
pdf icon
Lascar Electronics Information Security Policy-0fff63f2(datasheets)
pdf icon
UN38.3 Lithium Battery Test Summary-06528c47(datasheets)
