Lascar Temperature, Humidity and Dew Point Data Logger
The Lascar EL-USB-2 Temperature and Humidity Data Logger is a robust and user-friendly solution designed to meet the needs of professionals across various industries. Whether you're in pharmaceuticals, food production, environmental monitoring, or scientific research, the EL-USB-2 offers reliable and precise data logging capabilities.
The EL-USB-2 USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to 176°F). It has 0% to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.
Software
Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: https://www. EasyLog USB. Com
Supplied with
1/2 AA battery and wall mount clip Features and Benefits Wide Measurement Range - temperatures from -35 to +80°C (-31 to +176°F) and humidity levels from 0 to 100% RH.
Temperature measurement accuracy is ±0.5°C
Humidity measurement accuracy is ±2.25%RH
High Storage Capacity - stores over 16,000 readings, ensures you capture all the critical data you need without frequent downloads

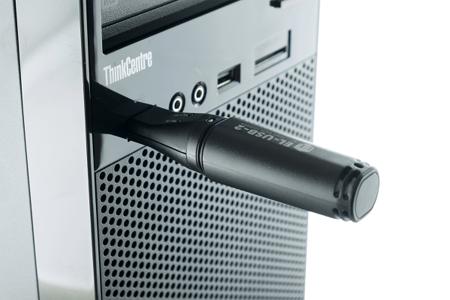

Easy Setup and Data Retrieval - simply plug the EL-USB-2 into your PC's USB port to configure the device and download data using the free EasyLog software. The software allows you to graph, print, and export data for detailed analysis
Programmable Alarm Thresholds - set custom alarm thresholds to receive alerts when temperature or humidity levels exceed your specified limits
Compact and Portable - easy to use in various environments without the need for additional equipment
Flexible Logging rates - range between 10 seconds and 12 hours
Status indication via red/green LEDs
Battery life is up to 3 years
Export to Excel functionality - for further analysis Applications The versatility of the EL-USB-2 makes it ideal for a wide range of applications, including:
Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions Certifications IP67 Rated
The EL-USB-2 USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to 176°F). It has 0% to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.
Software
Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: https://www. EasyLog USB. Com
Supplied with
1/2 AA battery and wall mount clip Features and Benefits Wide Measurement Range - temperatures from -35 to +80°C (-31 to +176°F) and humidity levels from 0 to 100% RH.
Temperature measurement accuracy is ±0.5°C
Humidity measurement accuracy is ±2.25%RH
High Storage Capacity - stores over 16,000 readings, ensures you capture all the critical data you need without frequent downloads
Easy Setup and Data Retrieval - simply plug the EL-USB-2 into your PC's USB port to configure the device and download data using the free EasyLog software. The software allows you to graph, print, and export data for detailed analysis
Programmable Alarm Thresholds - set custom alarm thresholds to receive alerts when temperature or humidity levels exceed your specified limits
Compact and Portable - easy to use in various environments without the need for additional equipment
Flexible Logging rates - range between 10 seconds and 12 hours
Status indication via red/green LEDs
Battery life is up to 3 years
Export to Excel functionality - for further analysis Applications The versatility of the EL-USB-2 makes it ideal for a wide range of applications, including:
Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions Certifications IP67 Rated

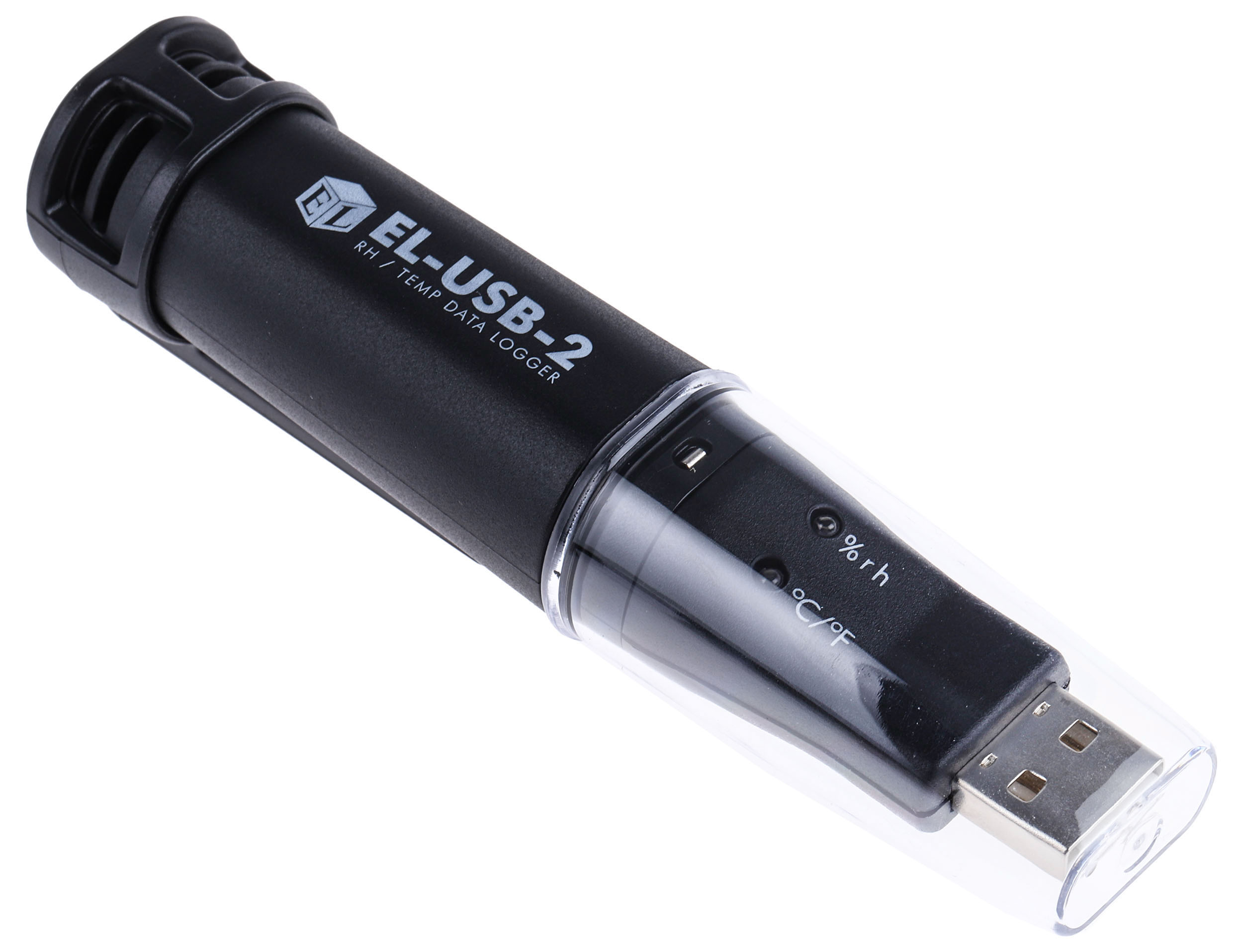

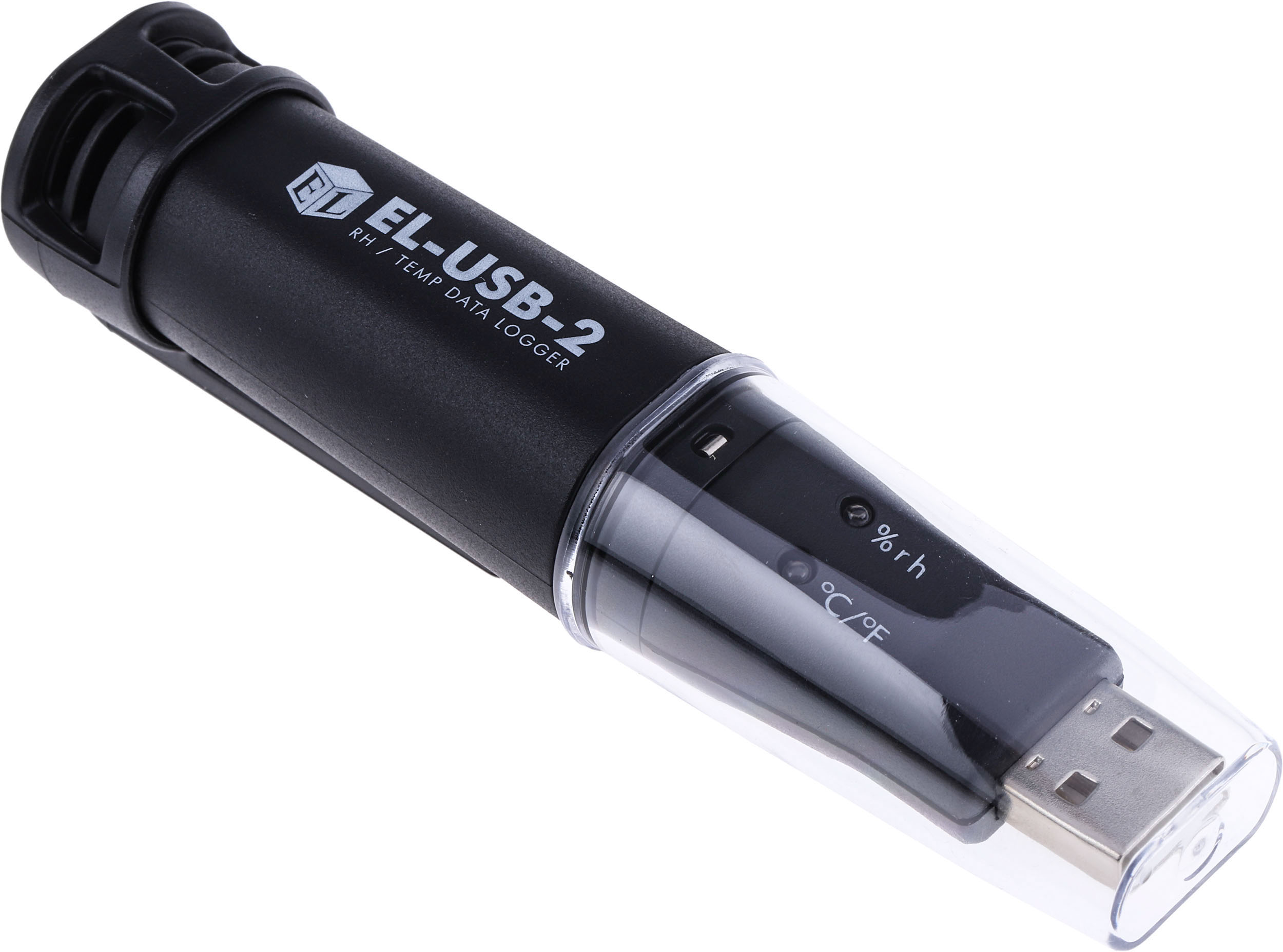

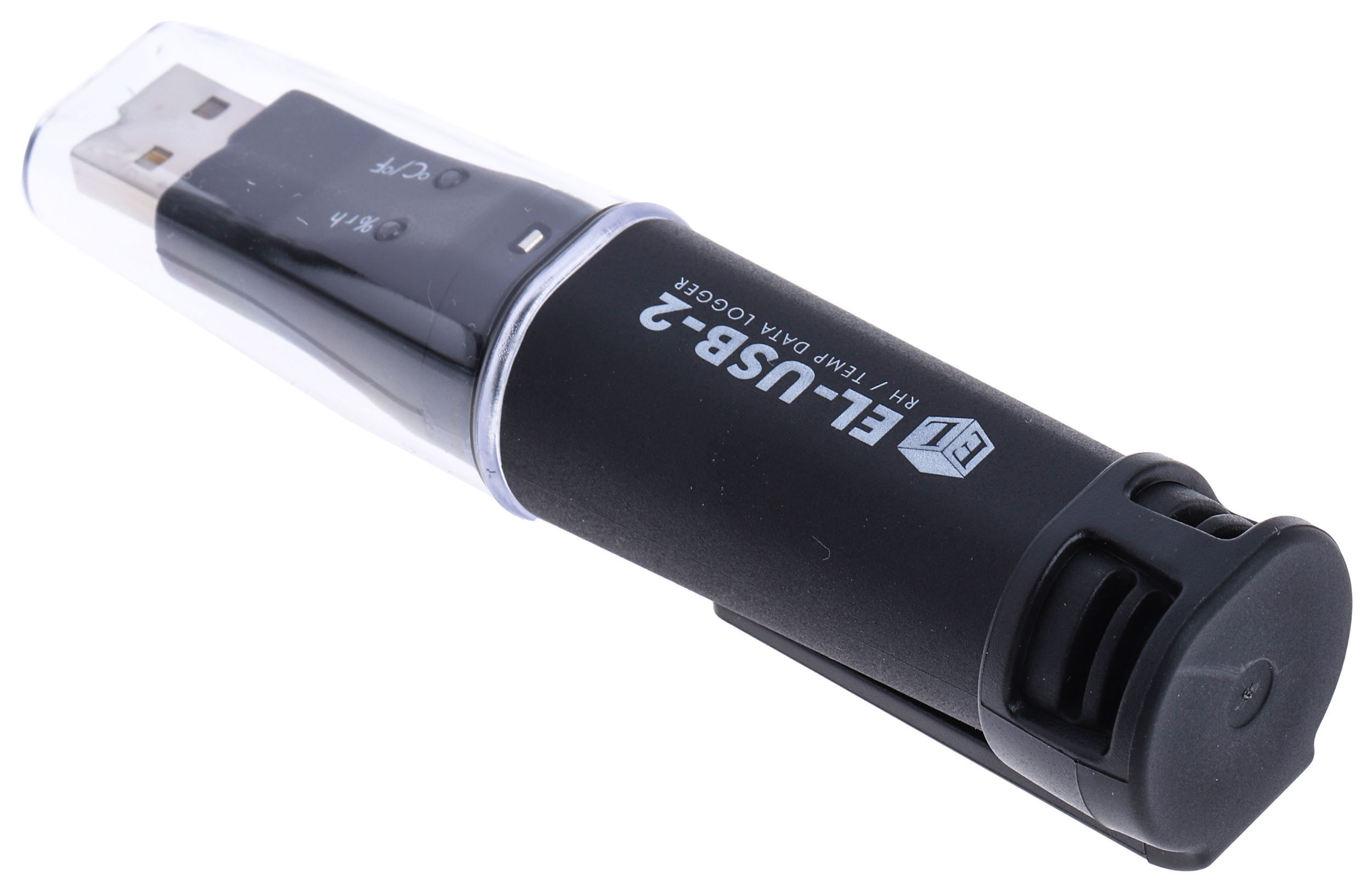

EL-USB-2 Temperature & Humidity Data Logger, USB, 1 Input Channel(s)
Manufacturer:
Lascar
Manufacturer Part No:
EL-USB-2
Enrgtech Part No:
ET13961486
Warranty:
Manufacturer
£ 63.24
Checking for live stock
Number of Input Channels:
1
Model Number:
EL-USB-2
Measurement Parameters:
Humidity, Temperature, Dew Point
Sensor Type:
Humidity, Temperature
Interface Type:
USB
Data Logger Type:
Temperature & Humidity
Maximum Temperature Measurement:
+80 °C
Power Source:
Battery
Best Temperature Measurement Accuracy:
±0.5°C
IP Rating:
IP67
Minimum Operating Temperature:
-35°C
Maximum Operating Temperature:
+80°C
