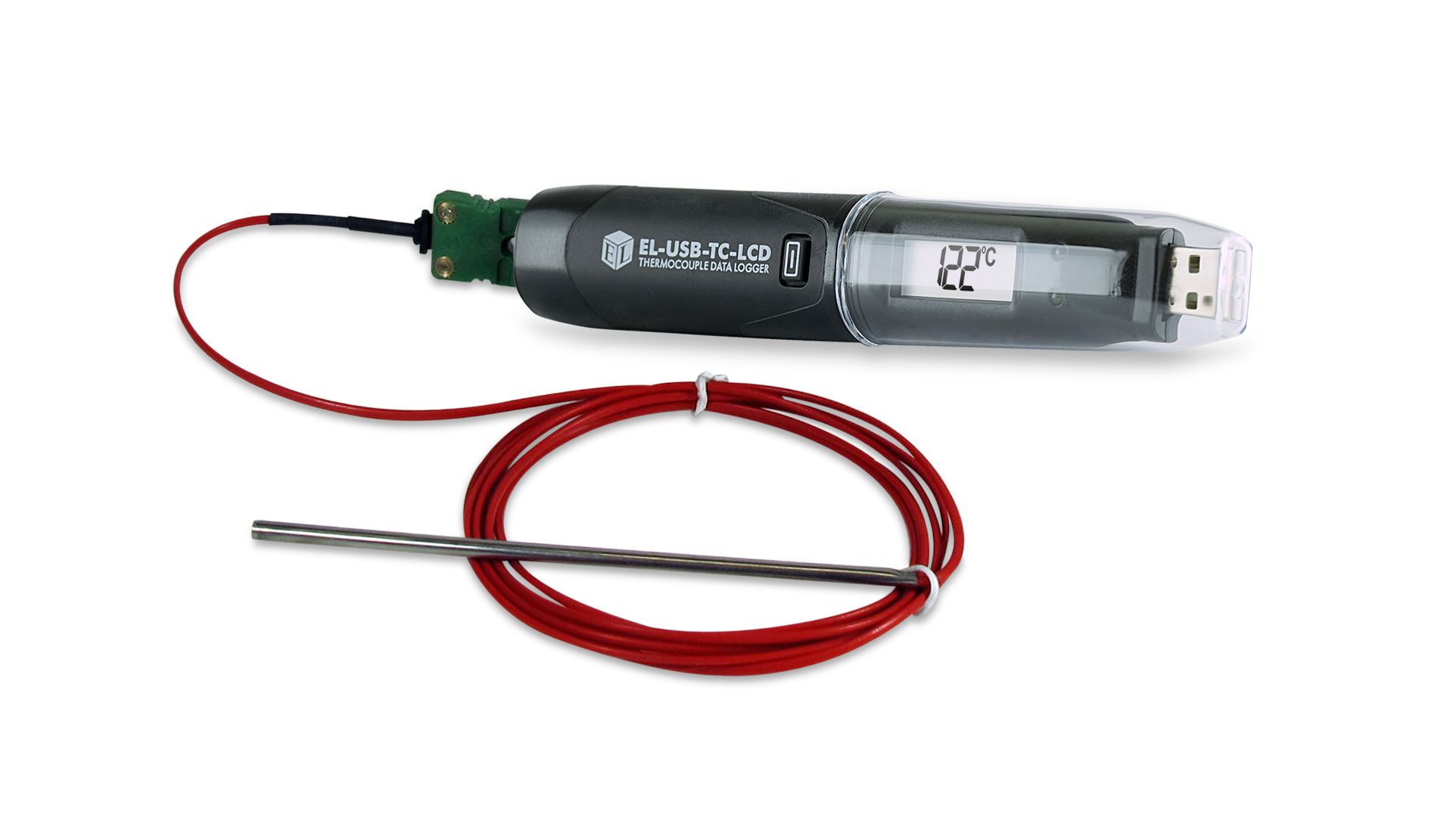

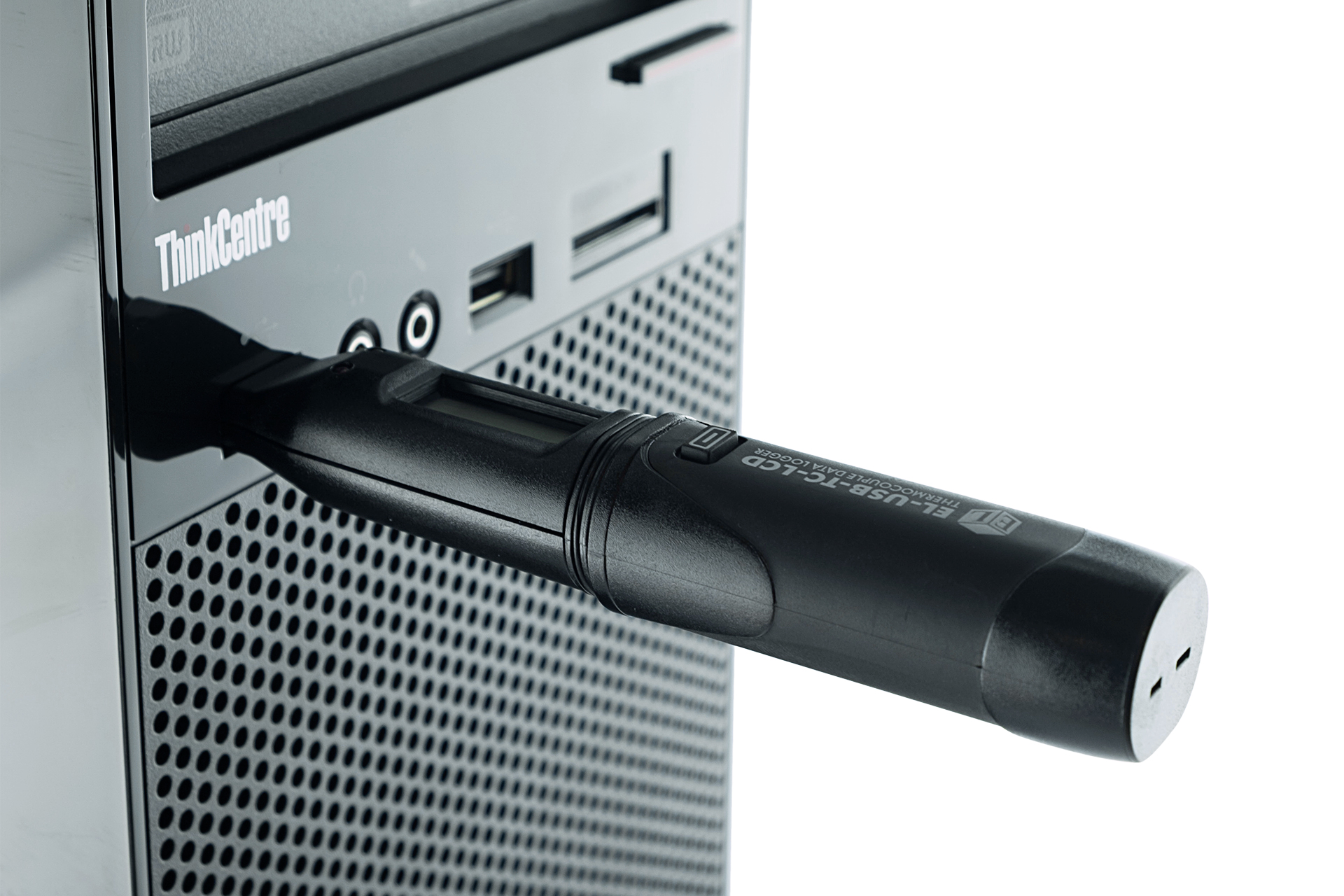

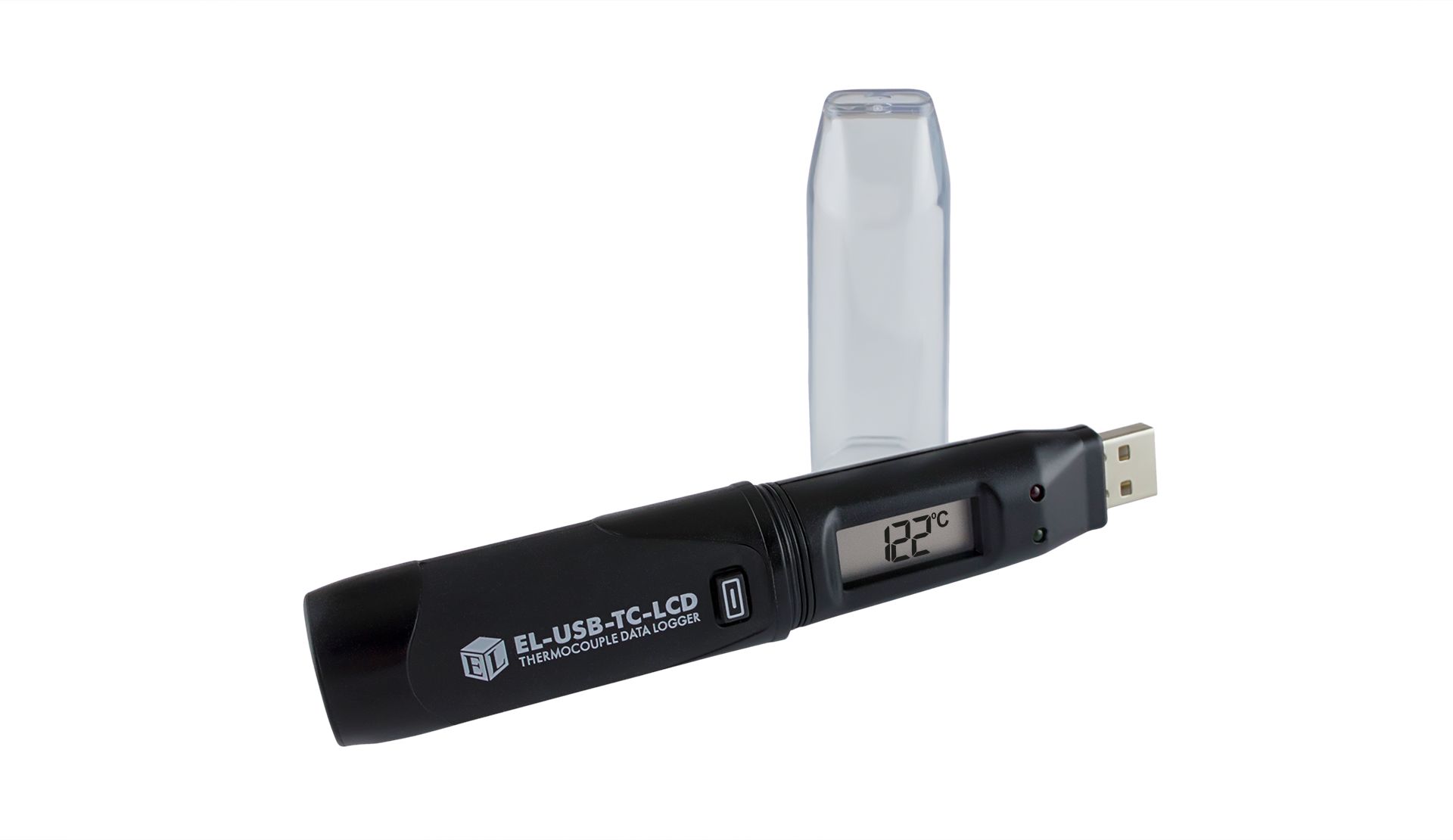

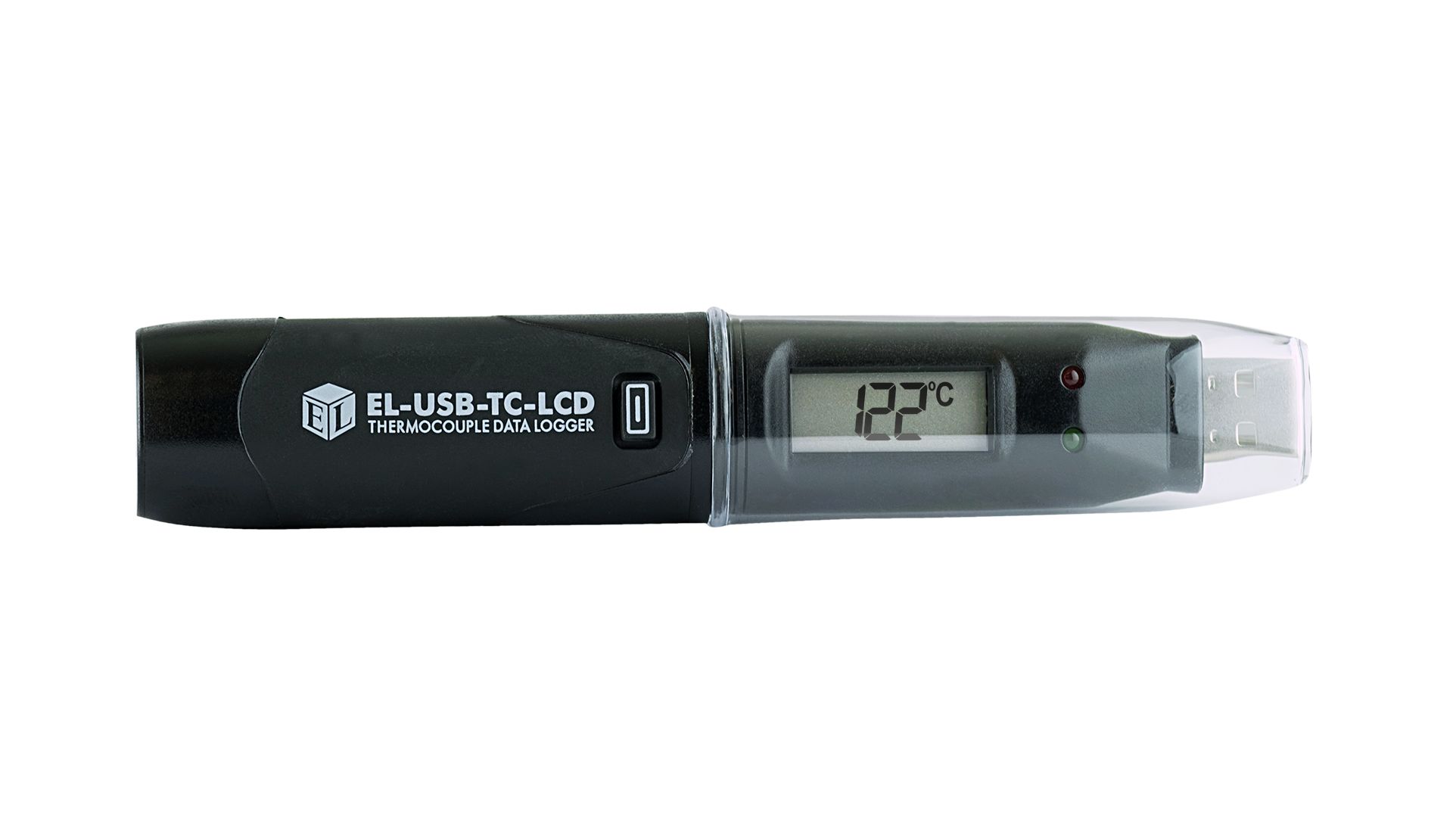

Lascar Data Loggers The Lascar EL-USB-TC-LCD standalone data logger measures and stores over 32,000 temperature readings from a J, K or T-type thermocouple at a resolution of 0.5°C (1°F). It is supplied with a K-type thermocouple, capable of measuring from 0°C to 200°C (32°F to 392°F). The application will determine which probe is most suitable based on temperature range, accuracy, form and price. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both, temperature and humidity. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
1/2 AA battery, K-type probe and wall mount clip Features and Benefits The measurement ranges between -200°C and 1350°C

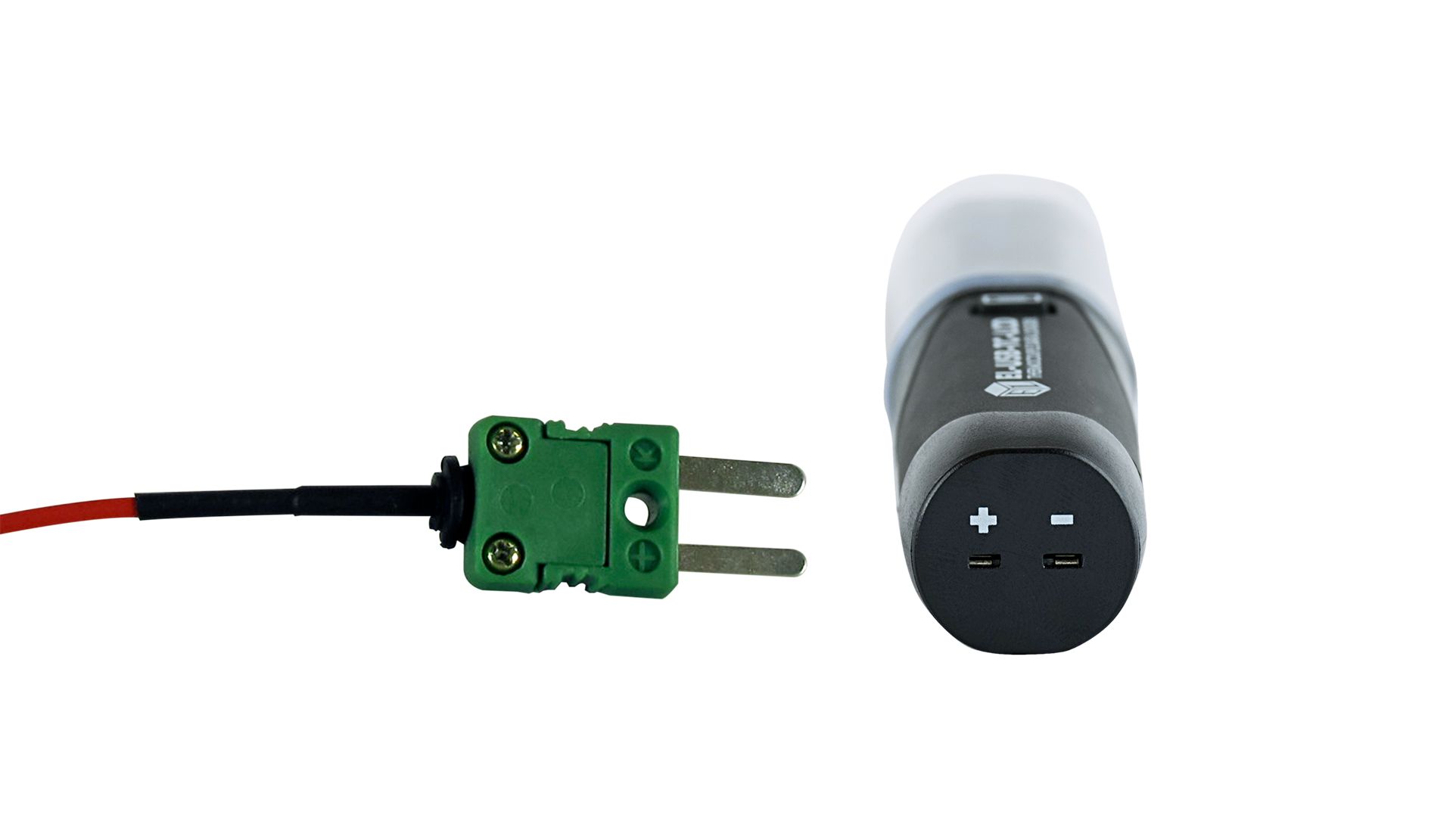

Compatible with K, J and T type thermocouples with miniature thermocouple plug connection
Temperature measurement accuracy is ±1°C
Logging rates ranges between 1 second and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds for both, temperature and humidity
Status indication via red/green LEDs
Battery life is up to 2 years
The data logger is supplied with a 1/2AA lithium metal battery
High contrast LCD with four digit temperature display function
Data logging software compatible with Windows 2000, XP and Vista. Applications Food and drinks
Building and site monitoring
Oven monitoring
Dry ice shipments
