This USB data logger records over 250,000 temperature readings in one or more sessions for up to 4 months. Inside the rugged case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. EL-WIN-USB enables quick configuration and data download via the USB port. Supplied with two thermistor probes and batteries, the EL-GFX-DTP+ is a popular part
-40 to +125°C (-40 to +257°F) measurement range
Stores over 250,000 readings
Logging rates between 2 seconds and 1 hour
On screen menu and graphing to start, stop, review and restart the logger in the field
Triggered logging mode to start recording data once a user defined level is met
High contrast, greyscale, backlit, graphic LCD screen to denote status and alarm levels
User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
EasyLog software available as a free download
Stores over 250,000 readings
Logging rates between 2 seconds and 1 hour
On screen menu and graphing to start, stop, review and restart the logger in the field
Triggered logging mode to start recording data once a user defined level is met
High contrast, greyscale, backlit, graphic LCD screen to denote status and alarm levels
User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
EasyLog software available as a free download

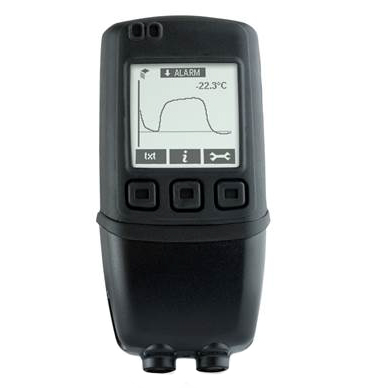

EL-GFX-DTP+ Temperature Data Logger, USB, 2 Input Channel(s)
Manufacturer:
Lascar
Manufacturer Part No:
EL-GFX-DTP+
Enrgtech Part No:
ET16826206
Warranty:
Manufacturer
£ 169.99
Checking for live stock
Model Number:
EL-GFX-DTP+
Number of Input Channels:
2
Sensor Type:
Thermistor
Measurement Parameters:
Temperature
Interface Type:
USB
Data Logger Type:
Temperature
Maximum Temperature Measurement:
+125 °C
Power Source:
Battery
Best Temperature Measurement Accuracy:
±0.2°C
IP Rating:
IP67
Minimum Operating Temperature:
-35°C
Maximum Operating Temperature:
+80°C
