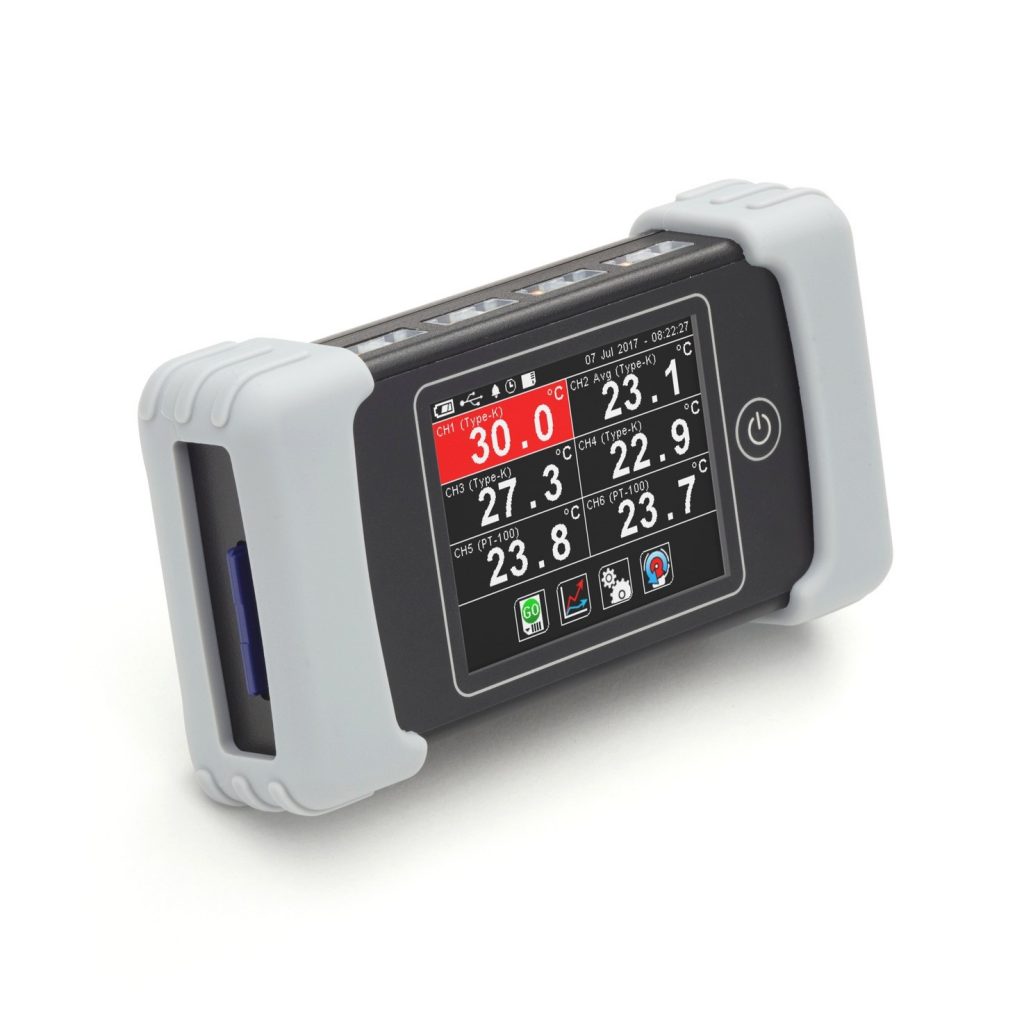

The Calex 6 Channel handheld temperature data logger with touch screen. It has 4 x thermocouple inputs and 2 x RTD inputs. It display and log all 6 channels simultaneously or individually. Data logging to SD Card, or PC via USB interface. It is powered by built-in battery, USB or mains adapter and (included) touch screen with backlight.

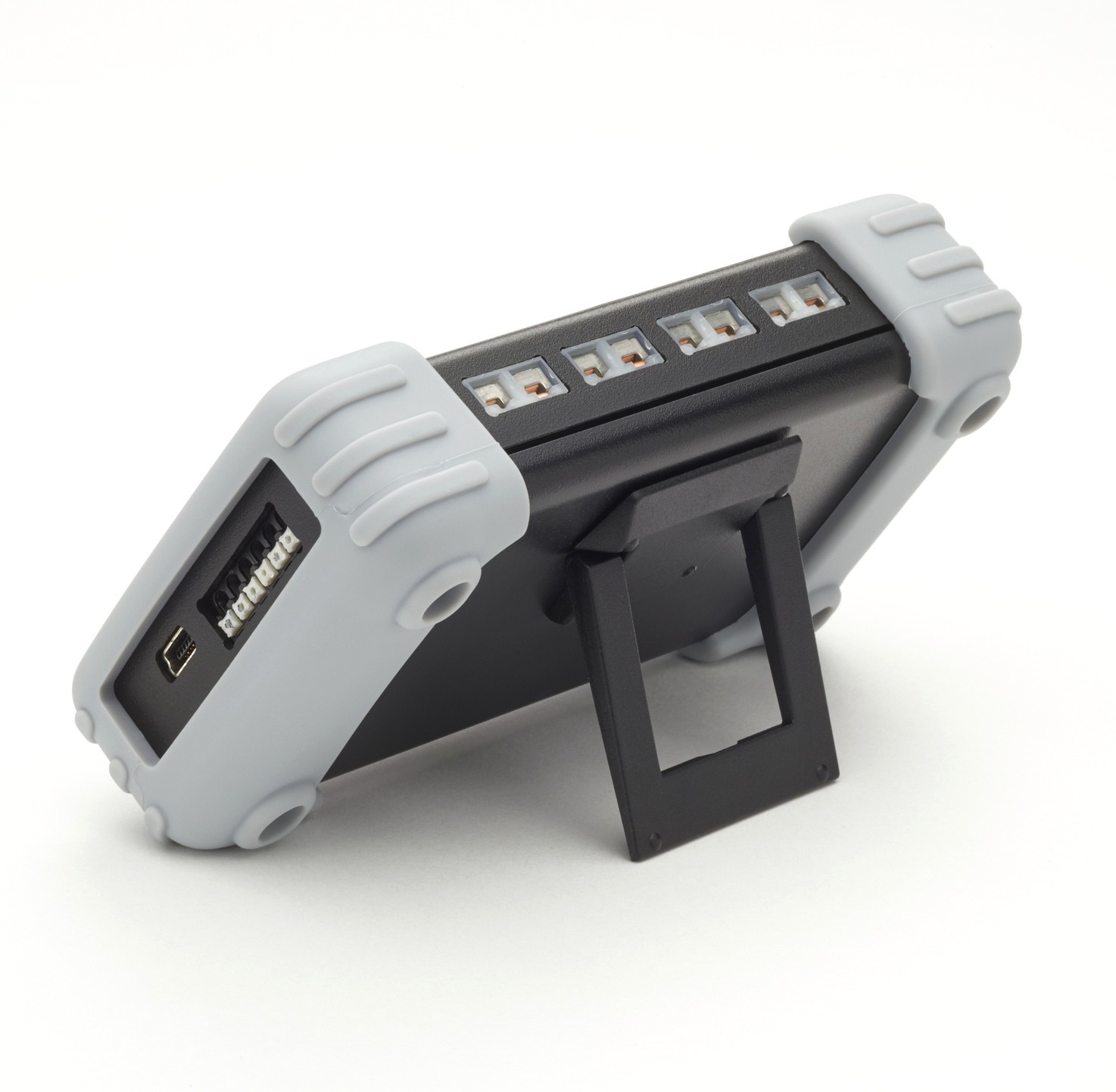

Built-in stand
Free software available
Modbus interface for integration into third-party software
2-channel scrolling temperature chart
Alarm indication for each channel
CE Marked and RoHS 2 Compliant
Free software available
Modbus interface for integration into third-party software
2-channel scrolling temperature chart
Alarm indication for each channel
CE Marked and RoHS 2 Compliant
EXCELOG-6 Temperature Data Logger, USB, 6 Input Channel(s)
Manufacturer:
Calex
Manufacturer Part No:
EXCELOG-6
Enrgtech Part No:
ET24150367
Warranty:
Manufacturer
£ 420.00
Checking for live stock
Model Number:
EXCELOG-6
Number of Input Channels:
6
Measurement Parameters:
Temperature
Sensor Type:
Thermocouple J, K, T, R, S, N, E, Pt100, Pt200, Pt500, Pt1000
Interface Type:
USB
Data Logger Type:
Temperature
Maximum Temperature Measurement:
1768°C
Best Temperature Measurement Accuracy:
± 0.1% or 0.8°C (thermocouple) / ± 1.0% or 1.0°C (RTD)
Minimum Operating Temperature:
0°C
Maximum Operating Temperature:
+50°C
Display Type:
TFT
Battery Type:
Rechargeable Lithium-Ion
