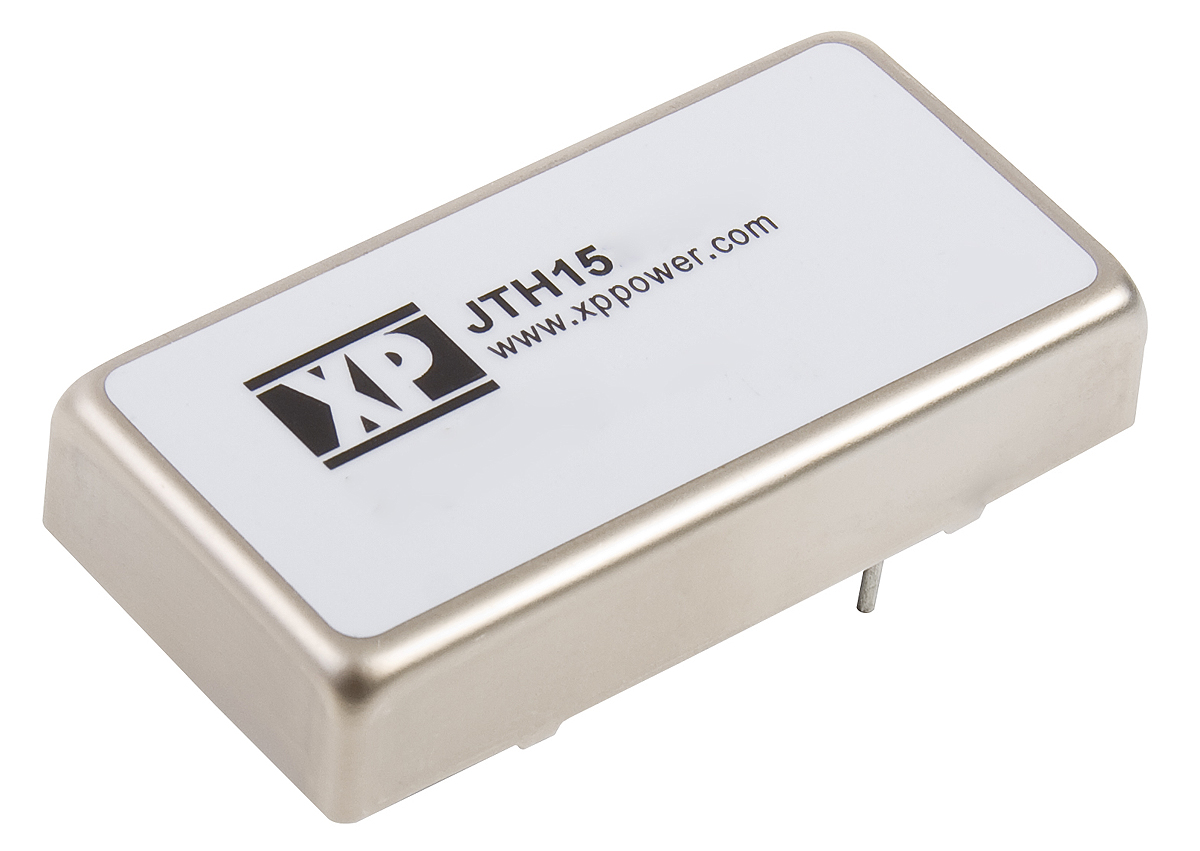

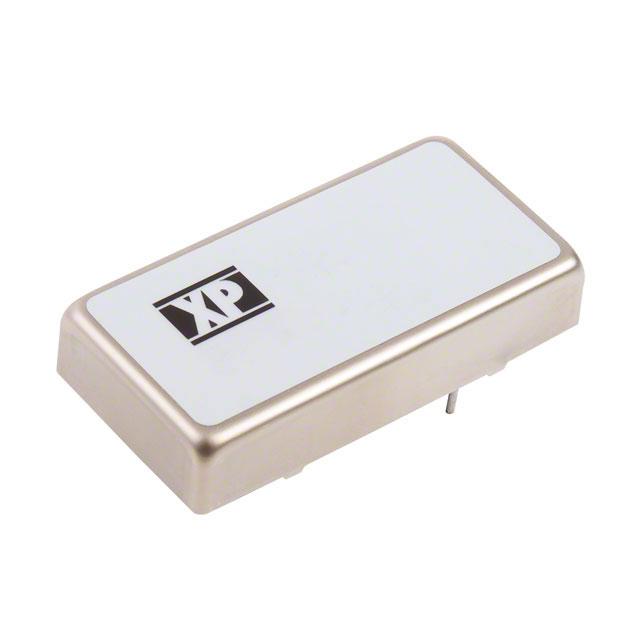

jth1548s05 XP Power JTH1548S05, DC/DC Converter, Through Hole
jth1548s05 XP Power JTH1548S05, DC/DC Converter, Through Hole
jth1548s05 XP Power JTH1548S05, DC/DC Converter, Through Hole

Engineered for consistent performance in a wide range of electronic systems, the XP Power JTH1548S05 DC/DC Converter delivers stable power conversion with maximum efficiency. Its compact, through-hole design makes it easy to integrate into PCBs for industrial, medical, and communication devices worldwide. With robust construction and advanced circuit protection, this converter ensures reliable voltage regulation and minimal energy loss, meeting the demands of both OEM manufacturers and design engineers worldwide.

What Sets the XP Power JTH1548S05, DC/DC Converter, Through Hole Apart?

Selecting this converter guarantees high-quality, dependable power delivery and easy installation. Its versatility and performance make it a trusted solution for anyone building or maintaining advanced electronics in international markets.

Unique Features Include

  • Through-hole mounting for straightforward assembly.
  • Wide input voltage range.
  • High efficiency and low ripple.
  • Compact footprint for space-saving designs.
  • Comprehensive protection (over-voltage, over-current, short-circuit).

Notable Advantages of the XP Power DC/DC Converter

  • Reliable and continuous voltage regulation.
  • Reduces the risk of device failure.
  • Optimizes space on crowded PCBs.
  • Simplifies integration in new or legacy systems.
  • Lowers long-term maintenance costs.

Use Cases

  • Industrial automation and controls
  • Medical instrumentation
  • Telecommunications equipment
  • Embedded systems
  • Consumer electronics

RoHs Compliant

XP Power JTH1548S05, DC/DC Converter, Through Hole

Manufacturer:
XP Power
Manufacturer Part No:
JTH1548S05
Enrgtech Part No:
ET10757900
Warranty:
Manufacturer
£ 37.47 £ 26.23
Checking for live stock
Number of Outputs:
1
Load Regulation:
±0.5 (10 → 100% Load) %, ±1(10% Load) %
Isolation Voltage:
1.5kV dc
Standards Met:
EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Mounting Type:
Through Hole
Package:
2 x 1 in
Maximum Temperature:
+100°C
Series:
JTH
Input Voltage Range:
18 → 72 V dc
Length:
50.8mm
Isolated:
Yes
Width:
25.4mm
Depth:
10.1mm
Output Voltage:
5V dc
Minimum Temperature:
-40°C
Input Voltage Nominal:
48 V dc
Power Rating:
15W
Output Current:
3A
Base Product Number:
JTH1548
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Power (Watts):
15 W
Current - Output (Max):
3A
Package / Case:
6-DIP Module
Voltage - Input (Min):
18V
Type:
Isolated Module
Applications:
ITE (Commercial)
Voltage - Output 1:
5V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
83%
Voltage - Input (Max):
72V
Size / Dimension:
2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
standardLeadTime:
20 Weeks
Voltage - Isolation:
1.5 kV
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
OCP, OVP, SCP, UVLO
Mounting Type:
Through Hole
Series:
JTH (15W)
Operating Temperature:
-40°C ~ 100°C
Packaging:
Tube
Standard Number:
62368-1
Number of Outputs:
1
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
pdf icon
JTH Series, 15 W Datasheet(Datasheets)
pdf icon
Declaration of Conformity JTH Series(Environmental Information)
pdf icon
RoHS Statement(Environmental Information)
