XP Power Isolated DC to High Voltage DC Converters G Series From XP Power, a range of 1.5 W isolated DC to HV DC converters. The G series are compact in size making them ideal for applications where space is limited. These versatile lightweight power supplies are available with various output voltages to accommodate a wide range of applications. Features and Benefits • Input/output Isolation
• Compact PCB mount package
• Low leakage current
• Low ripple, low EMI/RFI
• Short circuit protection
• No minimum load
• Proportional Input/output
• Proven reliability Applications • Photomultiplier tubes
• Lamp ignition and drive
• Piezo devices
• Vacuum gauges
• Capacitor charging

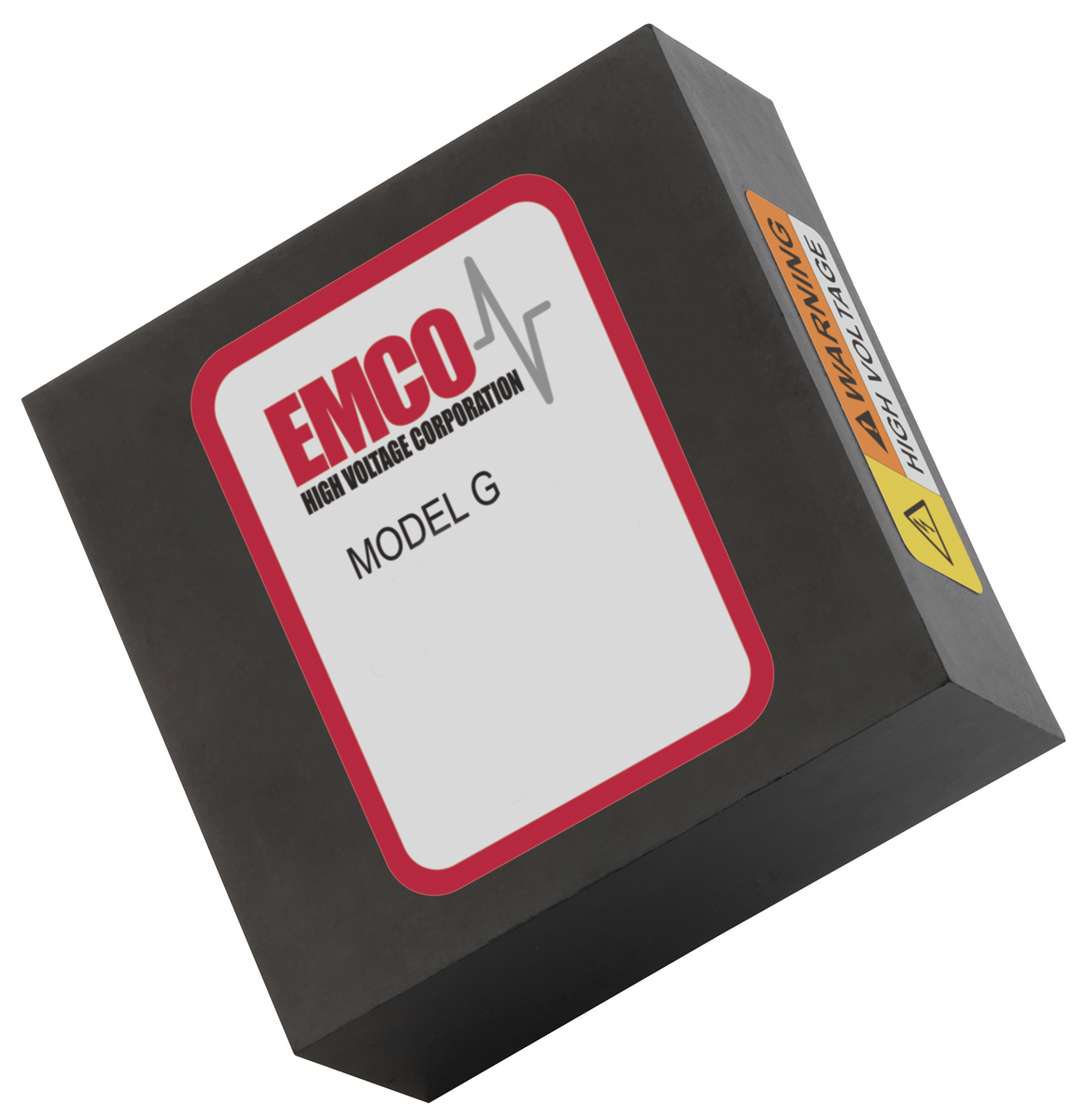

XP Power G Series DC-DC Converter, 2.5kV/ 600μA Output, 0 → 12 V dc Input, 1.5W, Through Hole, +60°C Max Temp

Manufacturer:
Manufacturer Part No:
G25
Enrgtech Part No:
ET14172988
Warranty:
Manufacturer
Checking for live stock
Output Voltage:
2.5kV
Input Voltage Range:
0 → 12 V dc
Power Rating:
1.5W
Input Voltage Nominal:
12 V dc
Output Current:
600µA
Mounting Type:
Through Hole
Isolated:
Yes
Number of Outputs:
1
Isolation Voltage:
3.5kV
Depth:
16mm
Width:
38.1mm
Length:
38.1mm
Series:
G Series
Load Regulation:
0.1
Minimum Temperature:
-10°C
Maximum Temperature:
+60°C
pdf icon
SF_G_Series Datasheet-2c6b59a8(datasheets)
