Dimension C-Series DC/DC Converters
The DIMENSION CD-series offer DIN Rail DC-DC converters in the 92 W to 120 W output power range in compact housing. These DC-DC converters are allowed to run with a battery or similar sources. This range includes all the essential basic functions and has a power reserve of 20% included. This extra power can be used continuously up to 45°C. The output is electrically isolated from the input in a safe way. The input is protected against reversed voltages and contains a soft start function.
Features and Benefits
• DC-DC converter, isolated output
• 28 V input, 24 V output
• Efficiency up to 90.3%
• Negligibly low input inrush current
• 20% power reserves can be used continuously up to 45°C Product Application Information Ideal for use in many industries including, automotive, machine building, material handling, building automation, and so on.
• 28 V input, 24 V output
• Efficiency up to 90.3%
• Negligibly low input inrush current
• 20% power reserves can be used continuously up to 45°C Product Application Information Ideal for use in many industries including, automotive, machine building, material handling, building automation, and so on.

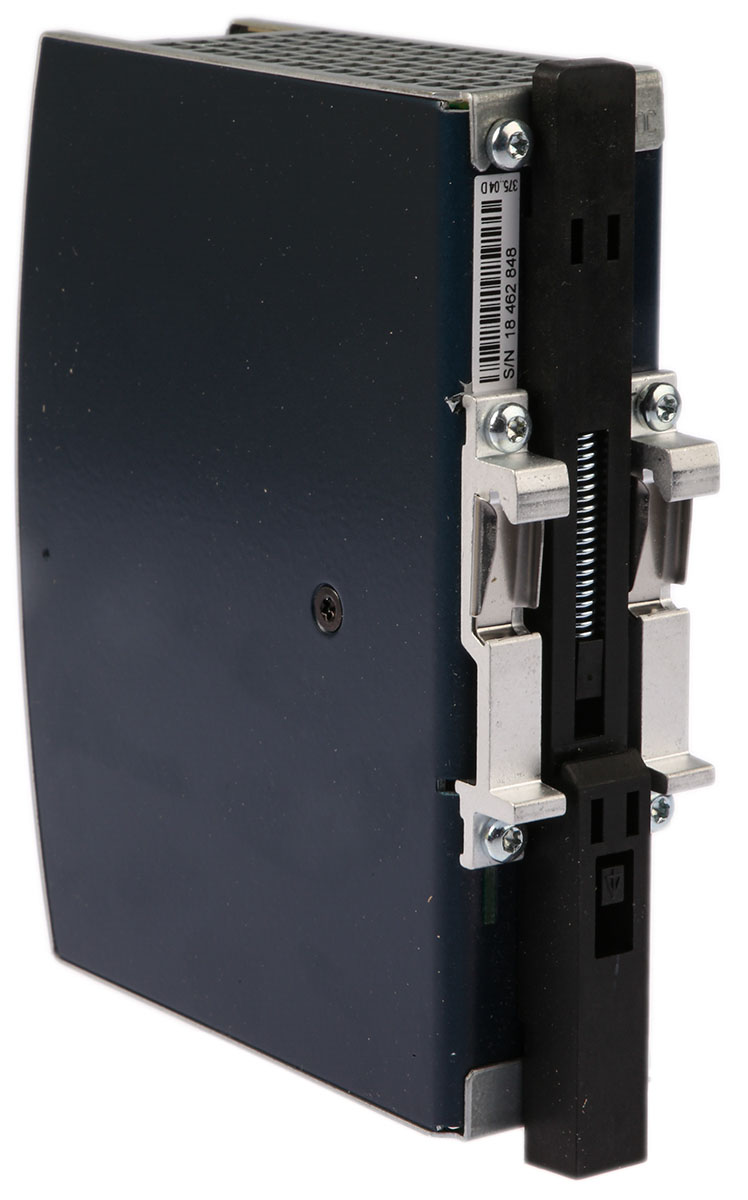

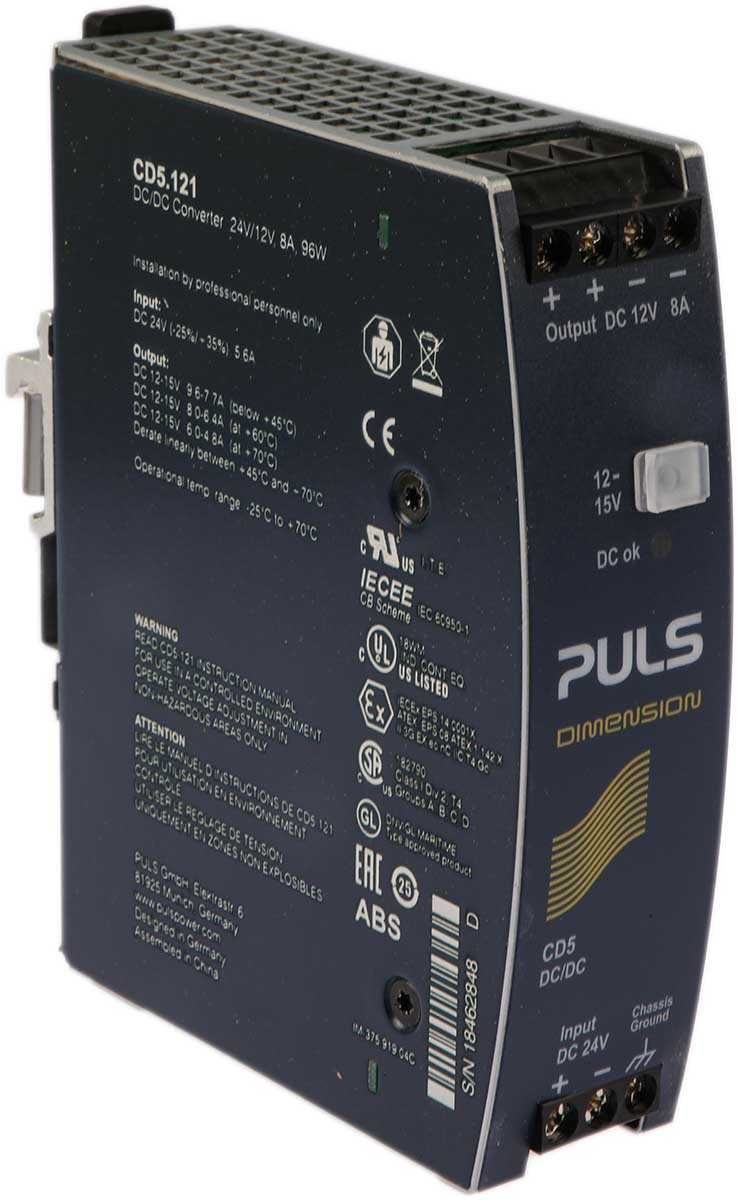

DIMENSION-CD DC-DC Converter, 12V dc/ 8A Output, 18 → 32.4 V dc Input, 96W, DIN Rail Mount, +70°C Max Temp
£ 234.86
Checking for live stock
Output Voltage:
12V dc
Input Voltage Range:
18 → 32.4 V dc
Power Rating:
96W
Input Voltage Nominal:
24 V dc
Output Current:
8A
Mounting Type:
DIN Rail Mount
Isolated:
Yes
Number of Outputs:
1
Output Voltage Adjustment Range:
12 → 15V
Isolation Voltage:
500V dc
Length:
124mm
Width:
32mm
