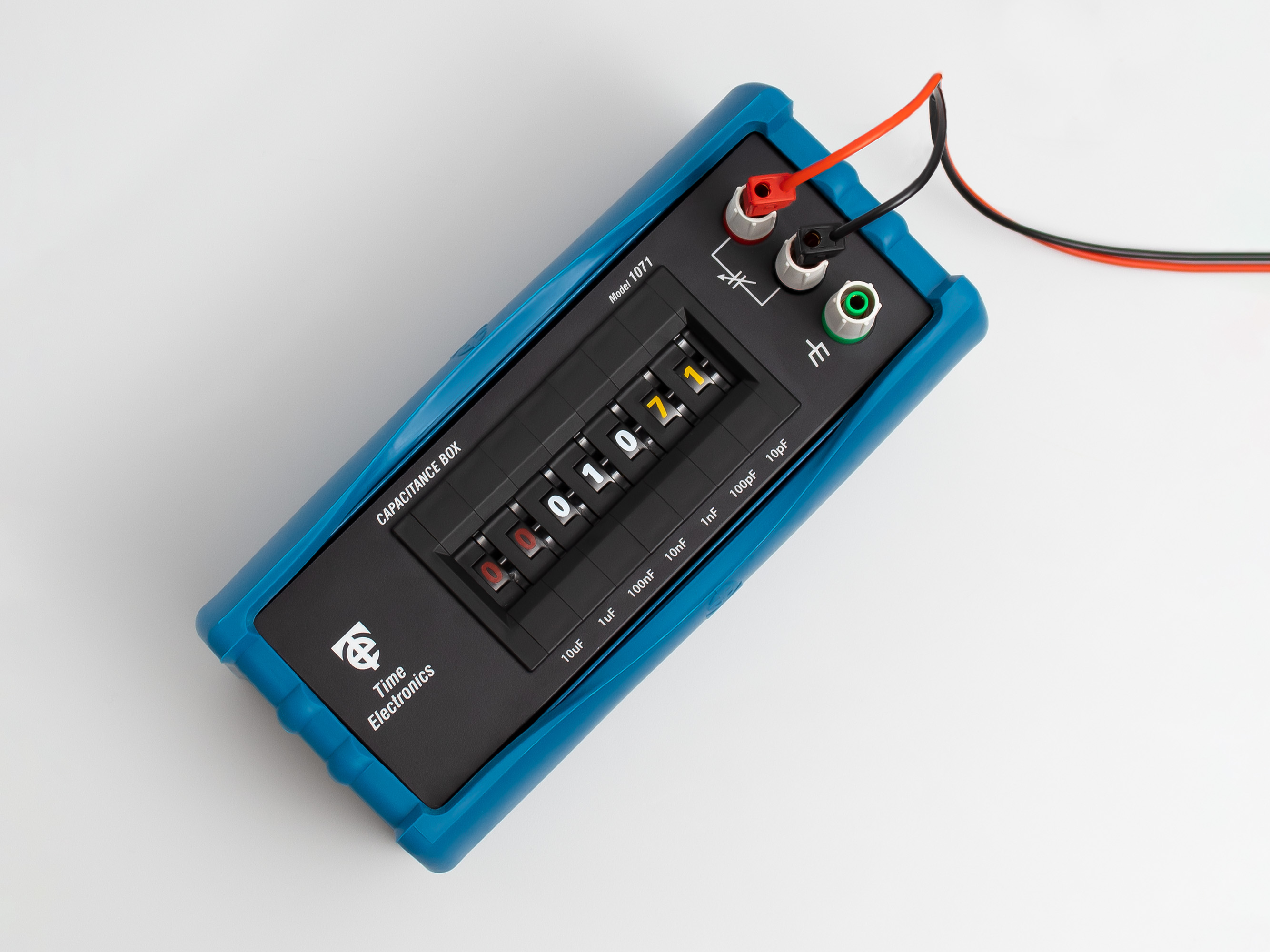

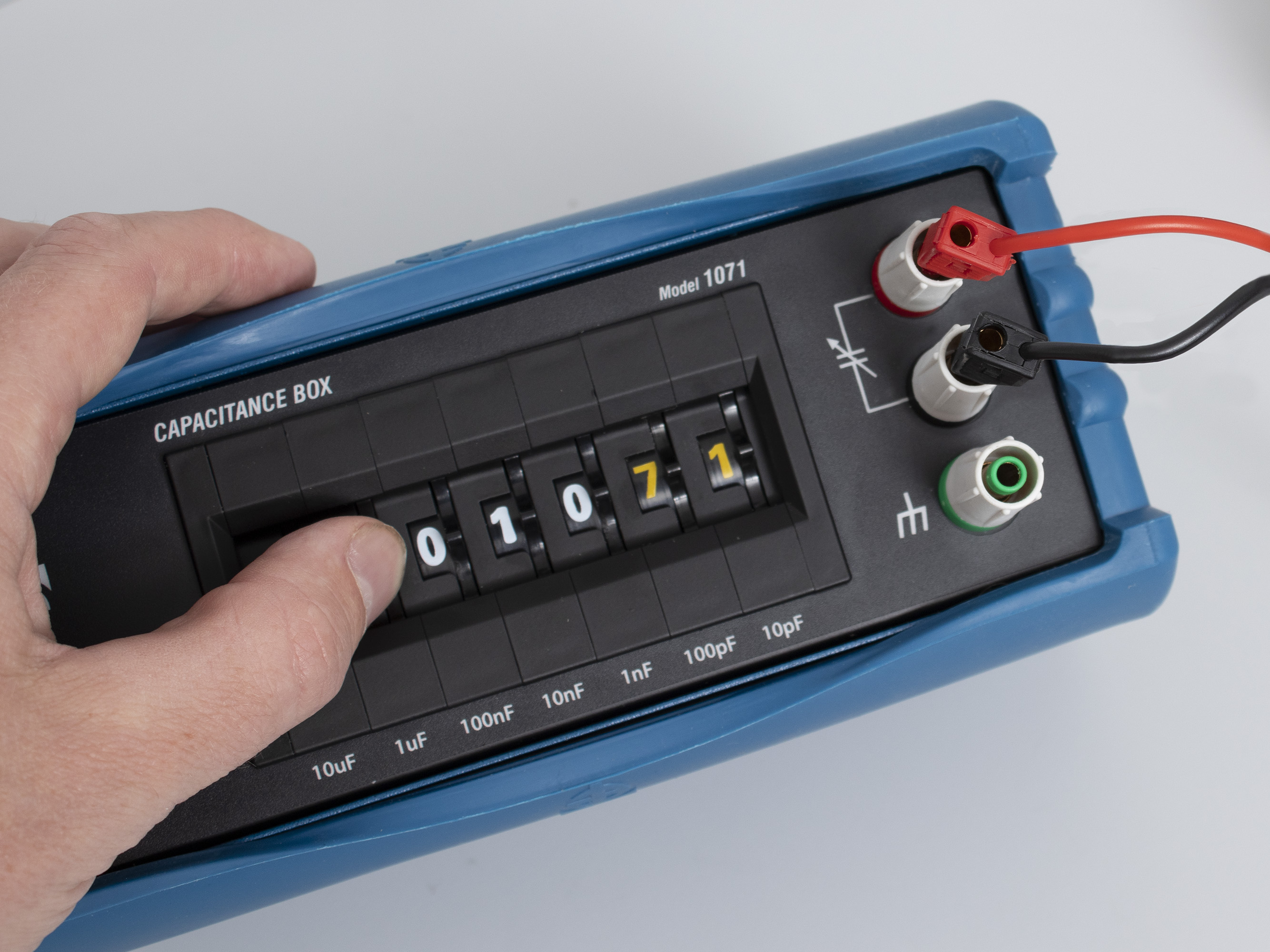

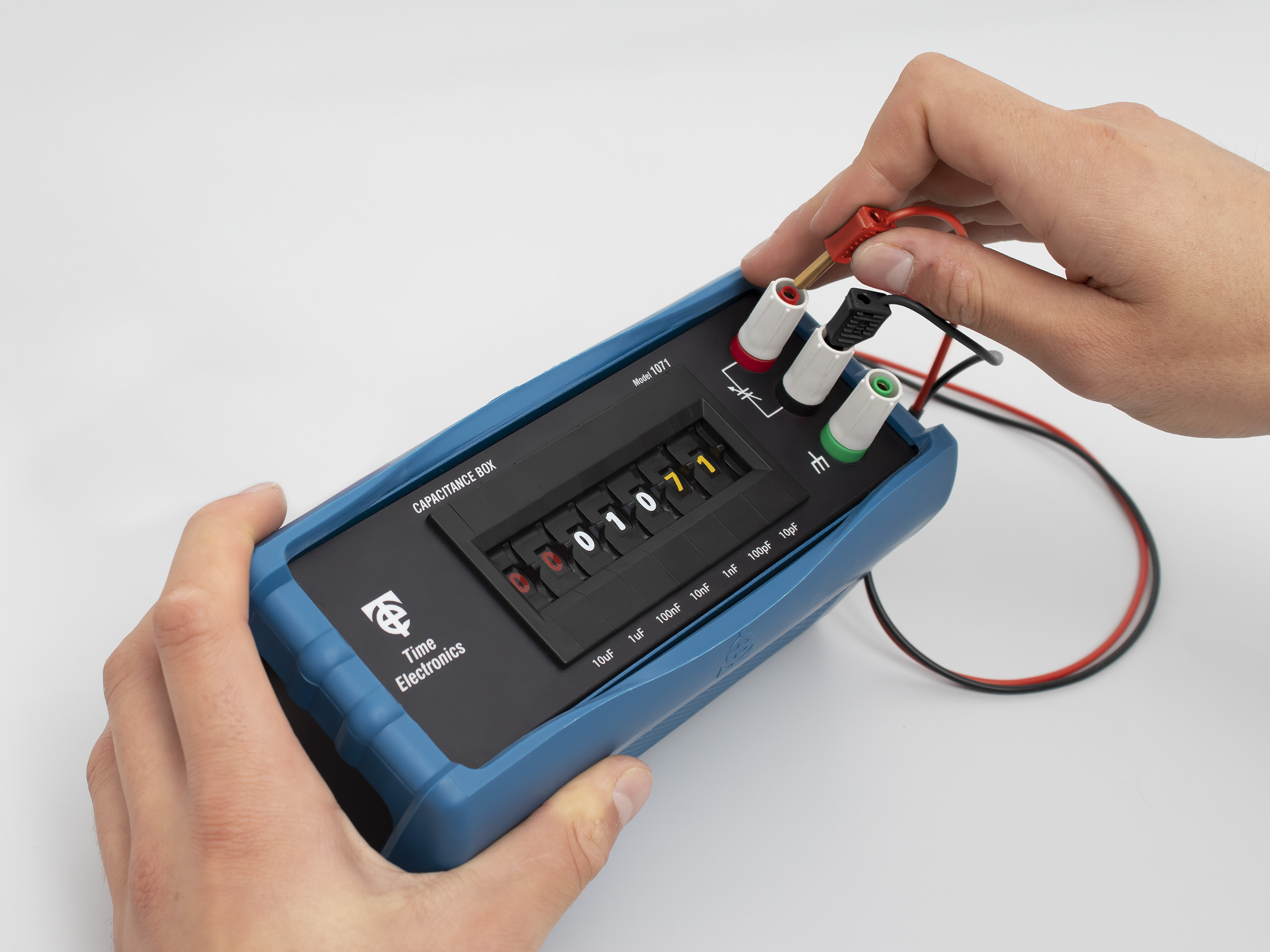

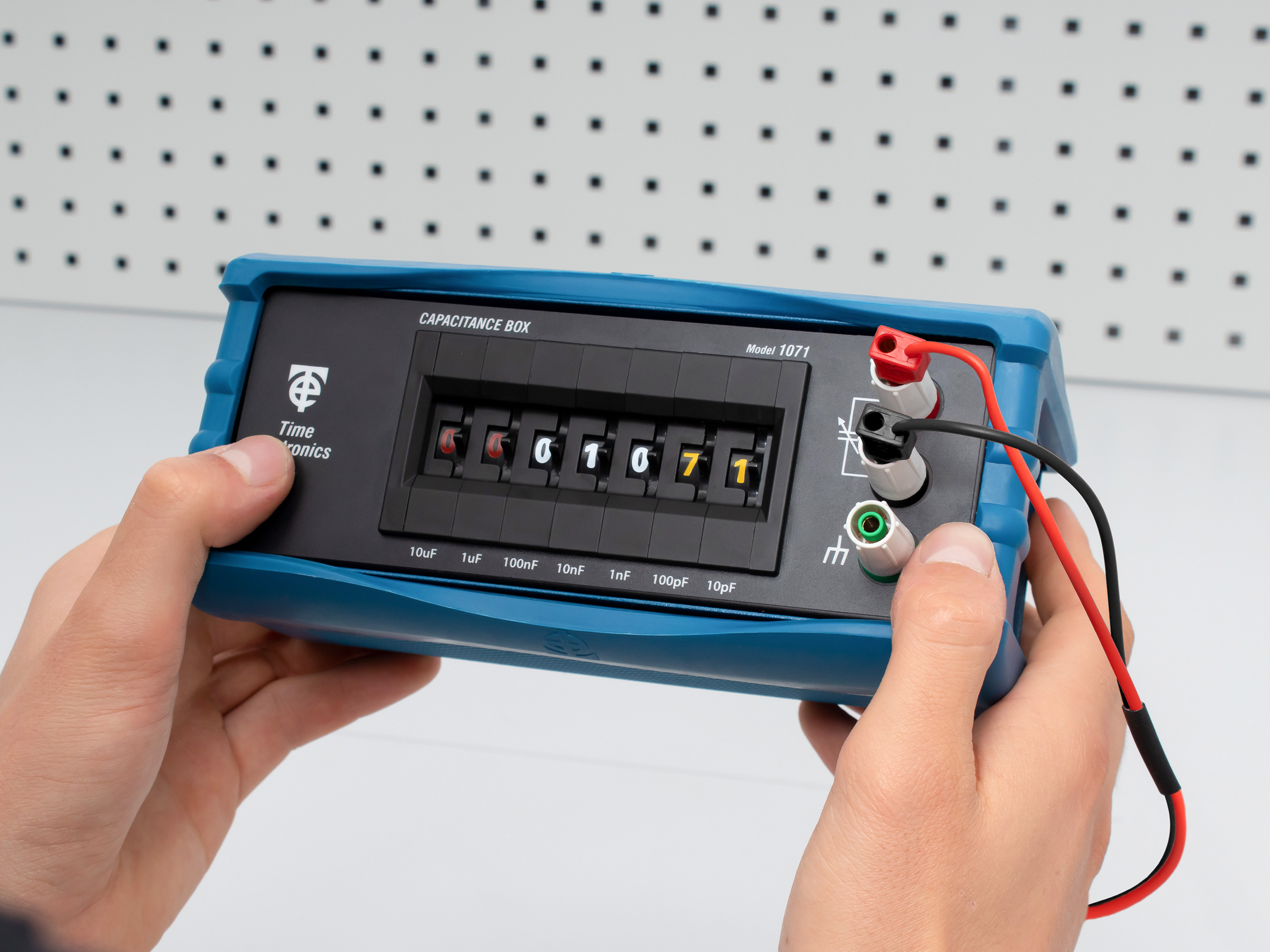

1071 Time Electronics Capacitance Decade Box

1071 7 Decade Capacitance Box Many applications in industry and education. Connection by 4mm binding posts and a third terminal is provided to enable the case to be earthed or connected to either output. High stability capacitors used throughout. 10pF to 100uF
In-line reading with colour coded digits
Bi-polar working
Compact 110 x 75 x 200mm

For more information please check the datasheets.

Time Electronics Capacitance Decade Box

Manufacturer:

Time Electronics

Manufacturer Part No:

1071

Enrgtech Part No:

ET13886930

Warranty:

Manufacturer

£ 635.0000

Checking for live stock

Decade Box Type:

Capacitance

Capacitance Resolution:

10pF

Best Capacitance Accuracy:

±1%

Residual Capacitance:

55pF

Temperature Coefficient:

±300ppm/°C

Dimensions:

110 x 200 x 75mm

Weight:

600g

Height:

75mm

Minimum Capacitance:

10pF

Maximum Capacitance:

100µF

Width:

200mm

Length:

110mm

1071 Decade Capacitance Box Data Sheet-cb58f0eb(datasheets)

1071 Decade Capacitance Box Technical Manual-cd5f4e69(datasheets)

decade-boxes-brochure-bdeb58c4(datasheets)

Time Electronics Capacitance Decade Box
