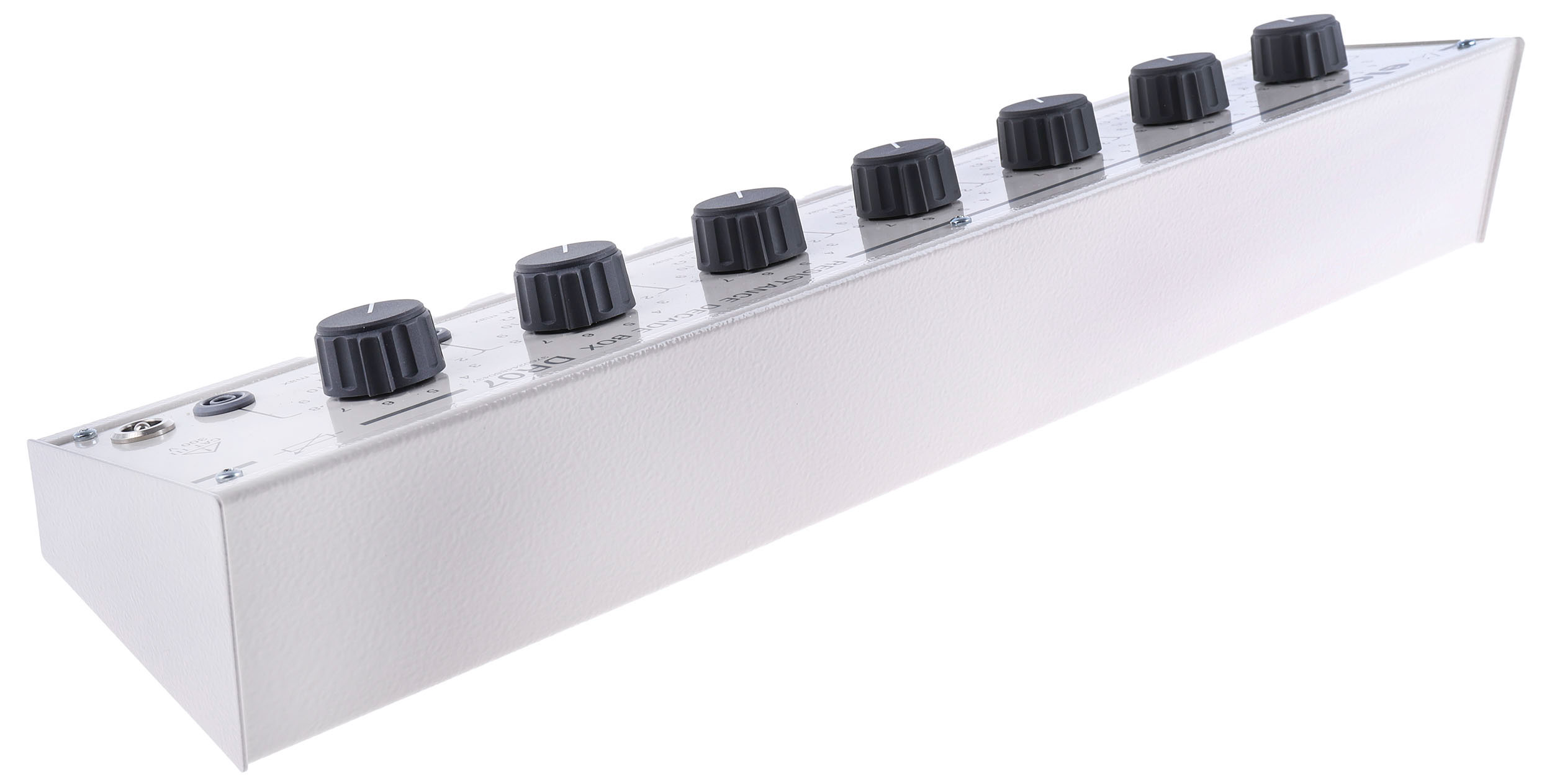

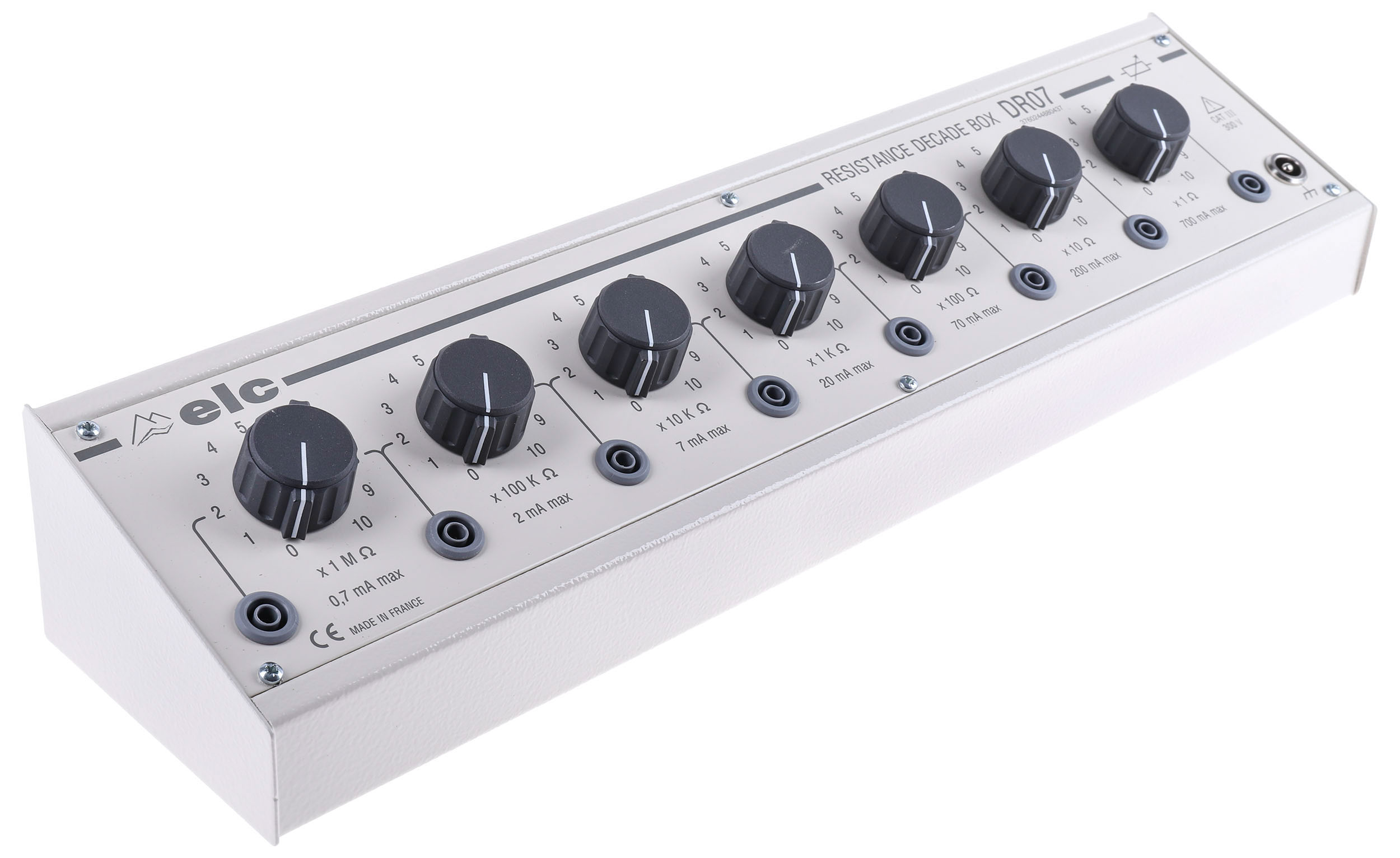

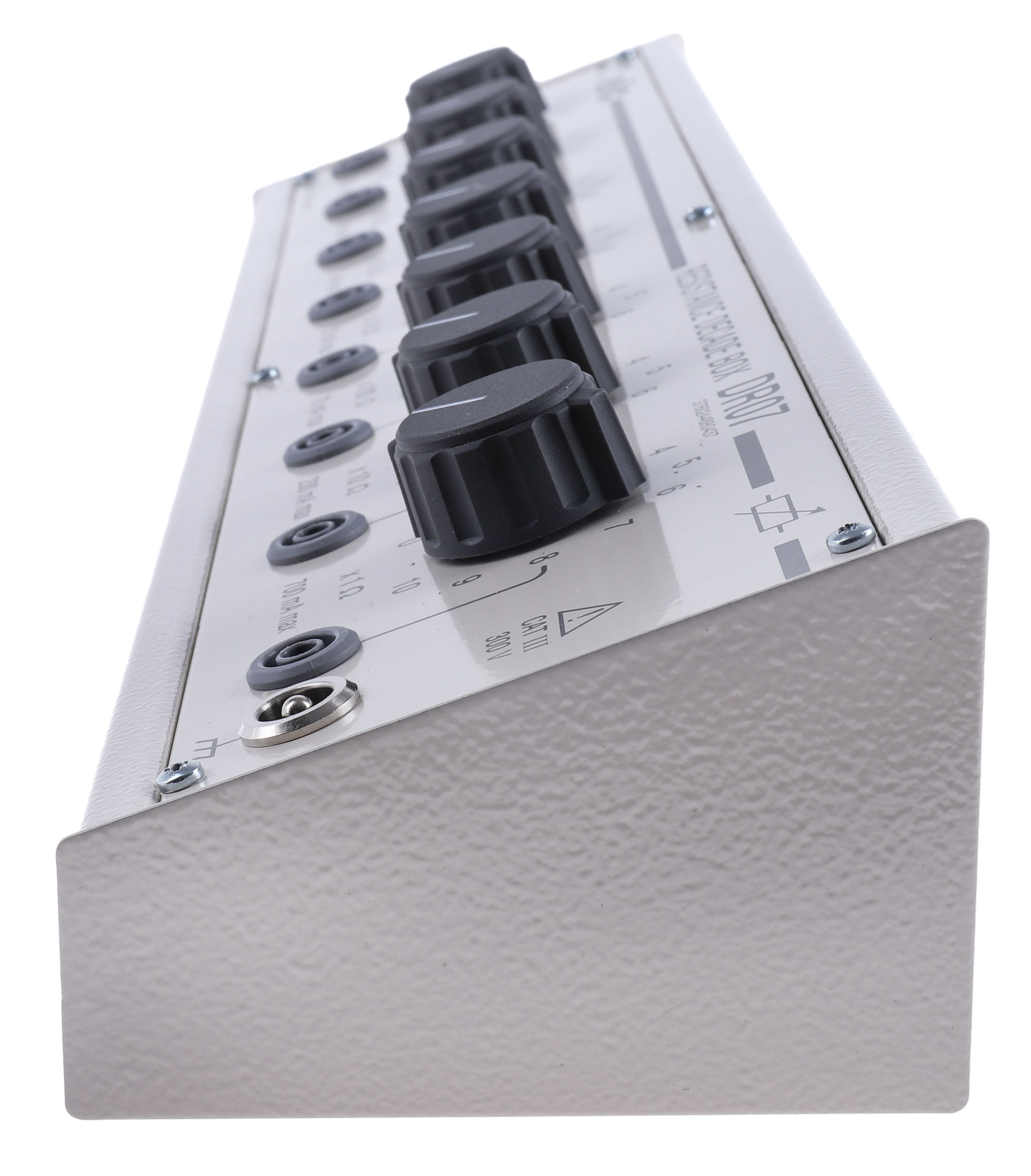

ELC Decade Resistance Box The ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact. Features and Benefits Seven decades are 1ohm, 10ohm, 100ohm, 1kohm, 10kohm, 100kohm and 1M
Outputs on each decade via 4mm safety sockets
Resistance resolution is 1ohm
Maximum resistance measurement is 11.111Mohm
Maximum power rating is 0.5W
Screen outputs (front panel and case) on safety earth socket
Good long-term stability
Length of 305mm, width of 96mm and height of 68.5mm Certifications EN 61010-1
CE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
