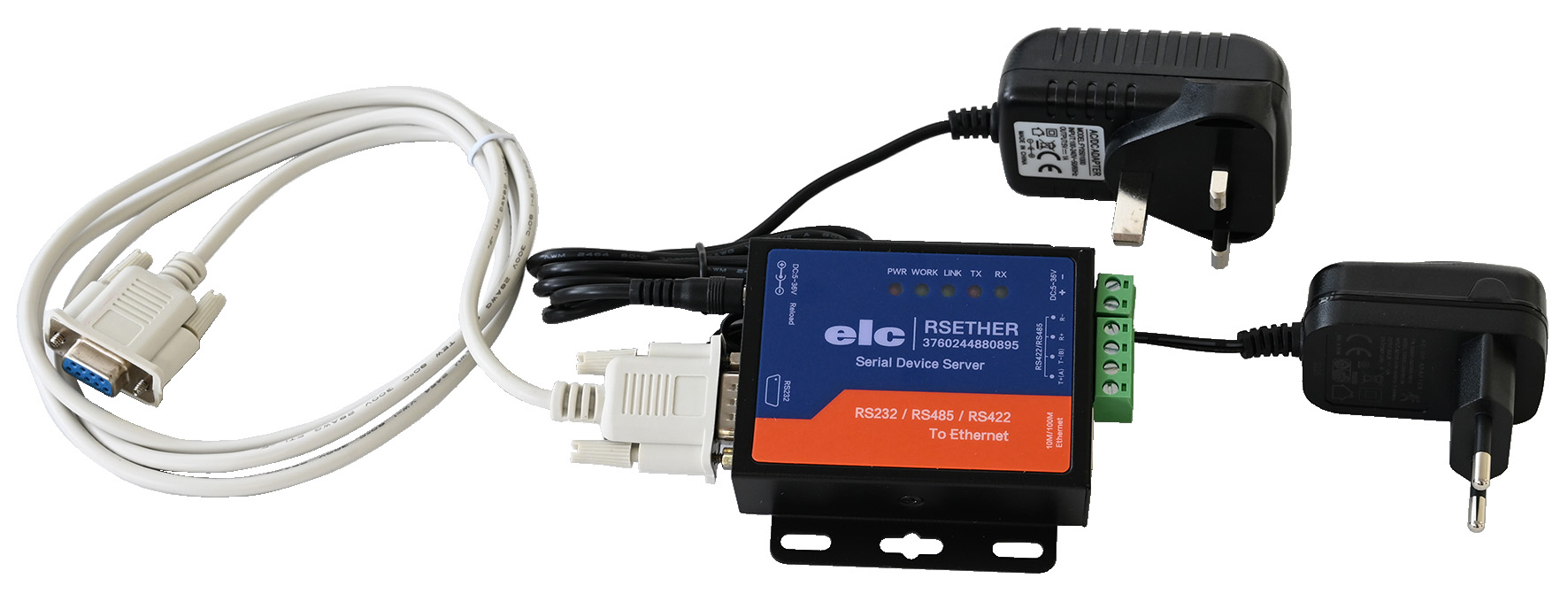

The ELC LAN adapter can be used with RS232, RS422 to Ethernet, RS485. Support DNS function<BR/>Set parameters through webpage <BR/>Upgrade firmware via network<BR/>Can work in LAN, also can work in the<BR/>Internet Can work in LAN, also can work in the Internet

ELC DIN Rail Power Supply The ELC ALE series DIN rail switch mode power supply has a universal input voltage ranging between 190VAC and 264VAC with an adjustable remote control output voltage. The remote sensing is used to overcome the voltage drop in the power lines. The rated output current is 2.5A at 12VDC output voltage. Adjustable output voltage ranging between 10VDC and 15VDC. Features and Benefits Adjustable output voltage<BR/>LED status indicator<BR/>Operation temperature ranging between -25°C and 70°C<BR/>Overload and short-circuit protection<BR/>Power rating is up to 30W<BR/>Ripple factor and noise is 3mV<BR/>Spring terminals for a 2.5 mm² wire Applications Automation and process control<BR/>Industrial controls<BR/>Power management Specifications Technology: Switch Mode<BR/>Class: II<BR/>Primary Voltage Rating: 220-240V ±10% Safety Standards EN 61010-1, EN 61010-2-201, EN 62368-1 EMC Standard EN 61000-6-2/4

Type K Compact Thermometer Hanna HI 935005 delivers highly accurate temperature measurements across a wide range using a K-type thermocouple probe. The display shows minimum and maximum temperature values taken during the measuring session helps with comprehensive record taking. Compact thermocouple thermometer with microprocessor.<BR/>The robust housing, wrist strap and wipeable keypad make this field tool indispensable.<BR/>At the touch of a button, it can display maximum and minimum temperatures or change the unit of measurement (°C or °F).<BR/>The function to switch the instrument off automatically after 45 minutes can be cancelled by the operator.<BR/>The instrument measures from -50 to +1350°C and is ideally suited to a wide range of applications, either in laboratory or industrial environments.<BR/>Comes complete with a wrist strap, three 1.5 V AA batteries and an instruction manual.

RS232 GF266 function generator 11μHz → 12MHz, protected Digital synthesis function generator featuring very high frequency accuracy (0.005%) with 4- or 10-digit display. <BR/>Direct menu to access all functions and simple adjustment of all parameters using the thumbwheel and selector buttons.<BR/>Sine distortion below 0.1%.<BR/>Cyclic ratio: adjustable from 10 → 90%.<BR/>TTL and 50 Ω output protected against reverse power surges of up to ±60 V.<BR/>Offset voltage independent of the attenuator.<BR/>Internal linear or logarithmic sweep over the full range of frequencies.<BR/>Internal and external modulation: AM, FM, FSK, PSK.<BR/>External frequency counter: 0.8 Hz → 100 MHz.<BR/>Memory stores 14 configurations and settings.

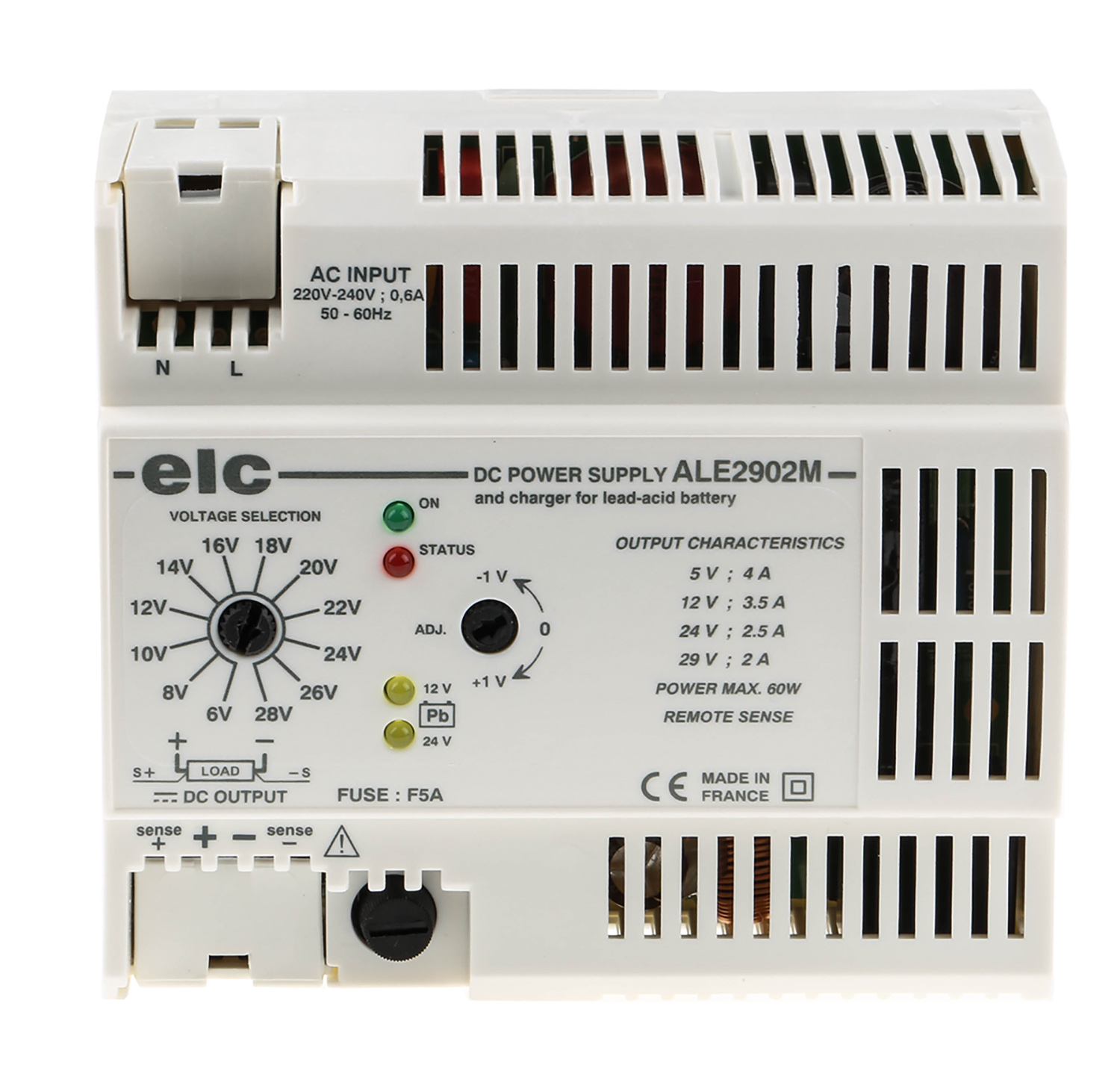

ELC Universal Regulated OEM Modular Power Supply The ELC universal regulated OEM modular power supply is 3-channel lab equipment and has a power rating of 60W. The units have stabilised output power supply and are protected against short circuit protection and reverse polarity. The output voltage rating ranging between 5V to 29V and an output current rating of 4A. <BR/>Inclusions:<BR/>EU plug and UK plug adapter. Features and Benefits Mini cut-out power supply, also serving as a 12V or 24V lead acid battery charger<BR/>Battery reverse polarity protection by output fuse<BR/>Charger position and operation indicator<BR/>Output voltage adjustable from 5V to 29V in 2V increments (12 positions) and fine adjustment of ±1V<BR/>Floating outputs on pull-out screw terminals for 2.5 mm2 wires<BR/>Correction of the voltage drop in the wires through remote sensing<BR/>Cover on input output terminal block<BR/>DIN rail power supply<BR/>Green, yellow and red LED indicator Specifications Technology: Switch Mode<BR/>Class: II<BR/>Primary Voltage Rating: 220-240V ±10% Safety Standards EN 61010-1, EN 61010-2-201, EN 62368-1 EMC Standard EN 61000-6-2/4

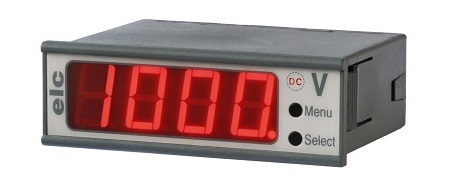

The ELC 3.5 digits LED display voltmeter configurable, DC and AC true rms very compact , 14 mm LED for easy reading, quick installation without tools, disconnect screw terminal blocks. Supply voltage 2 V, 20 V, 200 V, 500 V<BR/>Depth 46mm<BR/>Analogue Effect Digit only<BR/>Meter Type Voltmeter<BR/>Mounting Type Panel meter<BR/>IP Rating IP 55

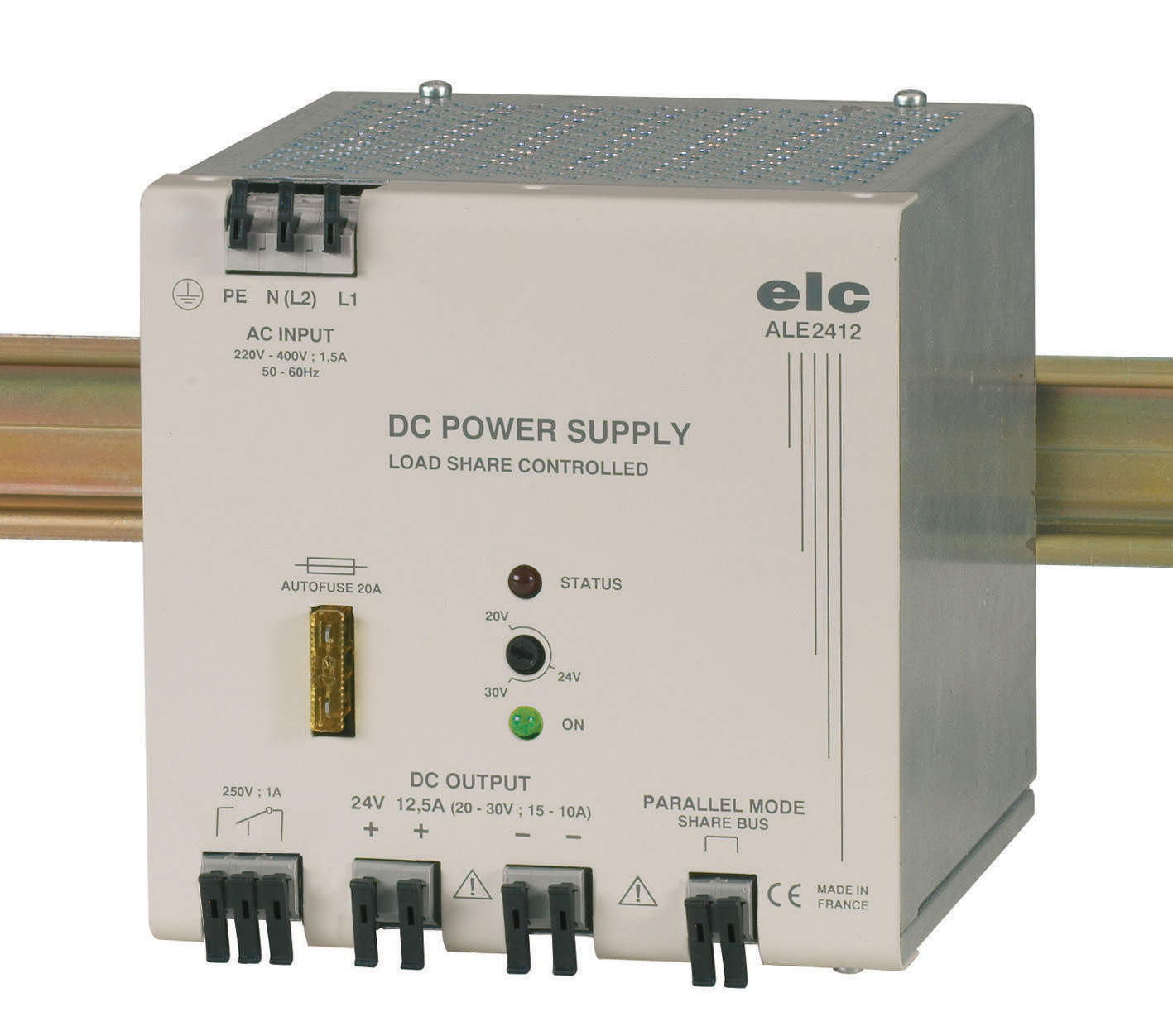

The ELC constant output power is 280 W,it gives protection against short circuits by current limit, against primary circuit overcurrent, by internal fuse against output overload by disruption, load share controller on dual spring pluggable terminal blocks with for 1.3 mm² wire. Maximum Temperature +70 °C<BR/>Input Voltage 198 → 440 V ac<BR/>Number of Outputs 1<BR/>Weight 1,03 Kgr<BR/>Protection Features Against short circuits by current limit Against primary circuit overcurrent, by internal fuse Against output overload by disruption<BR/>Width 65mm<BR/>Load Regulation <10mV<BR/>Efficiency +/- 1%<BR/>Minimum Temperature -25°C<BR/>Line Regulation <1mV<BR/>Height 124 mm<BR/>Depth 135mm<BR/>Type Switching PSU, Low ripple<BR/>Hazardous Area Certification SAFETY EN 61010-1, EN61010-2-201 and EN 62368-1 EMC : EN 61000-6-2 and EN 61000-6-4

The ELC high voltage power supply optional power supplies for LED2472 high voltage galvanic insulation 4KV,input from 9 to 28 volts AC or 8 to 40 volts DC. Low tension (galvanic insulation 4 KV)<BR/>Input from 9 to 28 V AC or from 8 to 40 V DC

The ELC high voltage power supply optional power supplies for LED2472 high voltage galvanic insulation 4KV,input from 9 to 28 volts AC or 8 to 40 volts DC,40 to 350 v, RoHS. Low tension (galvanic insulation 4 KV)<BR/>Input from 9 to 28 V AC or from 8 to 40 V DC

The ELC 100mV Class-1 Shunts with leads is connected to a digital or moving-coil analogue panel meter and 1% accuracy rated, this shunt is designed to be used with digital or analogue panel meters. SH10020 20 A, 100 mV shunt<BR/>0, 5 class, DIN rail mounting

ELC Decade Resistance Box The ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact. Features and Benefits Six decades are 1ohm, 10ohm, 100ohm, 1kohm, 10kohm and 100kohm<BR/>Outputs on each decade via 4mm safety sockets<BR/>Resistance resolution is 1ohm<BR/>Maximum resistance measurement is 1.111Mohm<BR/>Maximum power rating is 0.5W<BR/>Screen outputs (front panel and case) on safety earth socket<BR/>Good long-term stability<BR/>Length of 305mm, width of 96mm and height of 68.5mm Certifications EN 61010-1<BR/>CE certified <BR/>ANSI/ESD S20.20:2014 <BR/>BS EN 61340-5-1:2007

ELC Decade Resistance Box The ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact. Features and Benefits Five decades are 1ohm, 10ohm, 100ohm, 1kohm and 10kohm<BR/>Outputs on each decade via 4mm safety sockets<BR/>Resistance resolution is 1ohm<BR/>Maximum resistance measurement is 111.11kohm<BR/>Maximum power rating is 0.5W<BR/>Screen outputs (front panel and case) on safety earth socket<BR/>Good long-term stability<BR/>Length of 305mm, width of 96mm and height of 68.5mm Certifications EN 61010-1<BR/>CE certified <BR/>ANSI/ESD S20.20:2014 <BR/>BS EN 61340-5-1:2007
