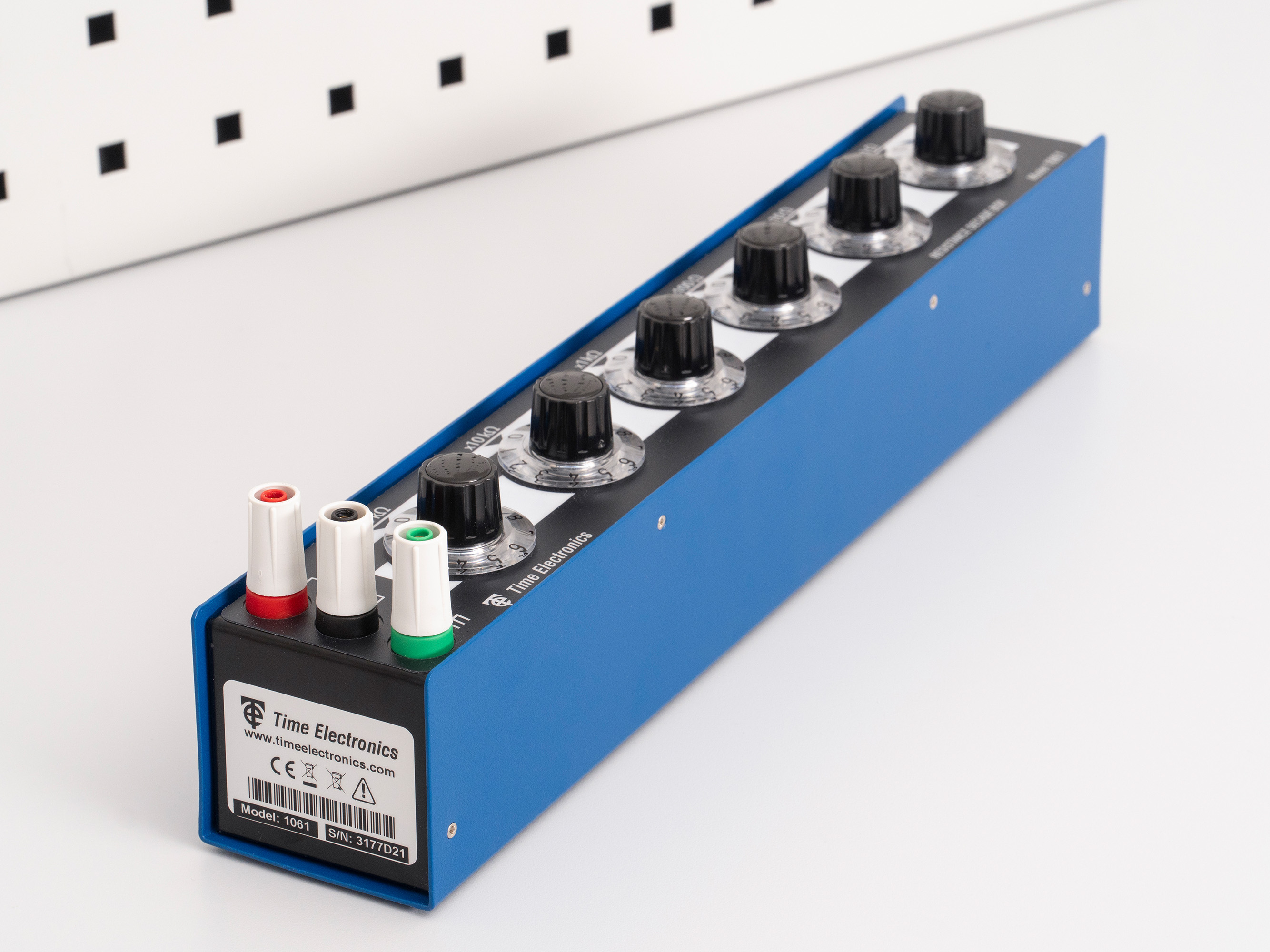

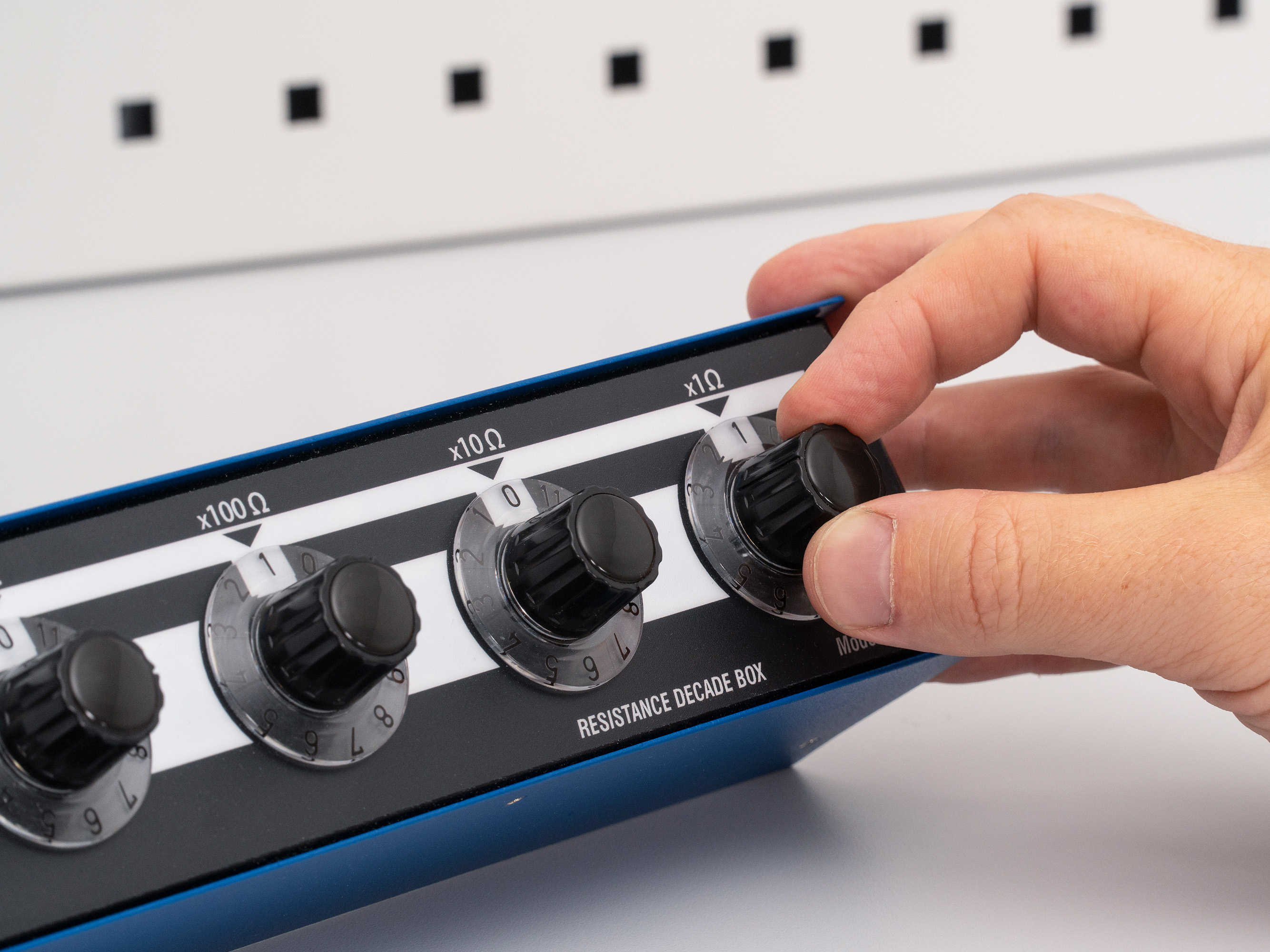

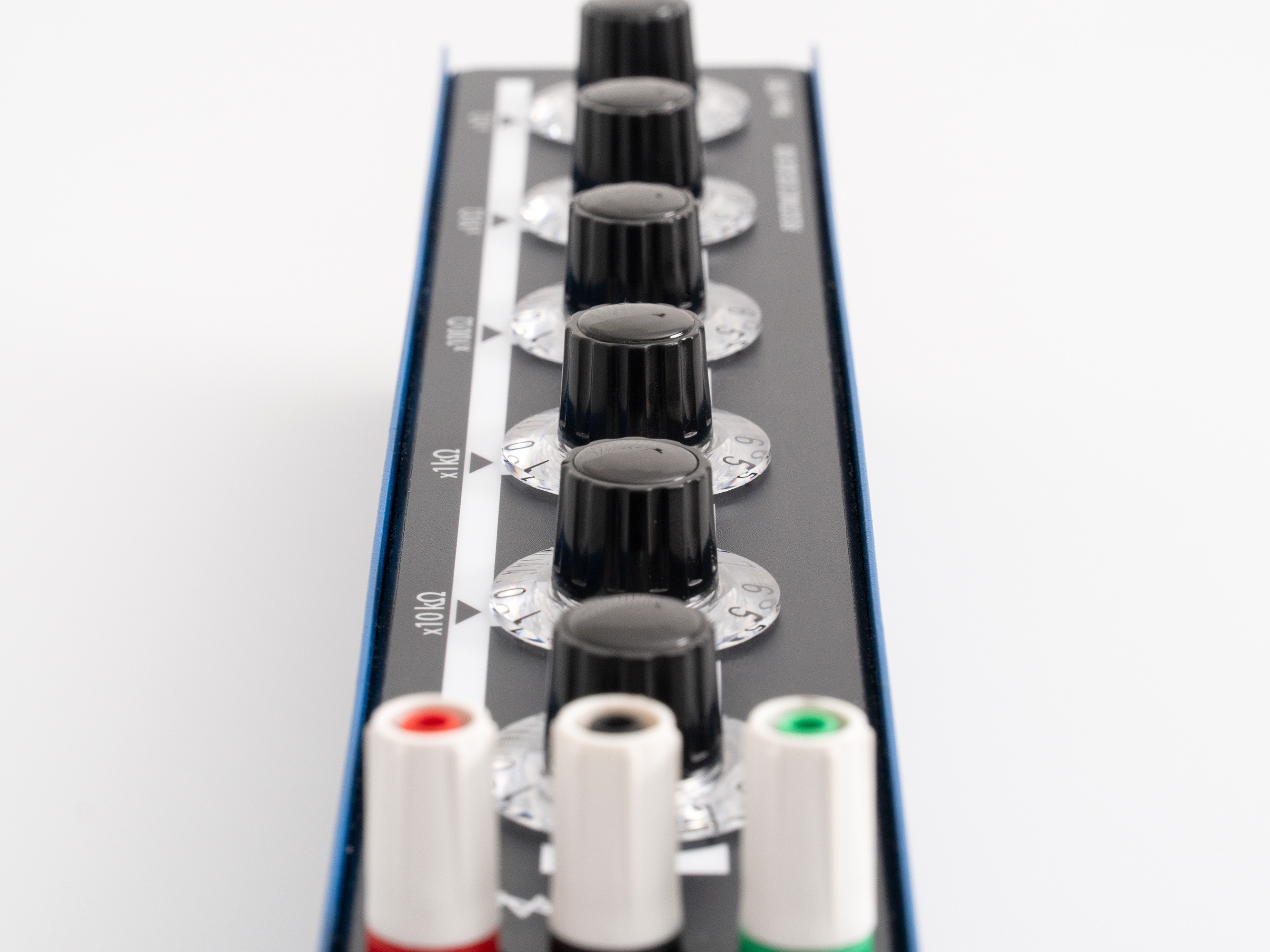

Time Electronics Model 1061 Resistance Decade Box Time Electronics 1061 is a low-cost, robust resistance decade box designed to meet requirements for educational and industrial applications. Metal film resistors with a 0.75W power rating are used throughout, conferring the advantages of stability and low temperature coefficient. Six large switches with clear numerical readout enhance ease-of-use. Slim-line design minimises take-up of bench space. 1% accuracy and wide range facilitate production or select-on-test usage. The case provides complete electrostatic screening. Resistance is selected by dialling the required value, using the rotary switches. This enables precise setting with clear unambiguous indication. Number of decades = 6
Range/resolution 1.2 MΩ / 1Ω steps
Accuracy ±1%
In-line readout
Low temperature coefficient, 100 ppm/°C
Residual resistance <150 mΩ
Power rating 0.75W per resistor
Voltage Rating: Maximum 300 V DC/AC RMS
Mechanically and electrically robust

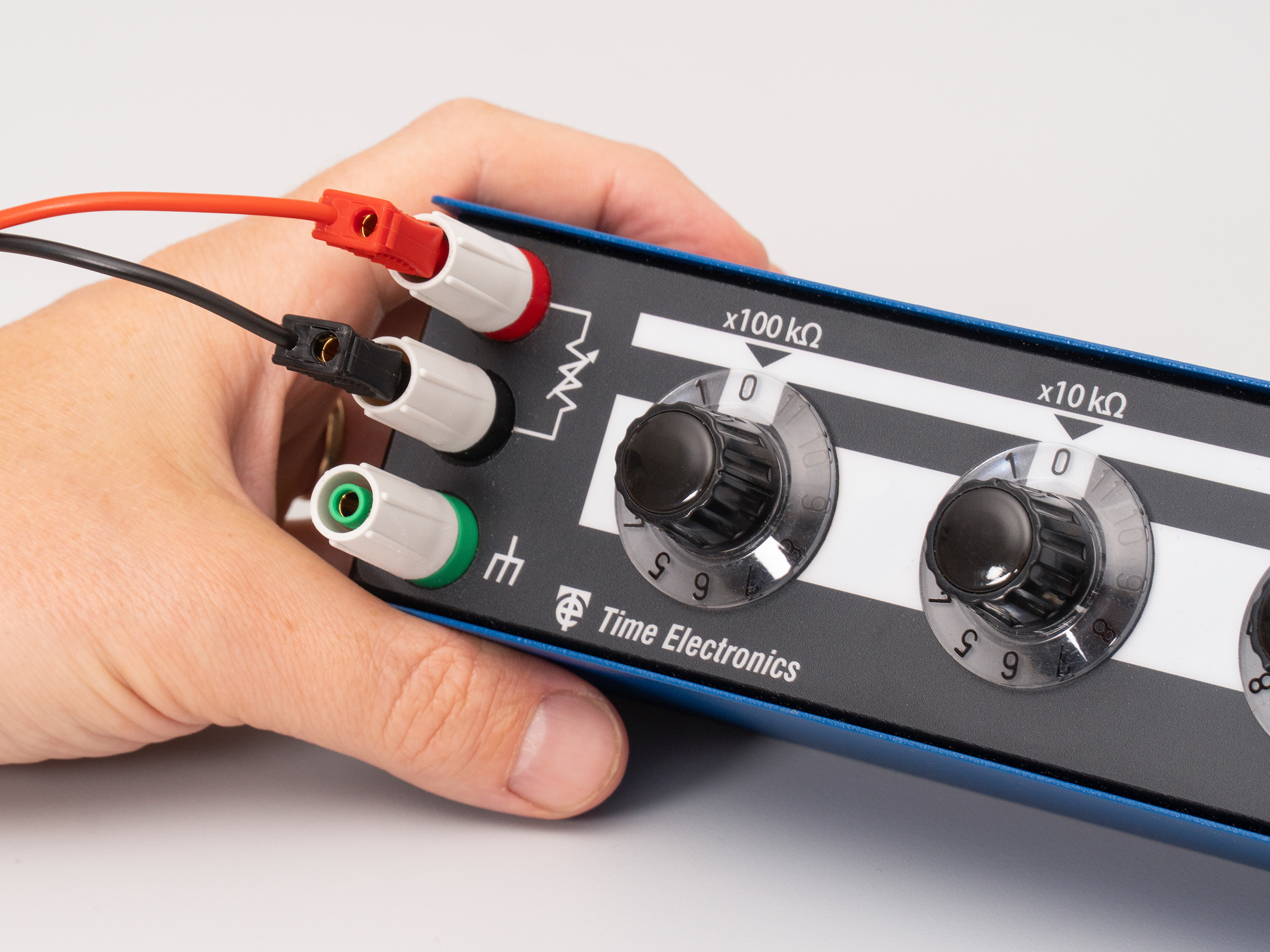

Front panel safety terminals (compatible with 4mm shrouded plugs, standard plugs, bare wires, spade terminals)
Fully screened
Dimensions 355(W) x 63(H) x 82(D) mm, weight 0.75kg
