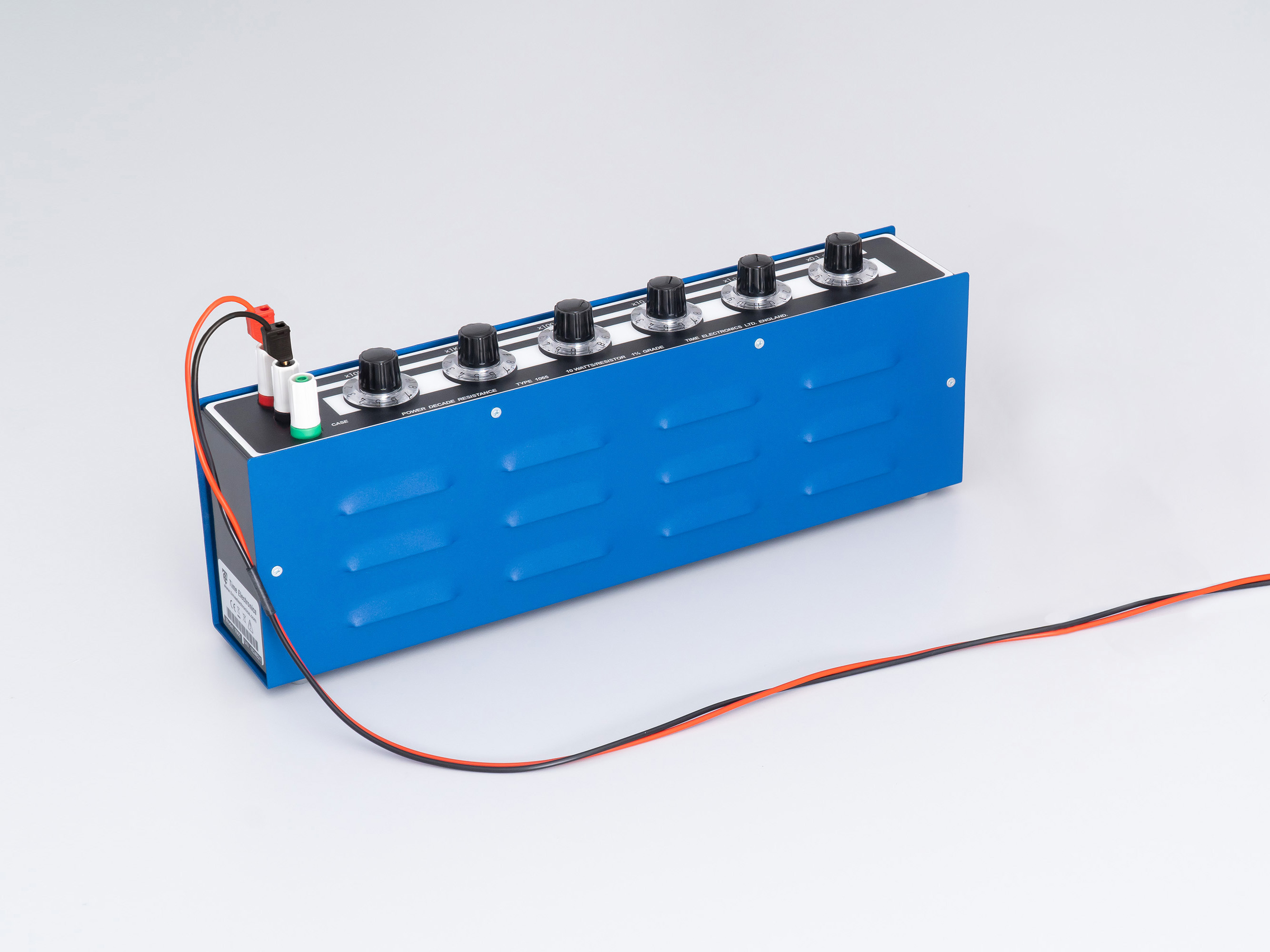

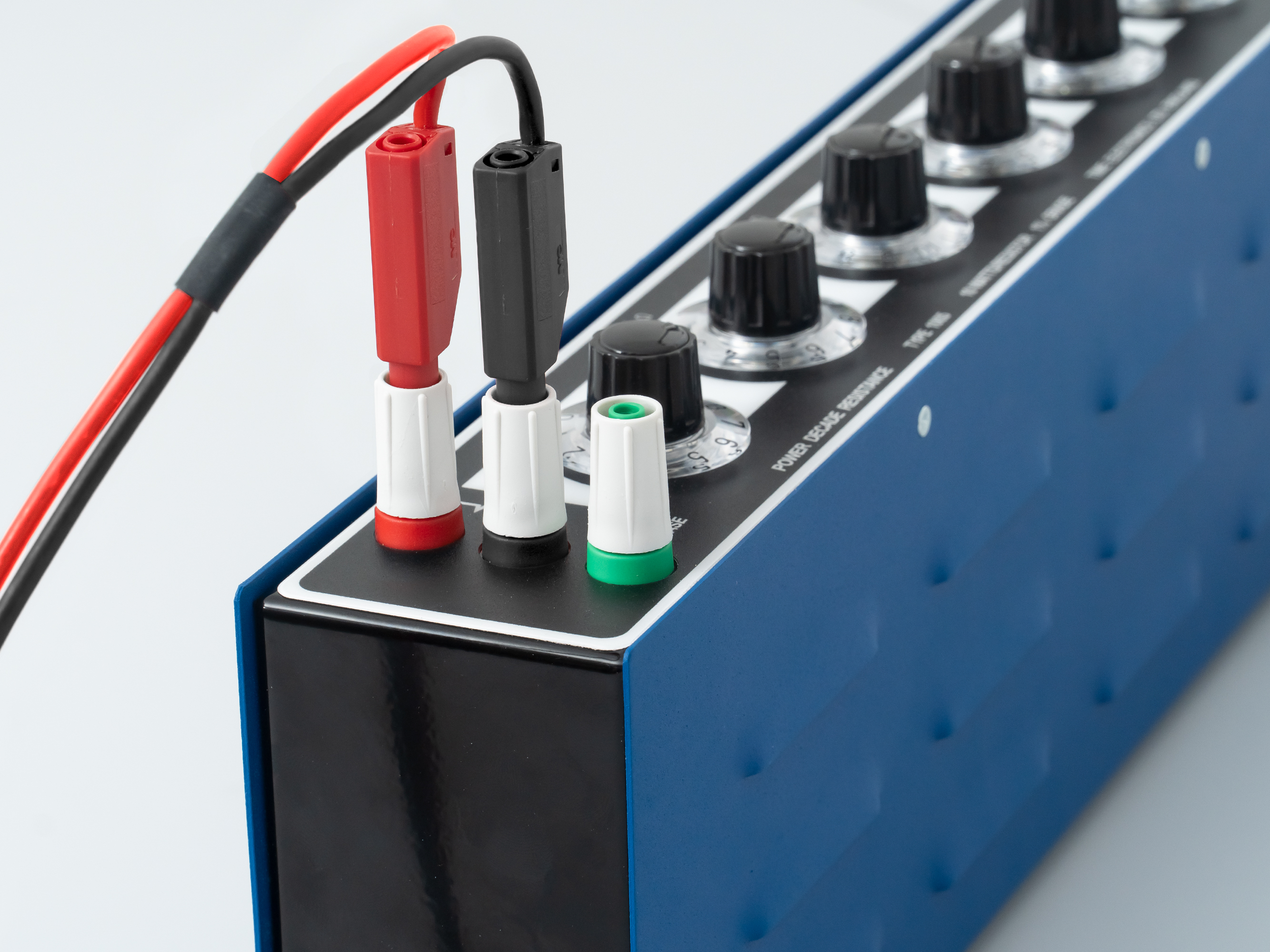

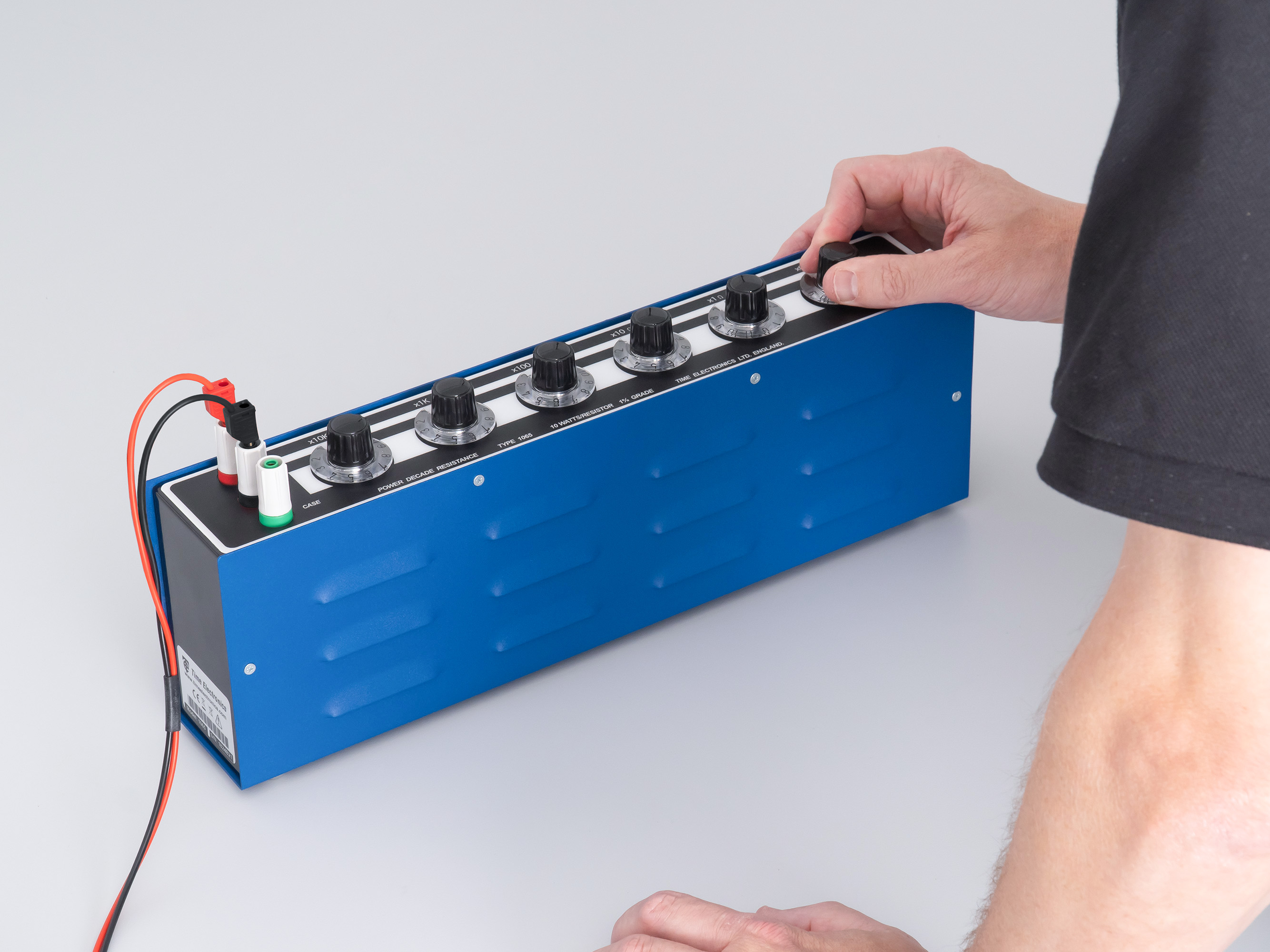

1065 Time Electronics Resistance Decade Box, Resistance Resolution 0.1Ω, Absolute Maximum Resistance Measurement 120kΩ

1065 Precision Power Resistance Load Box 10W per resistor - 100W max dissipation
500V maximum working voltage
In-line readout
Resolution 0.1Ω
Mechanically and electrically robust
Fully screened

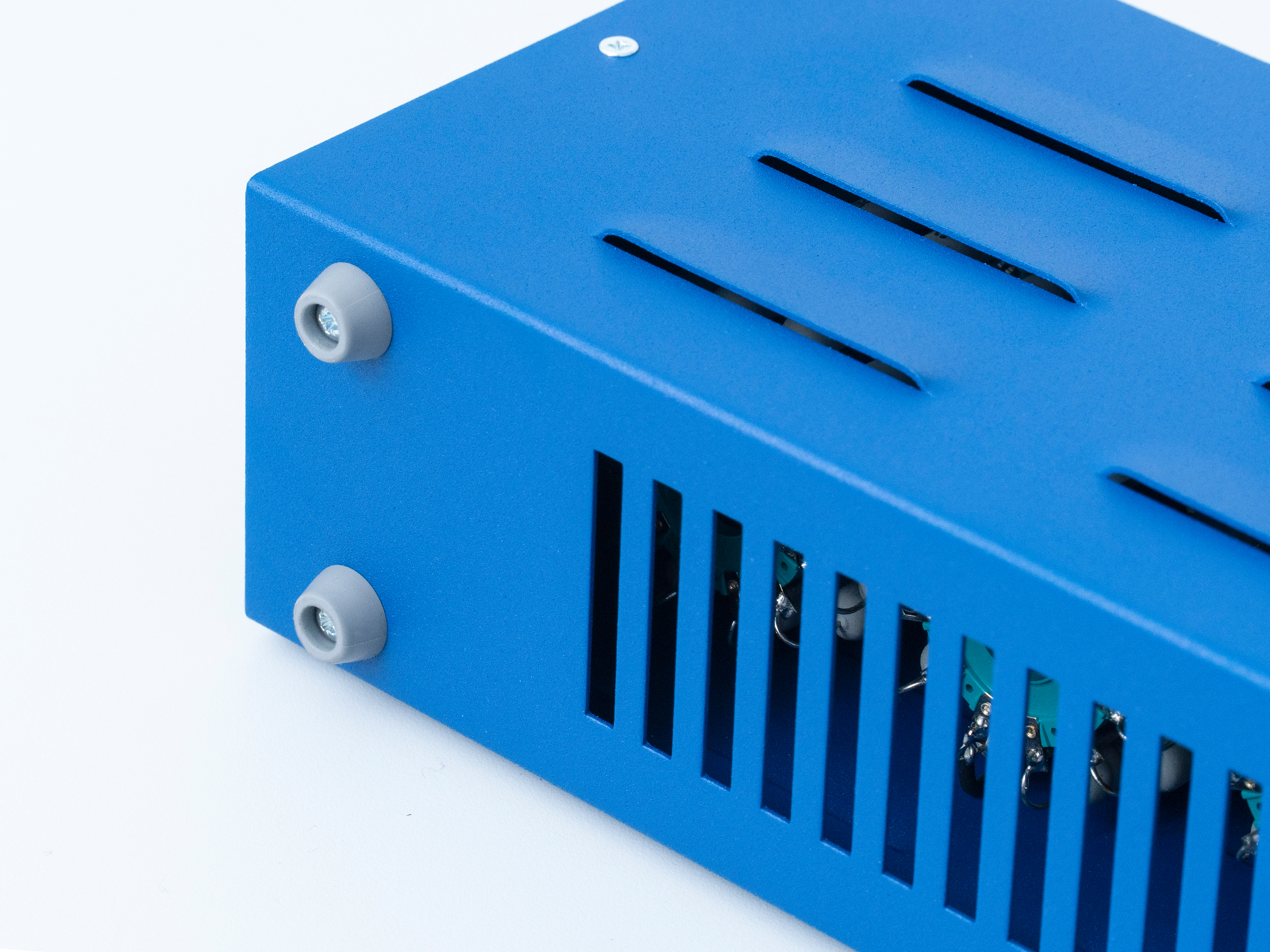

Housed in compact, easily transportable, well-ventilated all-metal case

For more information please check the datasheets.

Time Electronics Resistance Decade Box, Resistance Resolution 0.1Ω, Absolute Maximum Resistance Measurement 120kΩ

Manufacturer:

Time Electronics

Manufacturer Part No:

1065

Enrgtech Part No:

ET14128404

Warranty:

Manufacturer

£ 1100.0000

Checking for live stock

Decade Box Type:

Resistance

Resistance Resolution:

0.1Ω

Best Maximum Resistance Accuracy:

±5%

Best Minimum Resistance Accuracy:

±1%

Residual Resistance:

20mΩ

Power Rating:

10W

Temperature Coefficient:

±200ppm/°C

Dimensions:

150 x 390 x 60mm

Absolute Maximum Resistance Measurement:

120kΩ

Height:

60mm

Weight:

2kg

Length:

150mm

1065 Precision Power Resistance Box Data Sheet-2760865d(datasheets)

1065 Power Resistance Box Technical Manual-8981f631(datasheets)

decade-boxes-brochure-bdeb58c4(datasheets)
