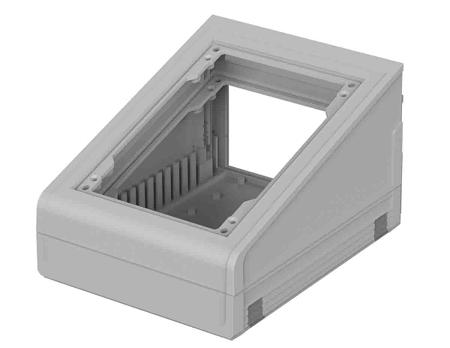

Bopla Ultrapult Open Area Consoles Introducing the Ultrapult console enclosures from Bopla. The Ultrapult range is an excellent choice to house PCBs, electronic and electrical components. They are made of ABS and presented in a light grey colour similar to (RAL7035). These desktop enclosures are the ideal solution for easy operation in applications such as telecommunications systems and are completely customisable to suit your needs.

Ultrapult consoles are enclosures with an open area and are typically purchased with front and rear panel accessories. Front & Rear Panel Accessories A range of front & rear panel accessories for Ultrapult consoles. The front panels are equipped with soldered pins for interior fitting while the rear panel sections slide into console. These panels are 2 mm thick and natural-coloured anodised aluminium. Features and Benefits • ABS material
• Designed to receive an aluminium front & rear panels
• Two-part housings are assembled using M3 screws on the underside
• Bottom section for mounting cards on mounting bosses designed to receive self-tapping screws
• Wall mountable
• Colour: Top & Bottom = Light grey, similar to RAL 7035, Bezel = agate grey RAL 7038
• IP 40/ DIN EN 60529 Console External Dimensions • L.290.9 x D.198.9 x H.120.4 mm = RS stock no: 161-9330
• L.157.5 x D.198.9 x H. 120.4 mm = RS stock no: 161-9302 Front Panel Accessories
• MPN. 29620180 = RS stock no: 161-9346; for use with MPN. 45620185 = RS stock no: 161-9330
• MPN. 29320180 = RS stock no: 161-9324; for use with MPN. 45320185 = RS stock no: 161-9302

Rear Panel Accessories
• MPN. 56031800 = RS stock no: 119-9123; for use with MPN. 45320185 = RS stock no: 161-9302
• MPN. 56061800 = RS stock no: 119-9139; for use with MPN. 45620185 = RS stock no: 161-9330 Typical Applications • Food and Beverage Industry
• Telecommunication Industry
• Cable/Wire Management
• IT (IP) Ingress Protection and what it means IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. FAQ's

Can the enclosure be used outside?
These desktop enclosure have an IP40 rated, no protection from liquids.

Whats in the box?
• Console, 4 screw covers, 4 rubber feet, 4 screws
