Digilent Breadboard Adapter

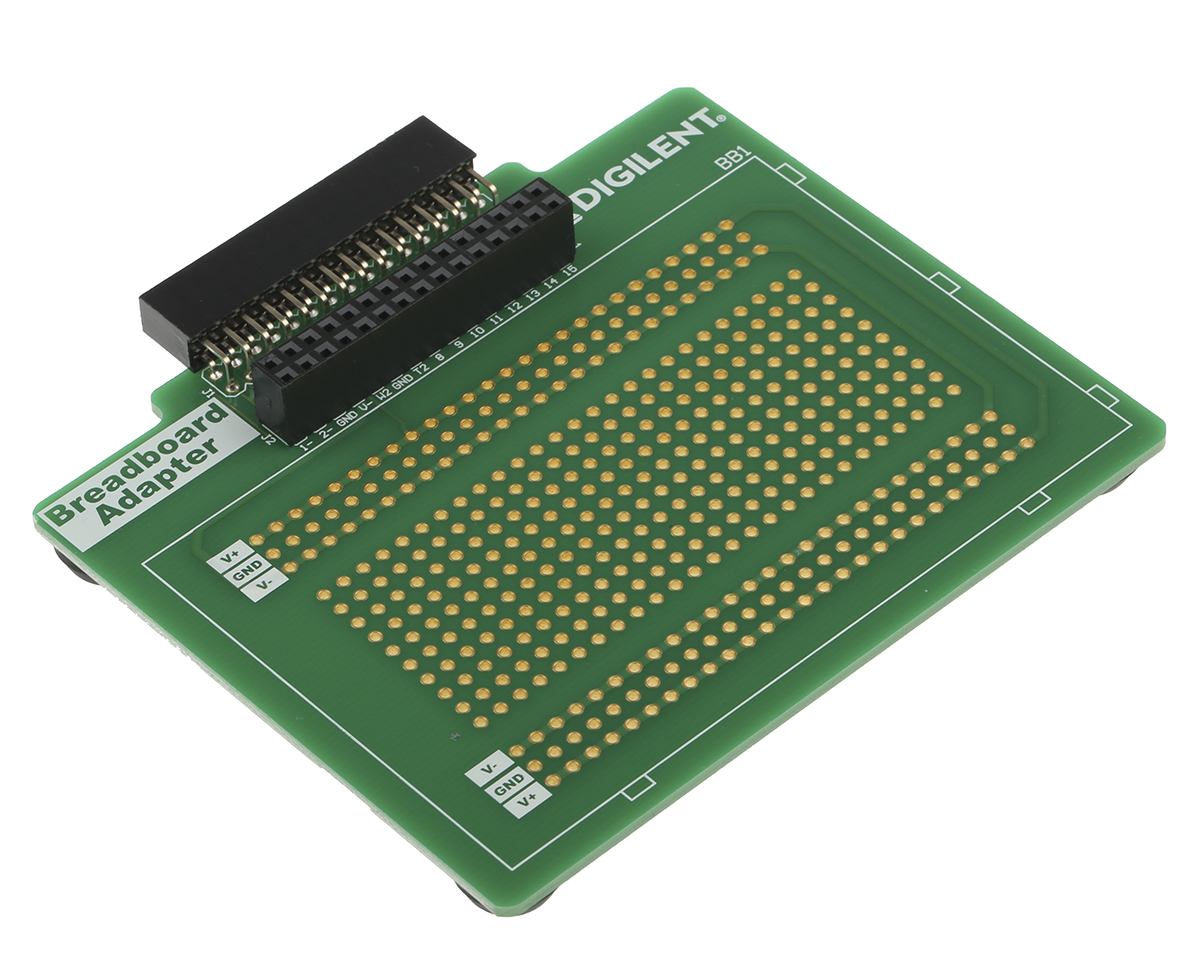

The Digilent breadboard adapter is intended to be used with the Analog Discovery tool to provide a prototyping surface with a secure connection. It provides a female header to pass through all the connections from the Analog Discovery 2 as well as a prototyping surface. The PCB provides two power rails directly routed from the V+ and V- pins on the Analog Discovery. The components and wires can be soldered to the prototyping surface and power rails.
Features and Benefits:

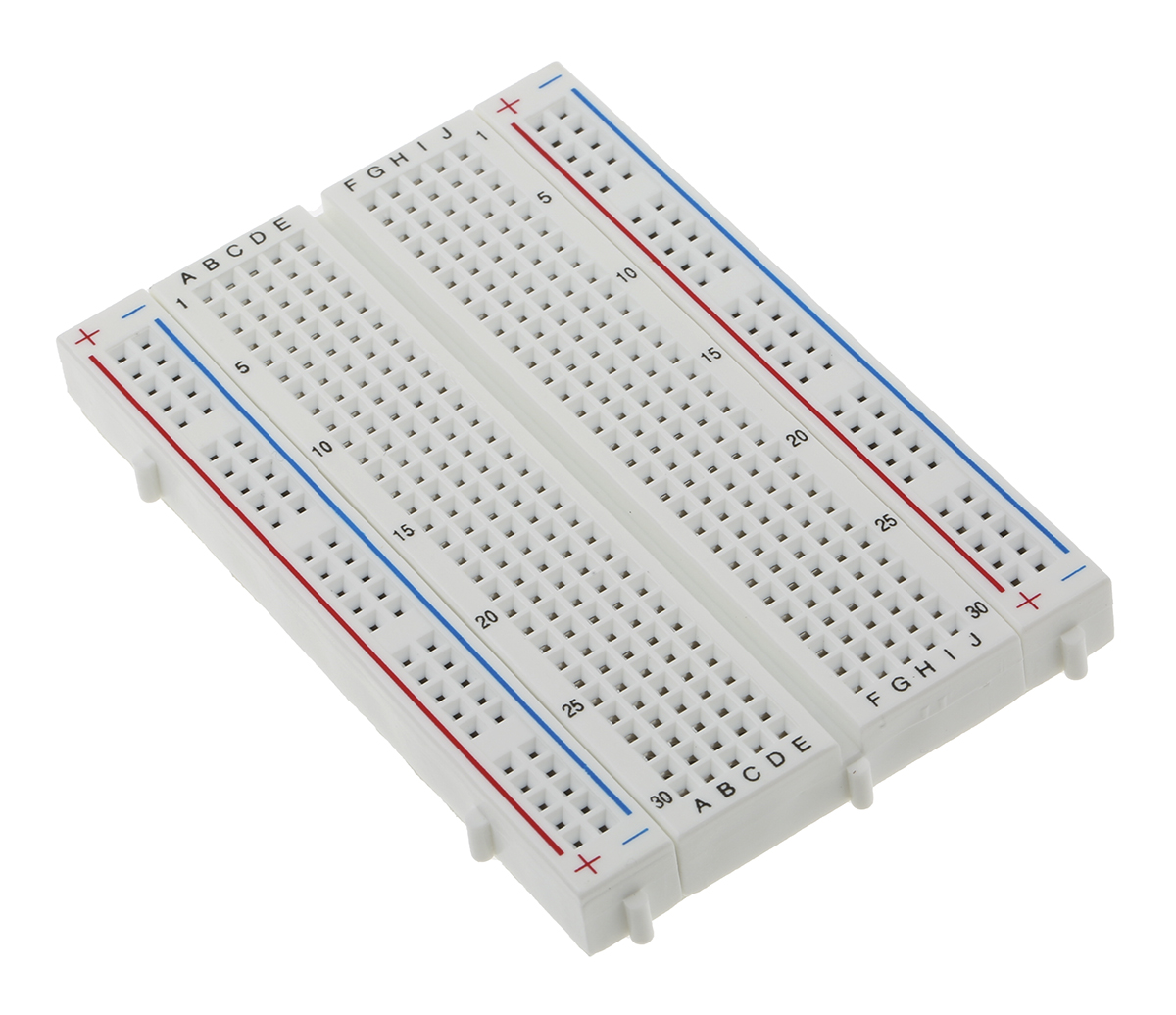

• 30-pin female headers pass through all signals from the Analog Discovery • One half-sized solderless breadboard is included to provide connections • Protoboard area consists of 26 rows of 10 plated through-holes • Provides an alternative to the Flywires for analogue discovery • Two 26 hole V+, V- and GND rails routed from a 30-pin connector
Applications:
• Electronics laboratories • Embedded systems • Networking
Certifications:
• ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007
