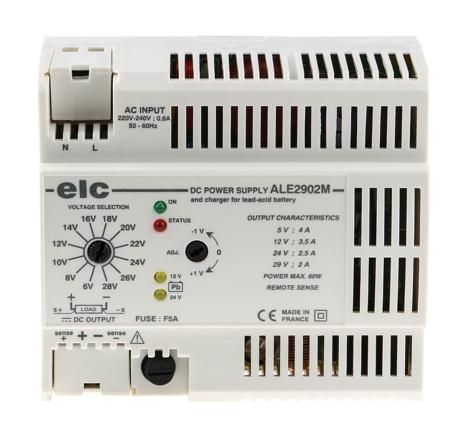

ELC Universal Regulated OEM Modular Power Supply The ELC universal regulated OEM modular power supply is 3-channel lab equipment and has a power rating of 60W. The units have stabilised output power supply and are protected against short circuit protection and reverse polarity. The output voltage rating ranging between 5V to 29V and an output current rating of 4A.
Inclusions:
EU plug and UK plug adapter. Features and Benefits Mini cut-out power supply, also serving as a 12V or 24V lead acid battery charger
Battery reverse polarity protection by output fuse
Charger position and operation indicator
Output voltage adjustable from 5V to 29V in 2V increments (12 positions) and fine adjustment of ±1V
Floating outputs on pull-out screw terminals for 2.5 mm2 wires
Correction of the voltage drop in the wires through remote sensing
Cover on input output terminal block
DIN rail power supply
Green, yellow and red LED indicator Specifications Technology: Switch Mode
Class: II
Primary Voltage Rating: 220-240V ±10% Safety Standards EN 61010-1, EN 61010-2-201, EN 62368-1 EMC Standard EN 61000-6-2/4
