Spring terminals for 35 → 95 mm² cables
Compact design power terminal blocks for mounting exclusively on TS 35 rails of 2.3 mm depth. The terminals are built for a simple and secure connection under difficult conditions, using only an 8 mm male hexagonal spanner. A tightening point on the terminal opens easily and locks in place for quick and easy handling. Features and Benefits • DIN Rail mounting
• Resistant gas-sealed contact provides a safe shunt for short circuit currents over 11400 A per second
• Maintenance free, even in harsh environments

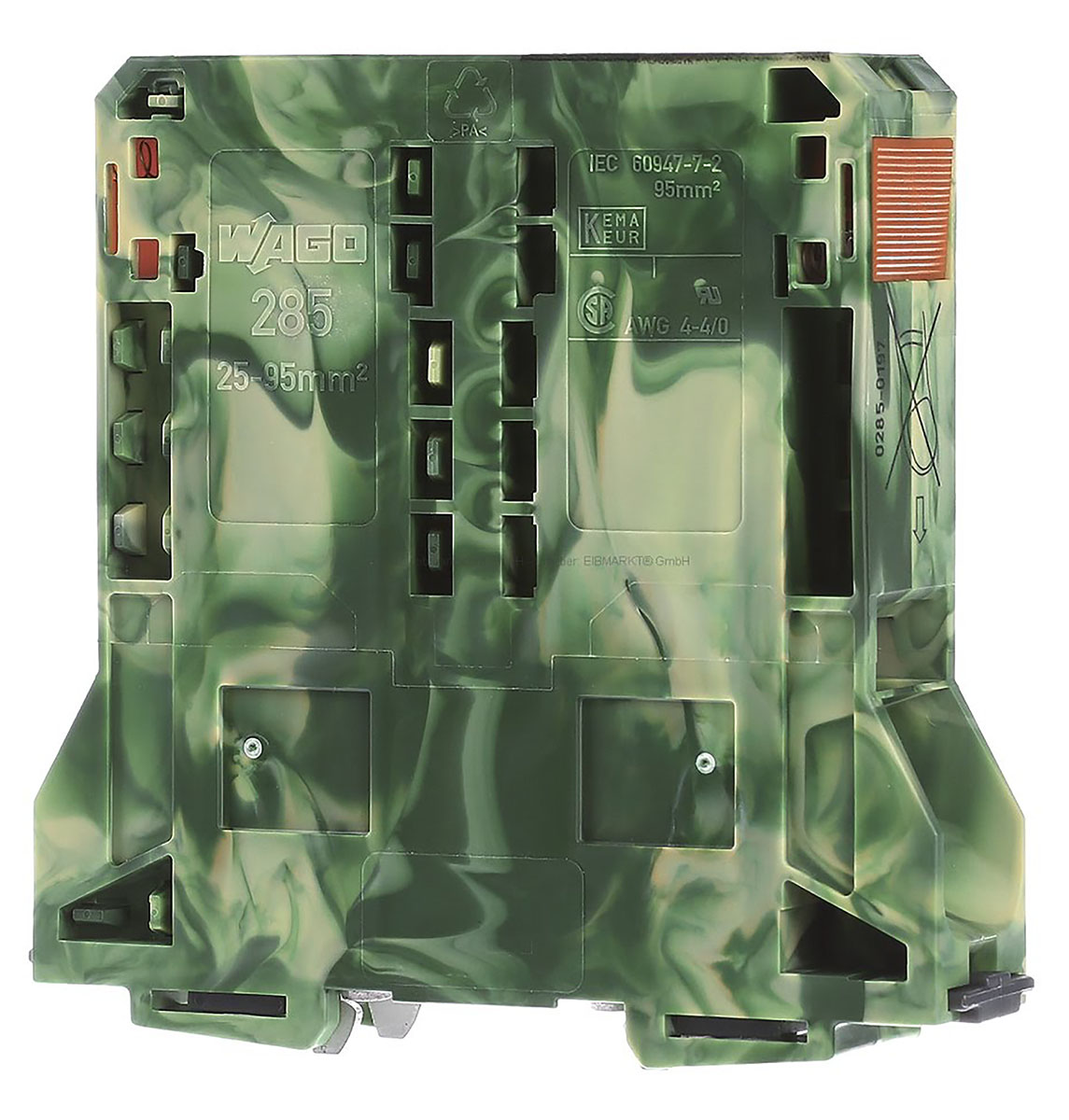

WAGO 285 Series Green/Yellow, 95mm², Single-Level, Power Cage Clamp Termination

Manufacturer:
Manufacturer Part No:
285-197
Enrgtech Part No:
ET13975933
Warranty:
Manufacturer
Checking for live stock
Colour:
Green/Yellow
Number of Levels:
Single
American Wire Gauge:
4 → 000AWG
Series:
285
Termination Method:
Power Cage Clamp
Cable CSA:
95mm²
Fused:
No
pdf icon
2-conductor ground terminal block 285-197-9d580eb0(datasheets)
