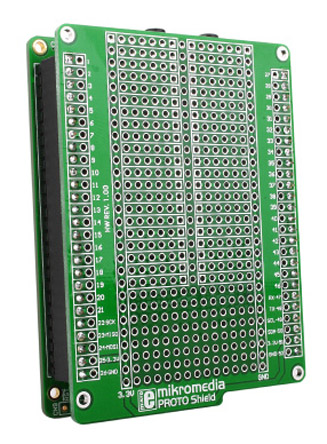

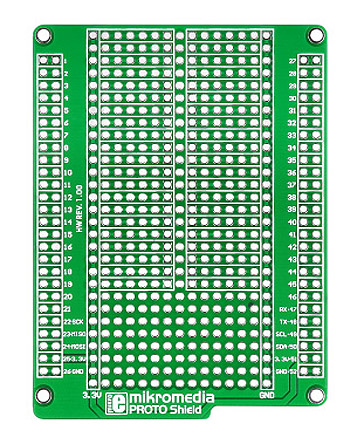

PROTO Shield for Mikromedia Boards
The MIKROE-767 PROTO shield has been specially designed to help you add extra functionality to your Mikromedia boards.
Features & Benefits of the PROTO shield for Mikromedia
•Plenty of connection pins on both sides of the shield, with double rows to allow easy connection to the breadboard part of the shield
•Soldering pads on the breadboard area, with 2.54 mm distance between each pad
•VCC & GND lines available
•2 x stacking headers (26 pins per header)
Features & Benefits of the PROTO shield for Mikromedia
•Plenty of connection pins on both sides of the shield, with double rows to allow easy connection to the breadboard part of the shield
•Soldering pads on the breadboard area, with 2.54 mm distance between each pad
•VCC & GND lines available
•2 x stacking headers (26 pins per header)
MIKROE-767, mikromedia PROTO Expansion Board for PIC18FJ, PIC24, dsPIC33, PIC32, XMEGA
Manufacturer:
MikroElektronikaManufacturer Part No:
MIKROE-767
Enrgtech Part No:
ET11958398
Warranty:
Manufacturer
£ 6.55
Checking for live stock
Kit Classification:
Expansion Board
Kit Name:
mikromedia PROTO
For Use With:
PIC18FJ, PIC24, dsPIC33, PIC32, XMEGA
