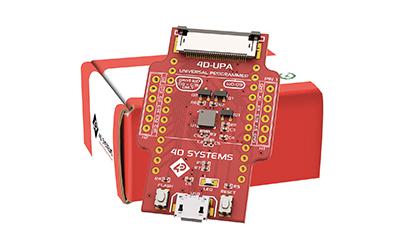

The 4D-UPA (Universal Programmer Adaptor) is a universal programmer designed to work with multiple 4D Systems display modules. It has a 30 way FFC connector at the top of the module, for connecting to gen4-uLCD-xx display modules. On the opposite side is a 10 way FFC connector, for connecting to gen4-IoD-xx display modules. Located centrally in the larger rectangular outline, are pads associated with the gen4-uLCD-xx modules. These break out all the signals which come to/from the gen4-uLCD-xx modules. USB 2.0 compliant Full Speed 12Mbps maximum speed, Suspend supported.
Hardware or Xon/Xoff handshaking supported, 300bps to 2Mbps
Power on reset circuit
Virtual COM port drivers allow operation with existing COM port PC applications
USB powered
Traffic/Operation LED indicates board status
Breakout pads of all the signals found in 2.54mm (0.1") spacing
