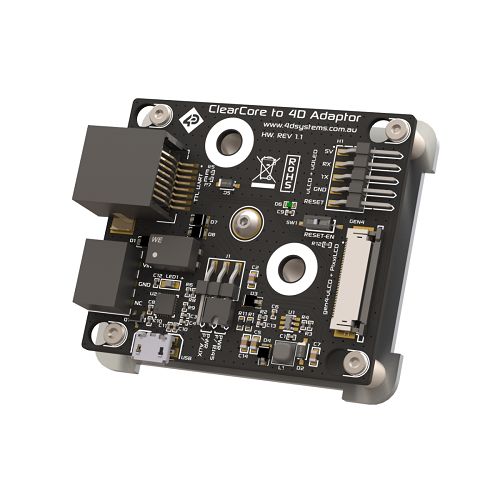

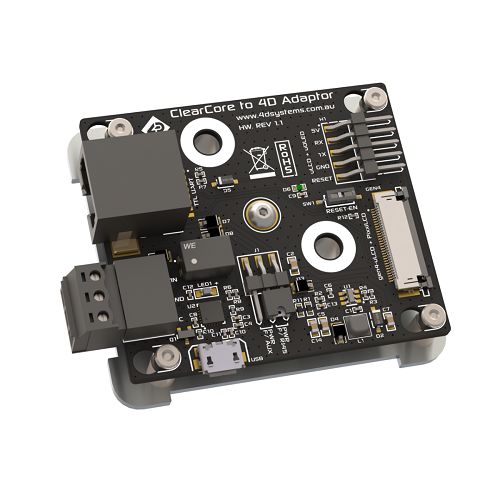

The 4D System interfacing adaptor to enable easy connections between a Teknic Clearcore Industrial I/O Motion Controller, and a 4D Systems intelligent display, such as one of the gen4-uLCD, uLCD, uOLED and pixxiLCD ranges. It enables easy connections using standard cables provided by both companies, 4D Systems and Teknic. It is easy to mount and easy to use, with two options for how the connected display module can be powered via the Teknic ClearCore controller. On board programmer to enable the connected 4D Display to be programmed via USB, without the need to unplug the display from this 4D Clearcore Adaptor
UART connection to the Teknic Clearcore using standard CAT style Ethernet cable
Standard FFC or 5-way connection to 4D Systems intelligent displays
RoHS and REACH compliant
