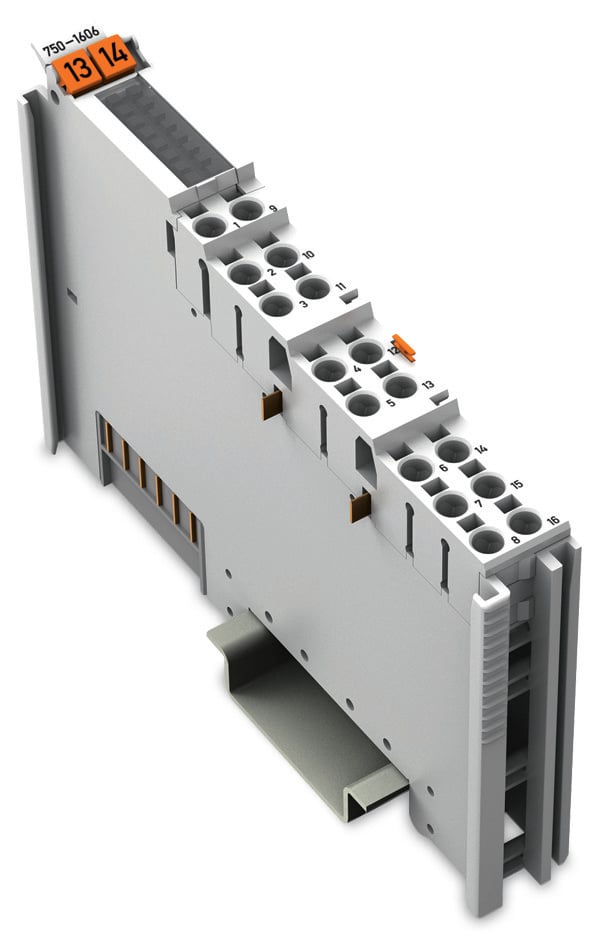

The WAGO Potential Distribution having 16-way. This potential multiplication module provides 0 V to the outputs in combination with the 750-1504 16 channel Output Module. The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. RoHS compliant
Mounting type DIN-35 rail

WAGO Distribution Block, 16 Way, 0.08 → 1.5mm², 10A, Light Grey

Manufacturer:
Manufacturer Part No:
750-1606
Enrgtech Part No:
ET28279651
Warranty:
Manufacturer
Checking for live stock
Number of Ways:
16
Termination Method:
Cage Clamp
Wire Size:
28 → 16 AWG
Housing Material:
Polyamide, Polycarbonate
IP Rating:
IP20
Current Rating:
10A
Cable CSA:
0.08 → 1.5mm²
Colour:
Light Grey
pdf icon
Datasheet - 750-1606-fa068c8b(datasheets)
