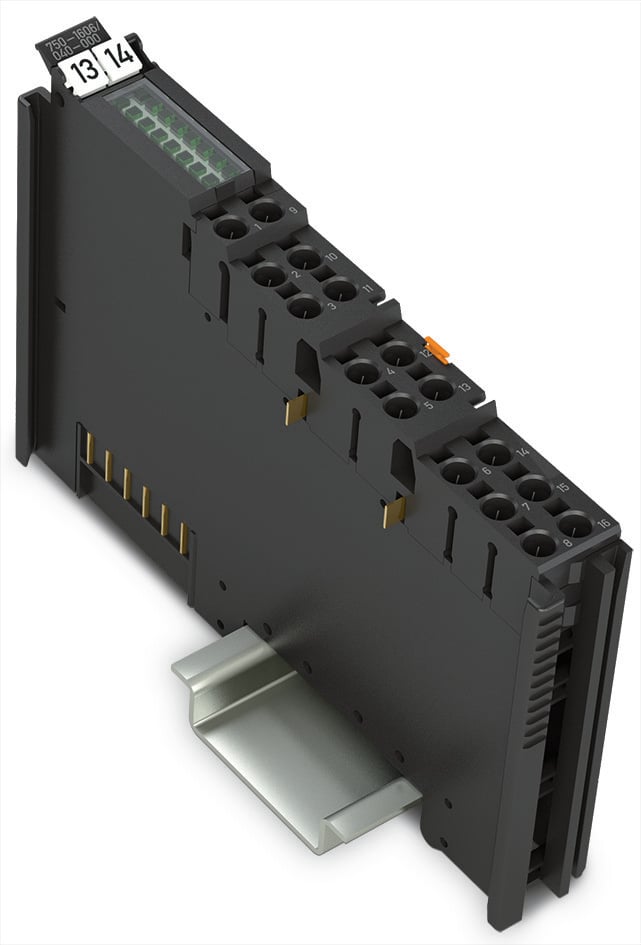

The WAGO Potential Distribution module provides 0 V power. This eliminates the need for additional DIN-rail-mount terminal blocks. The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. It has an operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP connections. Higher vibration and shock resistance
ROHS compliant
