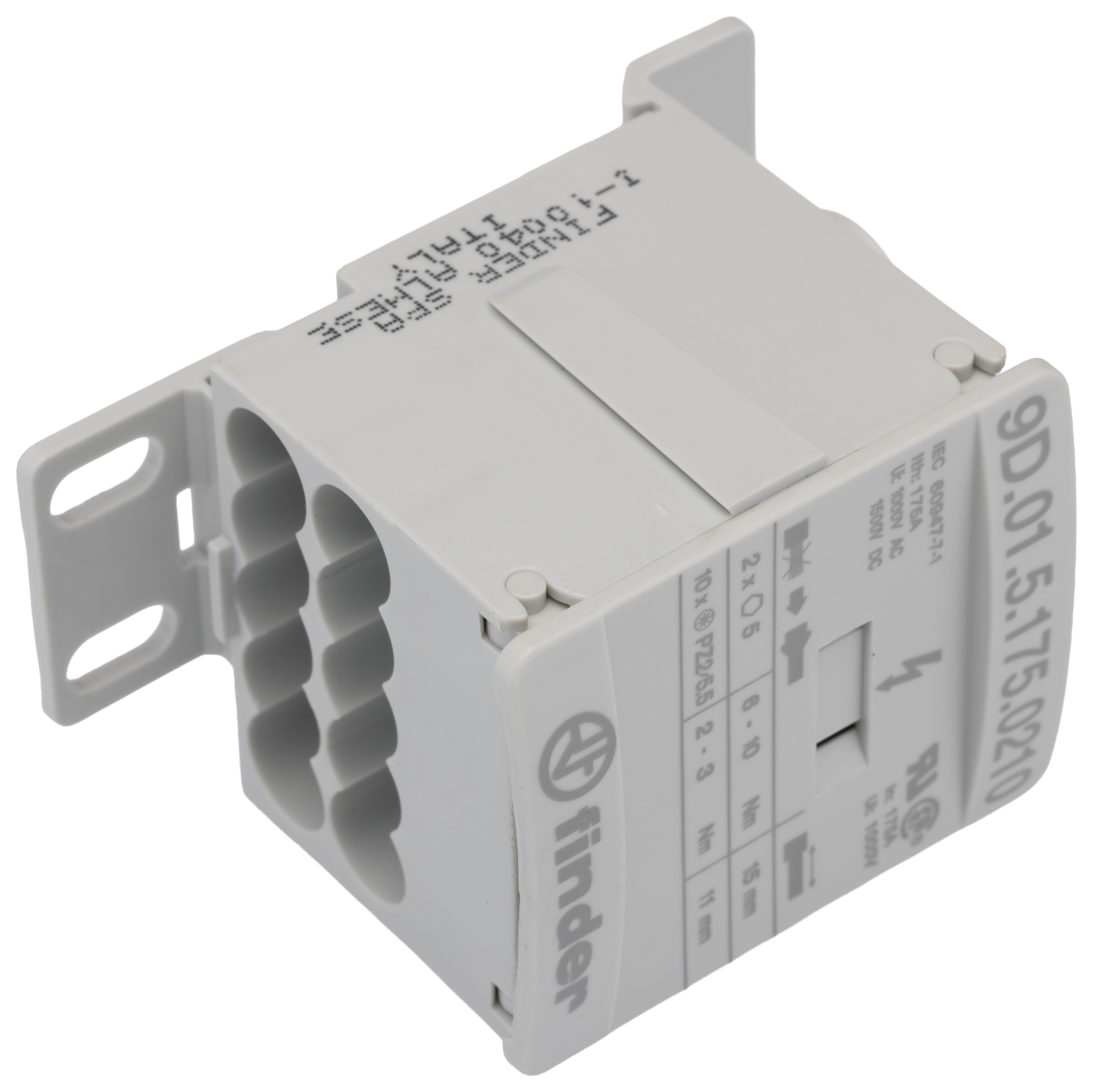

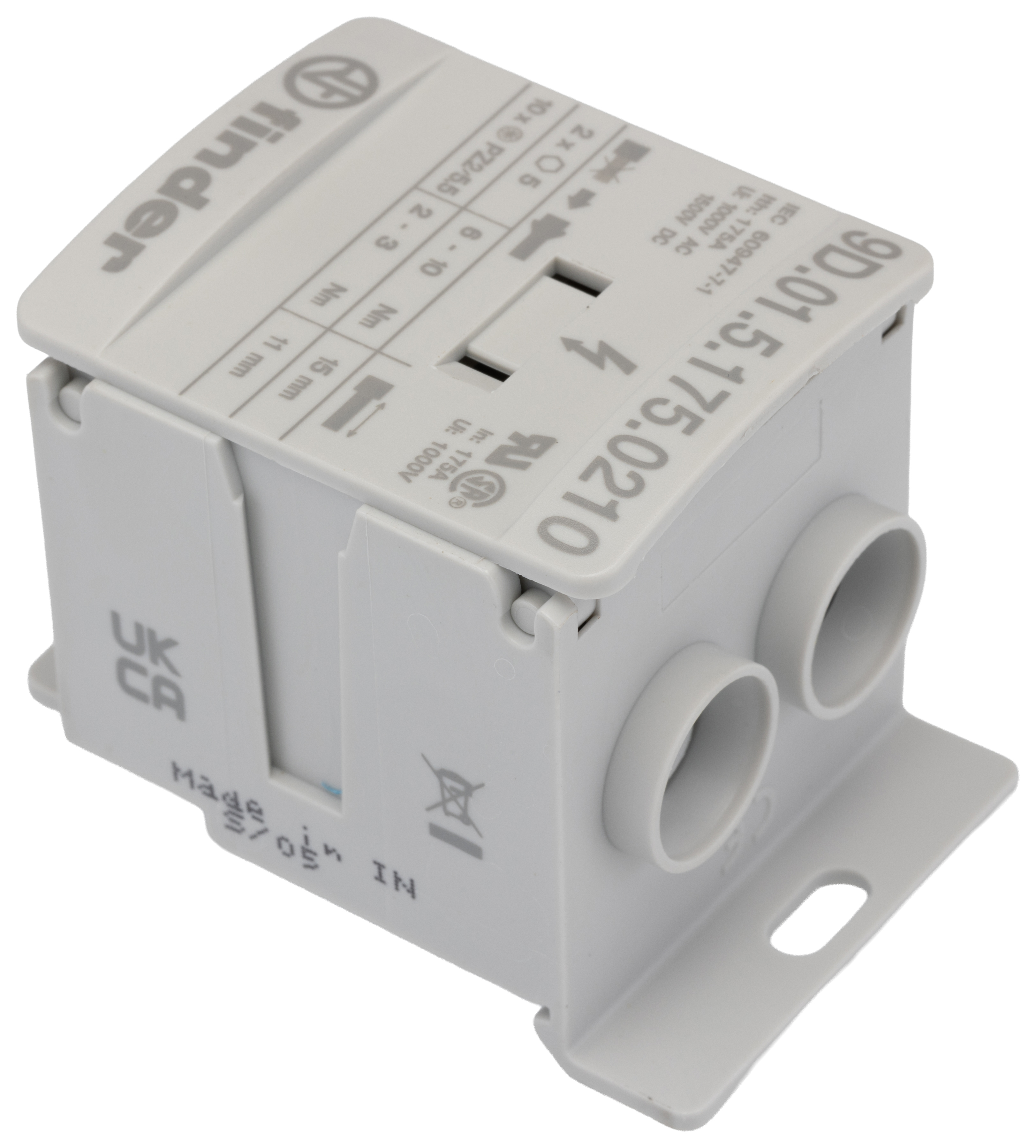

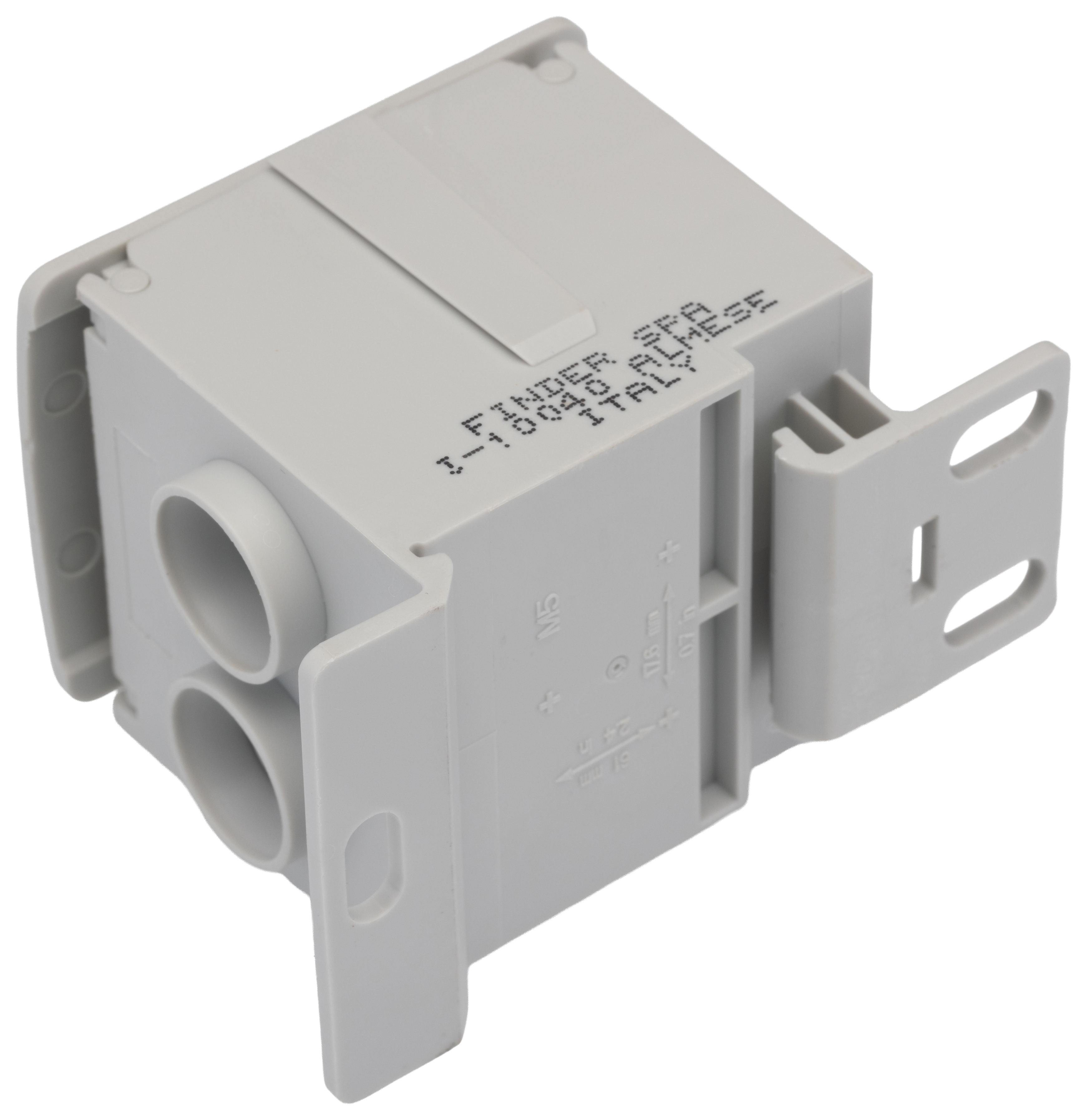

Finder Non-Fused Terminal Block, 100kA Current Rating, 70mm² - 9D.01.5.175.0210 This non-fused terminal block is designed for high current electrical applications. It accommodates wire sizes from 10mm² to 70mm² and features a compact plastic housing with an IP10 rating, offering protection in various environments. With a current rating of 100 kA and a voltage capacity of 1000/1500V, it is suitable for demanding tasks. Features & Benefits • Supports cable sizes from 10mm² to 70mm² for versatile applications
• IP10 rated to protect against solid objects larger than 50mm
• Rated for maximum currents up to 100 kA for consistent performance
• Maximum operating temperature of 70°C enhances durability
• Equipped with a snap-on cover for convenient installation and access
• Complies with UL94 V0 for safety and material integrity Applications • Used in control panels for efficient power distribution
• Integrates into electrical cabinets for extensive installations
• Suitable for junction boxes in complex systems
• Utilised in high current distribution areas for effective operation Can it handle both copper and aluminium cables? Yes, it is compatible with both Cu and Al cables. Will it perform well in high temperature scenarios? It is rated for a maximum temperature of 70°C. How many connections does it support? This block allows for up to 12 connections. Does this component come with a marking kit? Yes, a ready-to-use marking kit is included with every block.
