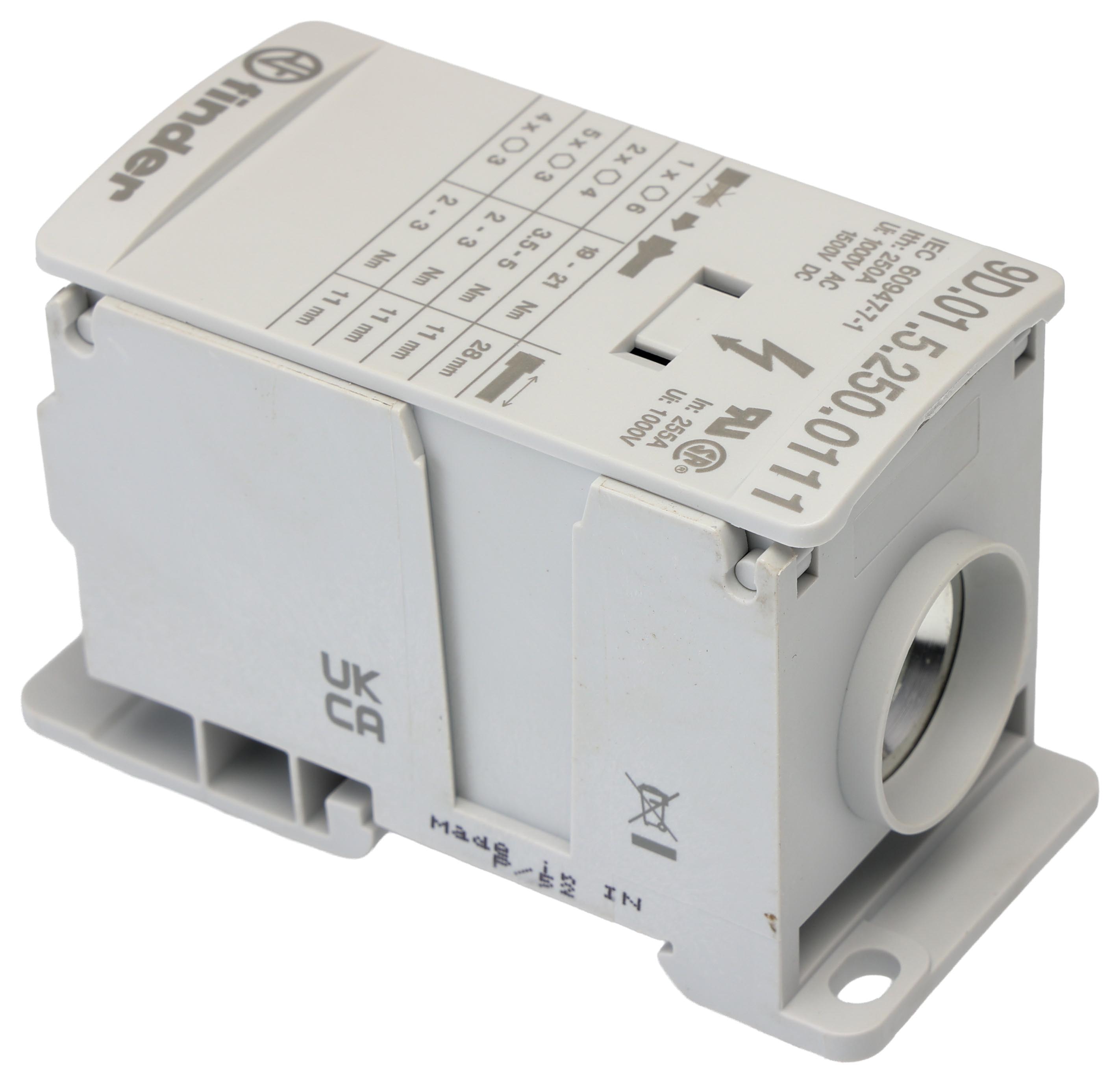

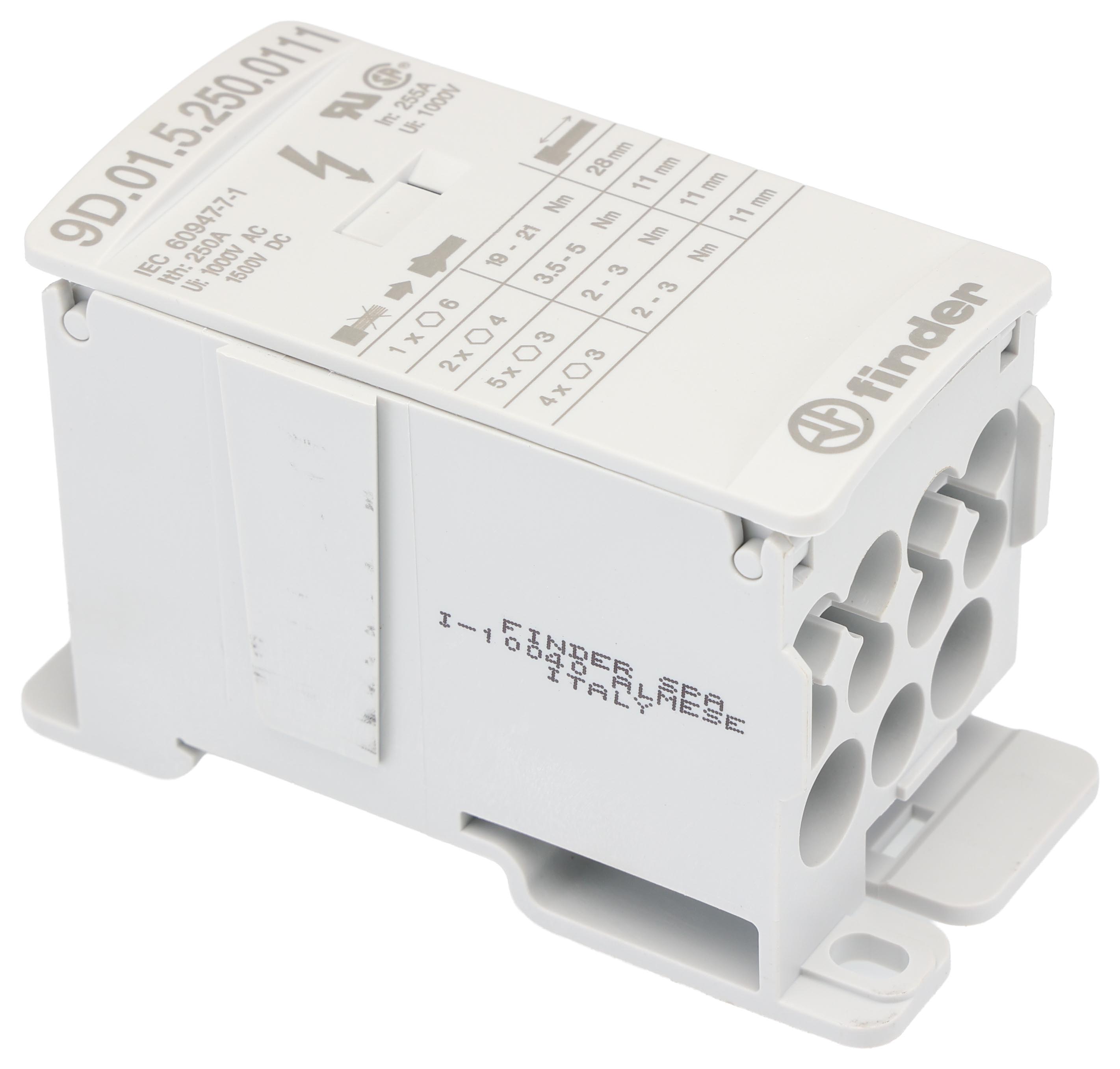

9d0152500111 Finder Non-Fused Terminal Block, 12 Way, 120mm², 100kA, 1000/1500 V AC/DC, White
9d0152500111 Finder Non-Fused Terminal Block, 12 Way, 120mm², 100kA, 1000/1500 V AC/DC, White
The Finder High current distribution terminal blocks for electrical panels has multiple, pole splitters splitting with increased number of outputs. It also combines several inputs to make a single output example solar applications. Its adjacent units may Reversible snap on cover
Plastic material conforming to UL94 V3
Finder

Non-Fused Terminal Block, 12 Way, 120mm², 100kA, 1000/1500 V AC/DC, White

Manufacturer:
Finder
Manufacturer Part No:
9D.01.5.250.0111
Enrgtech Part No:
ET28326790
Warranty:
Manufacturer
£ 37.02

Checking for live stock

Number of Ways:

12

Termination Method:

Screw Terminal

Wire Size:

4/0 AWG

Housing Material:

Plastic

IP Rating:

IP10

Current Rating:

100kA

Voltage Rating:

1000/1500 V AC/DC

Cable CSA:

120mm²

Colour:

White
