This product is used in conjunction with an external Core Balance Current Transformer (CBCT) and will detect residual sinusoidal alternating and pulsating direct currents. An adjustable trip level and time delay allows the product to be set according to the type of installation to be protected. When the level of leakage current being monitored exceeds the set trip level, the unit will trip. Typically, the product is used in conjunction with an external switching device (i.e. contactor, shunt trip). An auxiliary supply is required to power this product.
Type A - Earth Leakage Relay
Selectable Trip level (0.03 - 30A) and Time delay (0 - 10s)
Local (and optional remote) Test/Reset buttons
Isolated Auxiliary supply
1 x SPDT/1 x SPNO Relay outputs
44mm wide, DIN Rail mount
Selectable Trip level (0.03 - 30A) and Time delay (0 - 10s)
Local (and optional remote) Test/Reset buttons
Isolated Auxiliary supply
1 x SPDT/1 x SPNO Relay outputs
44mm wide, DIN Rail mount

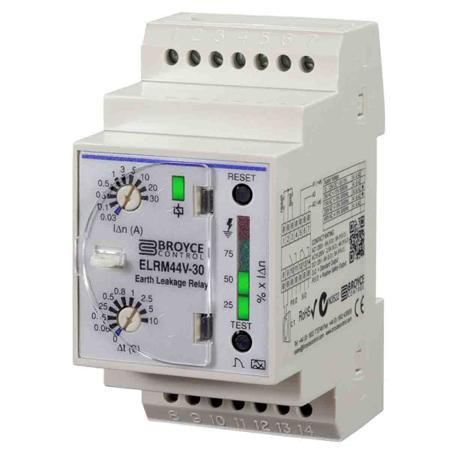

Earth Leakage Relay, 50Hz Frequency, 30A Leakage, SPDT, SPNO Output
Manufacturer:
Broyce Control
Manufacturer Part No:
ELRM44V-30 12-125V DC
Enrgtech Part No:
ET18210701
Warranty:
Manufacturer
£ 137.81
Checking for live stock
Frequency Range:
50 Hz, 60 Hz, 400Hz
Leakage Range:
30A
Output:
SPDT, SPNO
Protection Class:
Type A
Test Function:
Remote
Dimensions:
44 x 63.5 x 85mm
Weight:
(AC Power Supplies)190 g, (DC Power Supplies)110g
