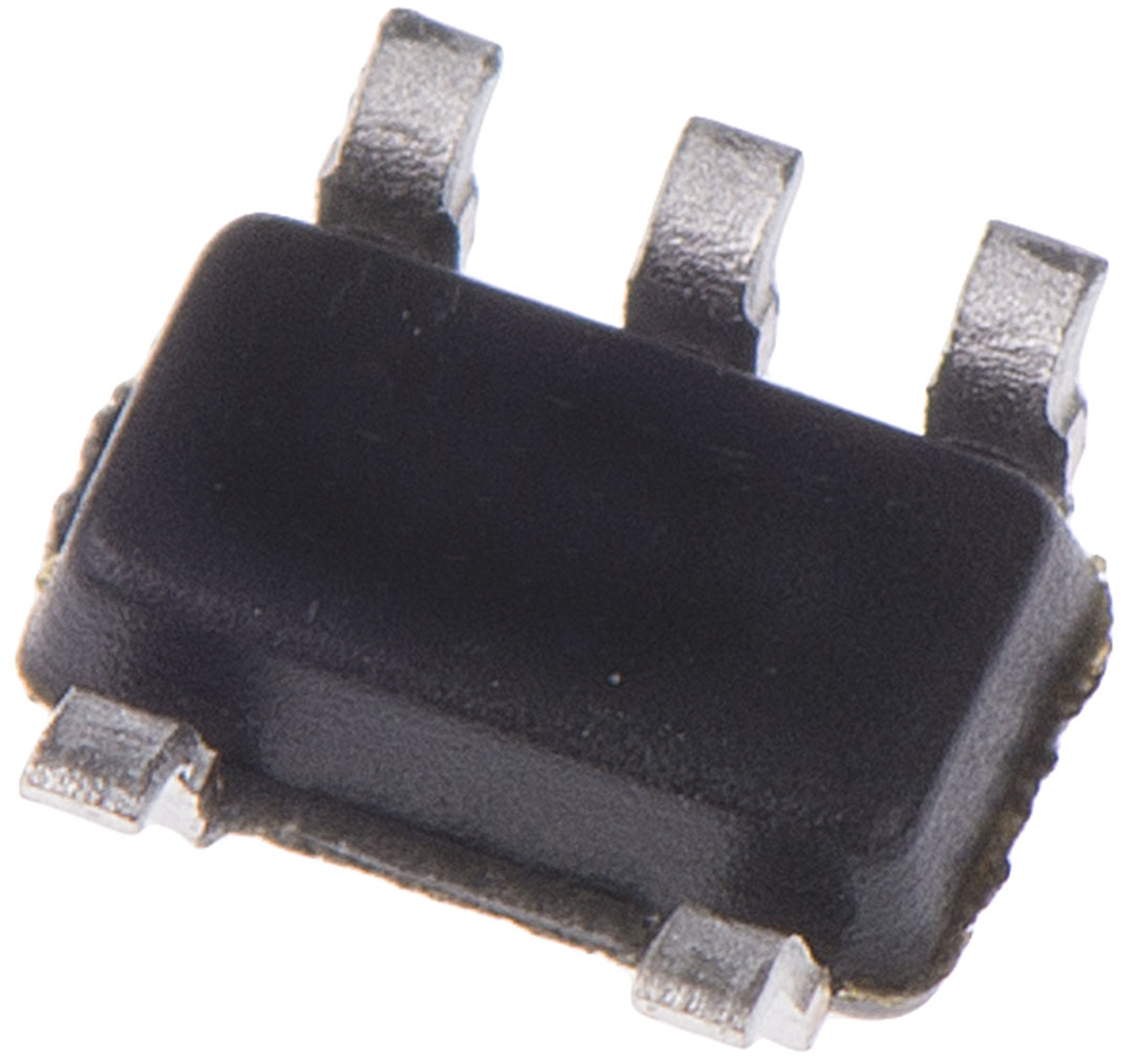

24AA64FT-I/OT, 64kbit EEPROM Memory, 900ns 5-Pin SOT-23 Serial-2 Wire

Memory Size:

64kbit

Interface Type:

Serial-2 Wire

Package Type:

SOT-23

Mounting Type:

Surface Mount

Pin Count:

5

Organisation:

8K x 8 bit

Minimum Operating Supply Voltage:

1.7 V

Maximum Operating Supply Voltage:

5.5 V

Programming Voltage:

1.7 → 5.5V

Number of Bits per Word:

8bit

Dimensions:

3.1 x 1.8 x 1.3mm

Maximum Random Access Time:

900ns

Number of Words:

8k

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+85 °C

Data Retention:

200yr
