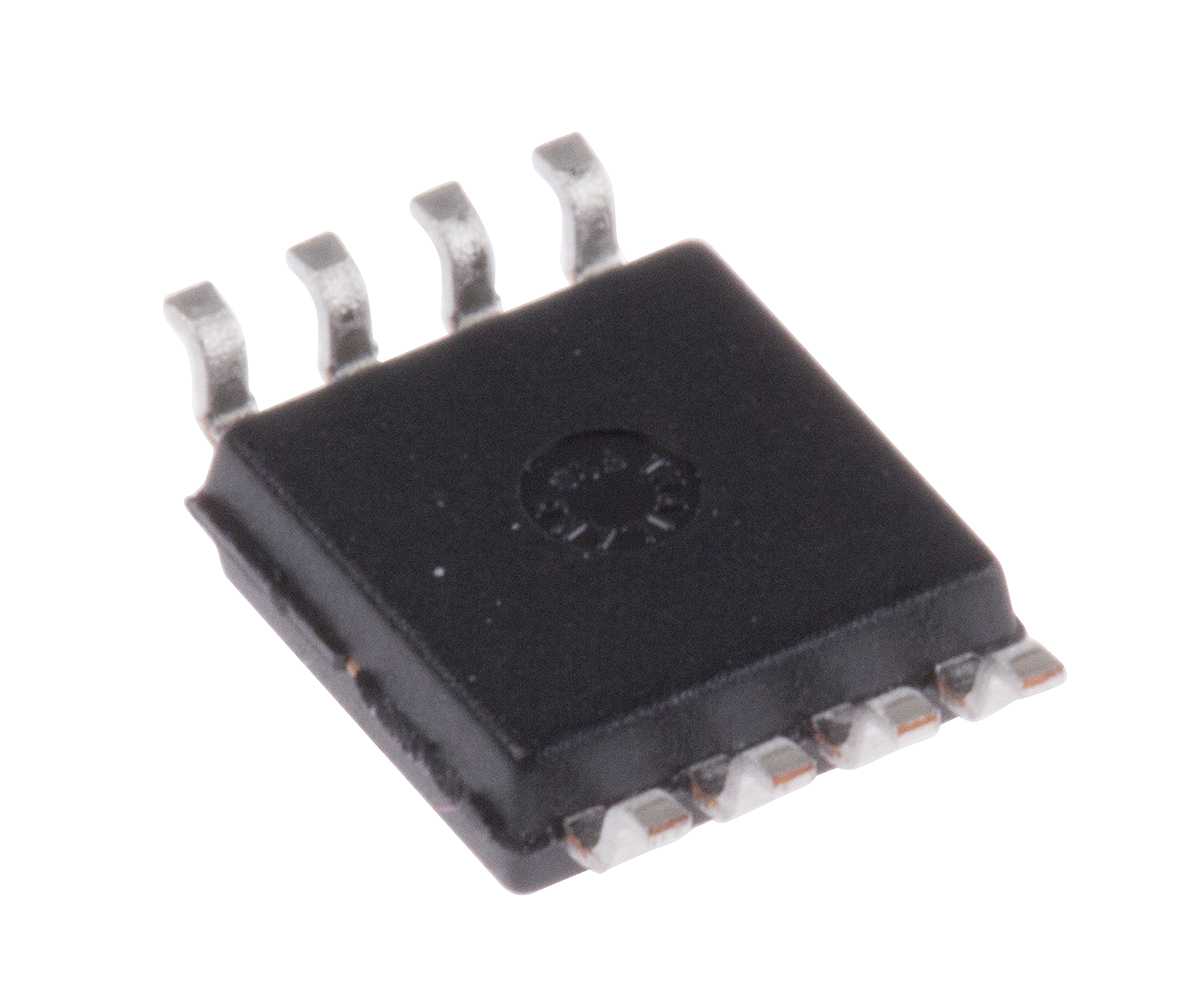

25LC1024-I/SM, 1Mbit Serial EEPROM Memory, 50ns 8-Pin SOIJ Serial-SPI

Memory Size:

1Mbit

Interface Type:

Serial-SPI

Package Type:

SOIJ

Mounting Type:

Surface Mount

Pin Count:

8

Organisation:

128 x 8 bit

Minimum Operating Supply Voltage:

2.5 V

Maximum Operating Supply Voltage:

5.5 V

Programming Voltage:

2.5 → 5.5V

Number of Bits per Word:

8bit

Dimensions:

5.33 x 5.38 x 1.98mm

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Maximum Random Access Time:

50ns

Data Retention:

200yr

Number of Words:

128
