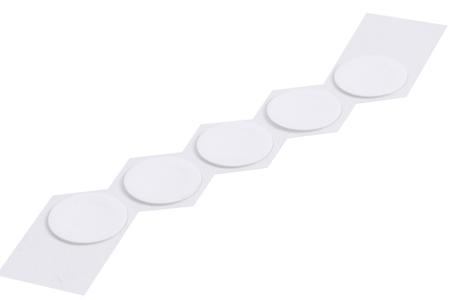

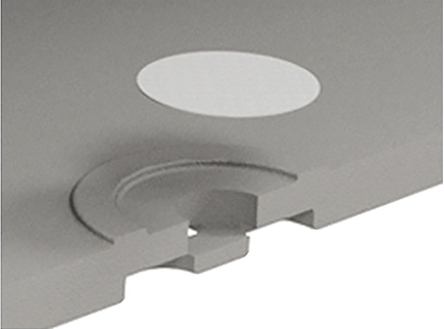

DAE-D Pressure Compensation Membrane The DAE-D pressure compensation membrane provides protection from particles, water, oils, and liquids while allowing pressure and temperature equalization of the enclosure. It has an adhesive ring and can be easily integrated into existing equipment. The DAE-D membrane can be used in a variety of applications including sensors, protective cases, lighting enclosures, appliances and general enclosures where protective venting is required. Features and Benefits • Bopla Pressure Compensation Membrane (5x)
• Prevents the passage of harmful particles and liquids into the device
• Allows for constant pressure equalization during altitude and temperature fluctuations
• IP Rating: IP66 / IP67 protection
• Colour: White
• Outside diameter: 11 mm Test Specifications DIN 40050.9: Degree of Protection (IP-Code); Protection against water and dust
ASTM B117-09: Salt Spray Resistance - 100 hours spray at elevated temperature and pressure
IEC 60068-2-78: High Temperature and RH - 10 days exposure
Temperature resistance: 48 hours at -45°C and 48 hours at 80°C
IEC 60068-2-10: Antimicrobial activity grade 2b
