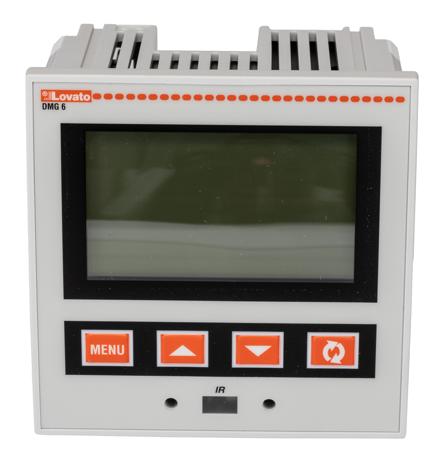

Lovato DMG600 Series - Digital Multimeters for Power Measurement DMG 600 and DMG 610 digital multimeter are capable of viewing the measurements with high accuracy on the wide graphic LCD, which allow to control energy distribution networks.
Easy and intuitive menu navigation
LCD display with text in 5 languages
Expandability with EXP10xx modules (stock-no 833-2706)
USB connectivity with the CX01 dongle (stock-no. 833-2730)
Wi-Fi connectivity with the CX02 dongle (stock-no. 833-2734)
High measurement accuracy
Wide range for power supply, measurements and temperature
Energy meters for active, reactive, apparent partial and total values, per phase and system values
Hour counter for programmable total and partial hours
Suitable for LV, MV and HV electric systems and installations
Power supply 100 - 440 Vac
Flush-mount housing 96 x 96 mm
IP54 protection on the front
Two versions available:
Without RS485 port (stock-no. 833-2695)
With RS485 port (stock-no. 833-2709)
