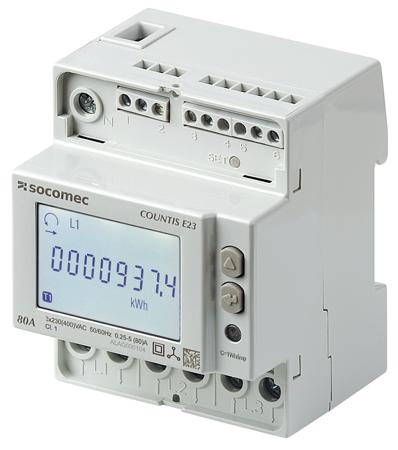

The COUNTIS E23 and E24 are modular active and reactive electrical energy meters that display consumed energy. They are designed for three-phase networks and allow a direct connection of up to 80 A. They are equipped with a MODBUS communication Bus.
The COUNTIS E23 and E24 are modular active and reactive electrical energy meters that display consumed energy. They are designed for three-phase networks and allow a direct connection of up to 80 A. They are equipped with a MODBUS communication Bus.
Measures and displays total and partial energy
Dual tariff management: T1 / T2
Electrical parameter measurements: I, U, V, f
Power, power factor
RS 485 Modbus communication
MID version
Dual tariff management: T1 / T2
Electrical parameter measurements: I, U, V, f
Power, power factor
RS 485 Modbus communication
MID version
3 Phase LCD Energy Meter
Manufacturer:
Socomec
Manufacturer Part No:
48503050
Enrgtech Part No:
ET16896634
Warranty:
Manufacturer
£ 267.96
Checking for live stock
Display Type:
LCD
Number of Digits:
8
Number of Phases:
3
Pulse Output:
Yes
Depth:
70mm
Meter Accuracy:
Class 1 (EN 62053-21), Class 2 (EN 62053-23), Class B (EN 50470-3) E24
Minimum Temperature:
-25°C
Maximum Temperature:
+55°C
Meter Type:
Digital
Measurement Range:
0 → 99.99 A, 0 → 99.99 kVA, 0 → 99.99 kW, 0 → 99.99 kvar, 0 → 999.9 V, 0.001 → 1, 0.01 → 999999.99 kvarh, 0.01 → 999999.99 kWh, 0.01 → 999999.99 kVAh, 45 → 65Hz
Maximum Measurement:
1, 65 Hz, 99.99 kvar, 99.99 kW, 99.99 A, 99.99 kVA, 999.9 V, 999999.99 kVAh, 999999.99 kvarh, 999999.99 kWh
Minimum Measurement:
0 kvar, 0 kVA, 0 A, 0 kW, 0.001, 0.01 kvarh, 0.01 kVAh, 0.01 kWh, 45 Hz, 0999.9 V
