Lovato DME D120/121 Energy Meter The DME D120 T1 & DME D121 are single-phase active and reactive energy meters for direct connection, for currents up to 63A. Apart from energy metering, these meters can measure additional indications for a total of 14 measurements that can be visualized on the backlight LCD display.
The DME D120 & D121 have a standard 2U (36mm wide) modular housing and is supplied with sealable terminal blocks. DME D120 T1

Counter with 6+1 digits
LCD display with backlight
MID certified
Modular DIN Rail housing, 2U (36mm wide)
Button for measure selection and programming
Pulse LED for active energy consumption
Indication of instantaneous consumption (active power)
Programmable static output for pulse or alarm threshold
IP40 (front) protection

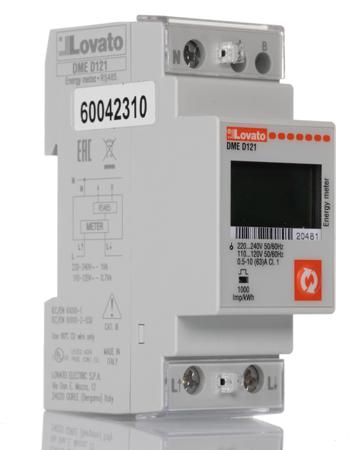

DME D121

Counter with 6+1 digits
LCD display with backlight
Modular DIN Rail housing, 2U (36mm wide)
Button for measure selection and programming
Pulse LED for active energy consumption
Indication of instantaneous consumption (active power)
RS-485 interface with Modbus RTU and ASCII protocols
IP40 (front) protection
