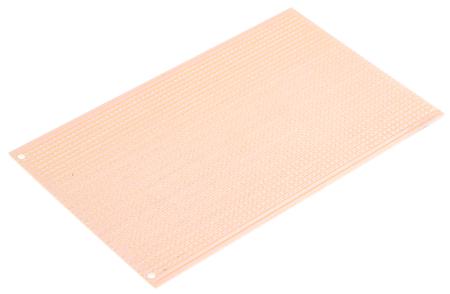

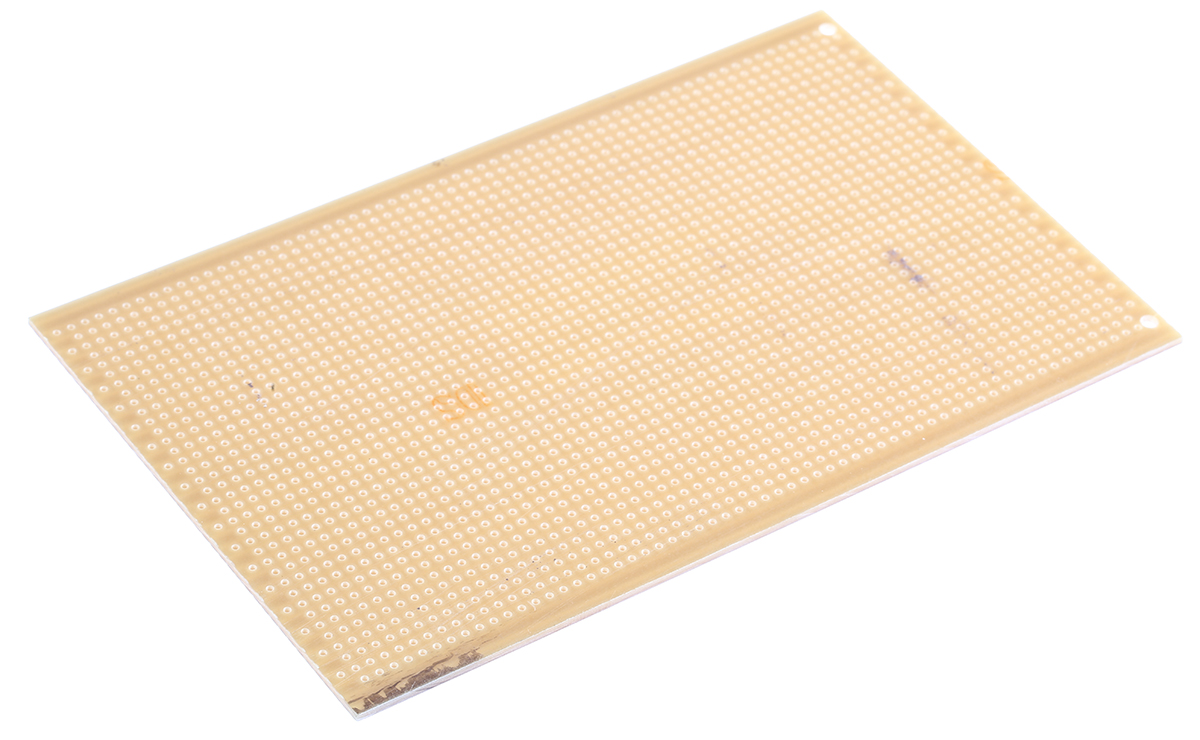

Vero Technologies 09-2196 09-2196, Single Sided DIN 41612 Eurocard PCB FR2 With 36 x 60 1.02mm Holes, 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm

Base Material:

Synthetic Resin Bonded Paper

Number of Sides:

1

Dimensions:

160 x 100 x 1.6mm

Copper Thickness:

35µm

Hole Diameter:

1.02mm

Hole Layout:

36 x 60

Hole Pitch:

2.54 x 2.54mm

Connection:

DIN 41612

FR Material Grade:

FR2

Length:

160mm

Thickness:

1.6mm

Width:

100mm
