SMD 0805 Ferrite Filters- BLM21B Series The BLM series of ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. At noise frequencies, these ferrite beads are designed to function nearly as resistors, leaving signal wave forms undistorted and reducing the possibility of resonance. The nickel barrier construction of the external electrodes enables excellent solder heat protection.

BLM_P variants feature low DC resistance and are ideal for high current circuits.

This series of ferrite beads are designed for general use applications.

Murata Ferrite Bead (Chip Ferrite Bead), 2 x 1.25 x 0.85mm (0805 (2012M)), 1000Ω impedance at 100 MHz

Manufacturer:
Manufacturer Part No:
BLM21BD102SN1D
Enrgtech Part No:
ET11408583
Warranty:
Manufacturer
Checking for live stock
Package Type:
0805 (2012M)
Impedance at 100 MHz:
1000Ω
Current Rating:
200mA
Type:
Chip Ferrite Bead

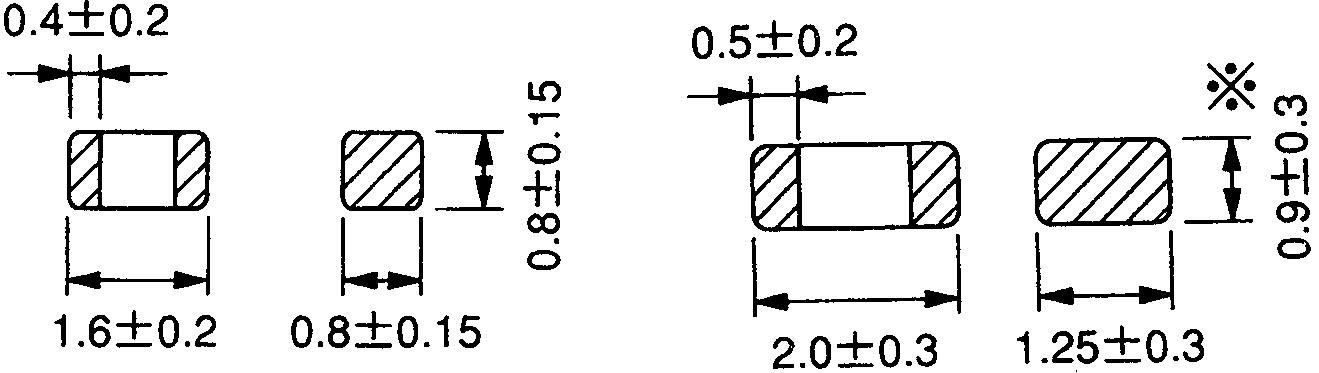

Dimensions:
2 x 1.25 x 0.85mm
Length:
2mm
Depth:
1.25mm
Height:
0.85mm
Maximum DC Resistance:
400mΩ
Series:
BLM21BD
Application:
EMI Suppression Filter, High Speed Signal Lines
Material:
Ferrite
pdf icon
FILTRE SERIE BLM-965ed980(datasheets)
pdf icon
EMIFIL SMD/BLOCK Type EMI Suppression Filters Data Sheet-f6b376fd(datasheets)
pdf icon
Chip Ferrite Bead BLM21B Series-bcc8f6fe(datasheets)
Explore ferrite beads for effective EMI suppression. Enrgtech offers noise filter cores and components that enhance signal integrity in electronic circuits.
