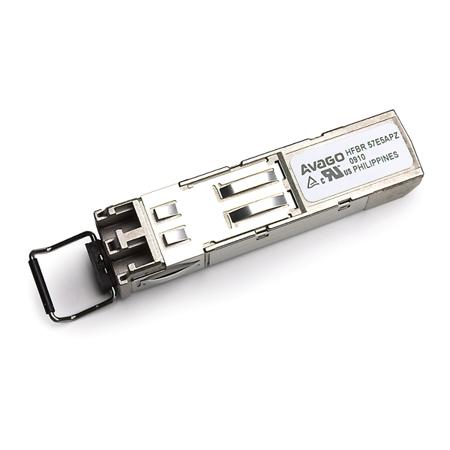

The Broadcom series HFBR small form-factor pluggable LC transceiver gives the system designer a product to implement FDDI/Fast Ethernet network with DMI and SONET OC-3 (SDH STM-1) physical layers for ATM and other services. As an enhancement to the conventional SFP interface defined in SFF-8074i, the HFBR-57E5APZ is compatible to SFF-8472 (digital diagnostic interface for optical transceivers). Using the 2-wire serial interface defined in the SFF-8472 MSA, the HFBR-57E5APZ provides real-time information on temperature, LED bias current, LED average output power and receiver average input power. RoHS compliant
Compatible with ATM Forum UNI SONET OC-3 multimode fibre physical layer specification
Lead free
Industry Standard Small Form Pluggable (SFP) package
LC duplex connector optical interface
Operates with 50/125 μm and 62.5/125 μm multimode fibre
Compatible with 100Base-FX version of IEEE802.3u
Single +3.3 V power supply
+3.3 V TTL LOS output
Receiver outputs are squelch enabled
Manufactured in an ISO 9001 certified facility
-40°C to 85°C temperature range
