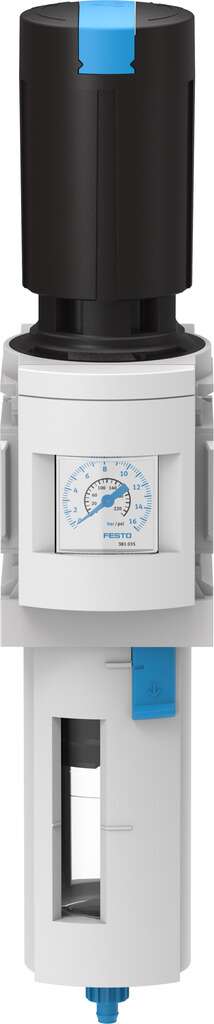

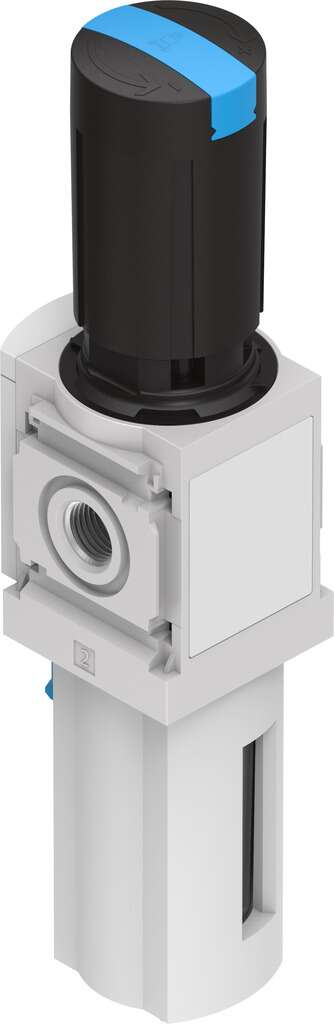

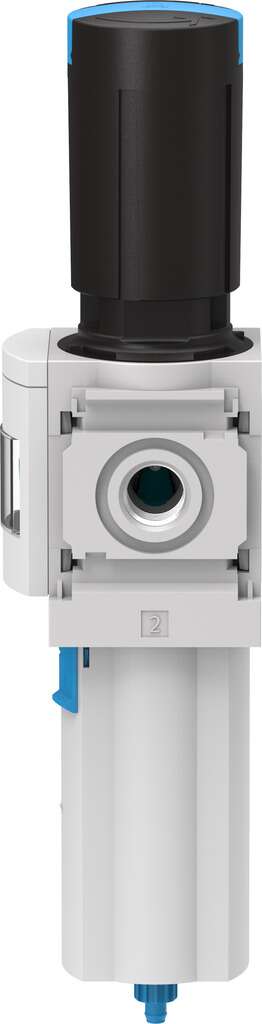

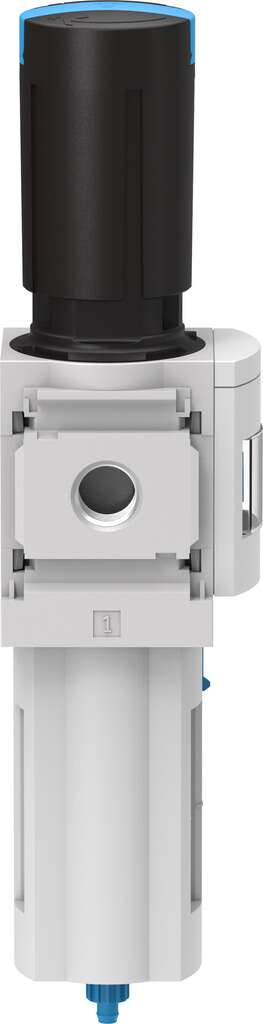

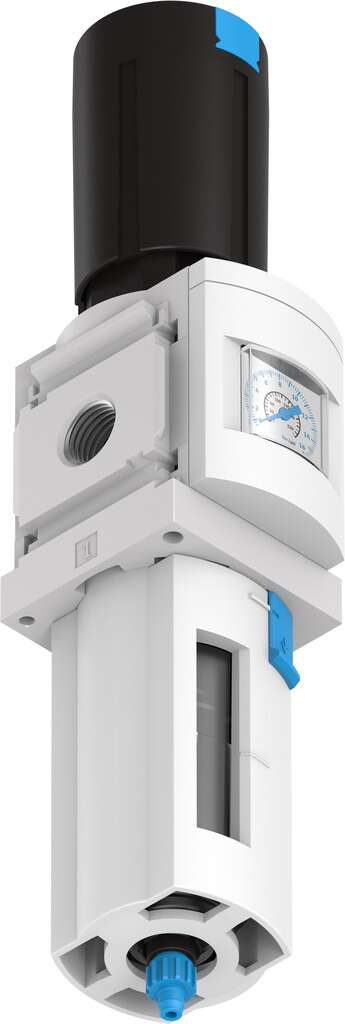

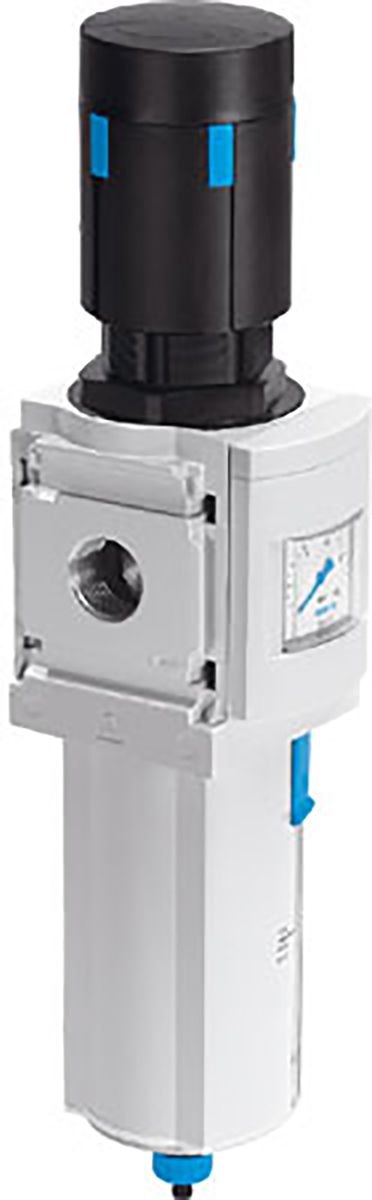

ms6-lfr-1-2-d7-erm-as Festo MS6-LFR, 40μm G 1/2 Filter Regulator, G 1/2, 20 bar, 1/2 in, 1/2 in

The Festo MS6 LFR 1/2 D7 ERM AS is a high-performance filter regulator from Festo’s MS6 LFR series, combining reliable pressure regulation with efficient 40 µm particulate filtration in one compact pneumatic air preparation unit. Built to support pressures up to 20 bar and an impressive nominal flow rate of around 4500 L/min, it ensures clean, stable air delivery for industrial pneumatic systems.

Why Choose Festo Filter Regulator?

Choosing the MS6 LFR 1/2 D7 ERM AS ensures consistent pneumatic performance thanks to its integrated filtration and regulation. Its robust design, compact size, and easy installation make it ideal for demanding industrial environments. With precision pressure control, manual condensate drain, and compatibility with food grade and inert gas applications, it offers enduring reliability and superior air quality—leading to reduced downtime and maintenance costs.

Product Core Features:

Integrated 40 µm filter cartridge (remove particles/condensate down to 40 µm)
Manual condensate drain with 38 mL bowl capacity
Pressure regulation range 0.5–12 bar (setpoint up to 20 bar), with hysteresis of ≤ 0.25 bar
High flow capacity
G 1/2 female port connections (inlet/outlet) for easy inline installation
Rotary knob with detent and actuator lock to prevent accidental adjustment
Bowl guard made of resilient plastic (PC) for visibility and protection
Operating temperature range
Corrosion resistance class CRC 2.

For more information please check the datasheets.

Festo MS6-LFR, 40μm G 1/2 Filter Regulator, G 1/2, 20 bar, 1/2 in, 1/2 in

Manufacturer:

Festo

Manufacturer Part No:

MS6-LFR-1/2-D7-ERM-AS

Enrgtech Part No:

ET13878083

Warranty:

Manufacturer

£ 78.55 £ 54.99

Checking for live stock

Port Connection:

G 1/2

Minimum Ambient Operating Temperature:

-10°C

Maximum Operating Pressure:

20 bar

Bowl Material:

Polycarbonate

Drain Type:

Manual

Pressure Gauge Port Thread Size:

1/2 in

Maximum Ambient Operating Temperature:

+60°C

Model Number:

529188

Port Connection Thread Size:

1/2 in

Pressure Gauge Port:

G 1/2

Minimum Operating Pressure:

0.8bar

Maximum Process Operating Temperature:

+60°C

Catalogue - The Festo Core Product Range.(Technical Reference)

Instruction Sheet - MS6 Series(Technical Reference)

Festo Filter regulators, MS series(Technical Reference)

MS6-LFR-1/2-D7-ERM-AS Specification Sheet(Technical Reference)
