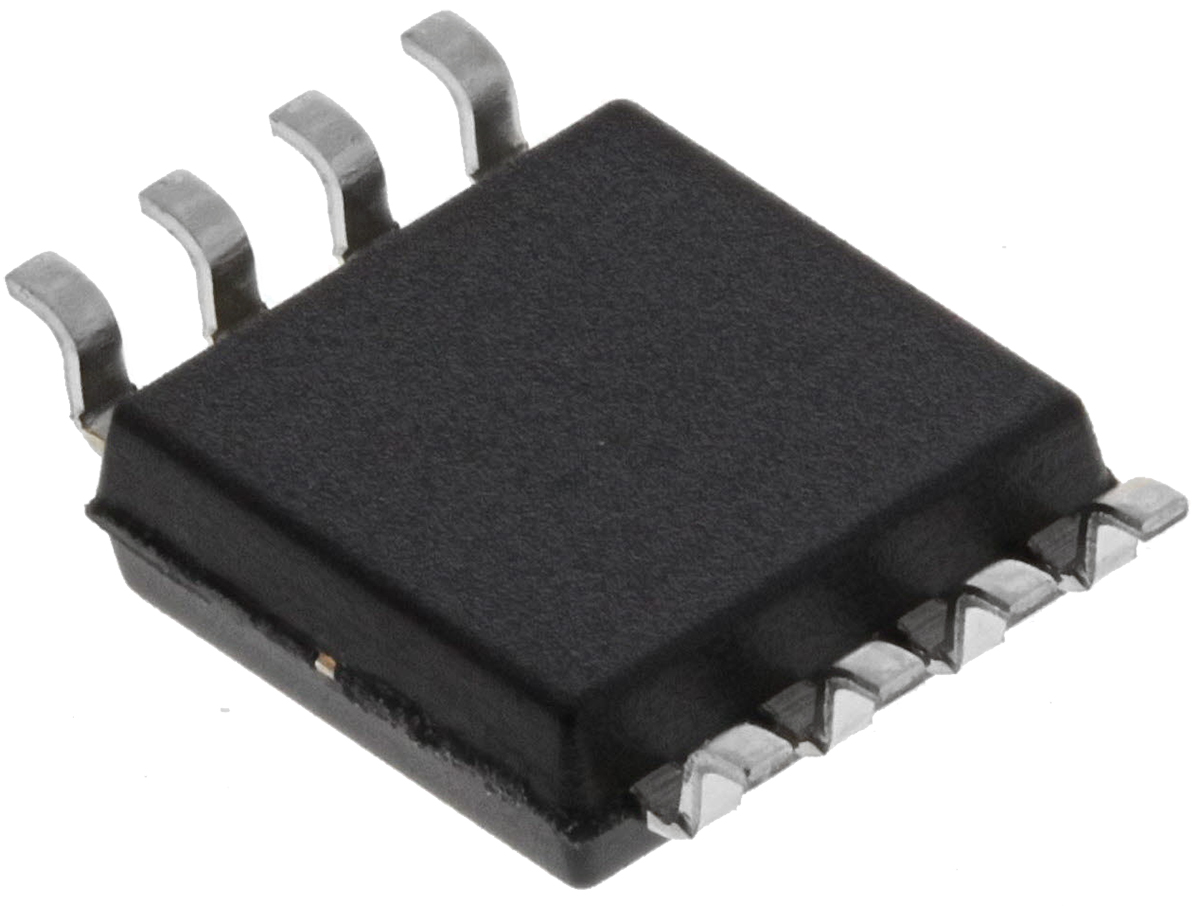

8Mbit SPI Flash Memory 8-Pin SOIC, SST25VF080B-50-4I-S2AF

Memory Size:

8Mbit

Interface Type:

SPI

Package Type:

SOIC

Pin Count:

8

Organisation:

1M x 8 bit

Mounting Type:

Surface Mount

Cell Type:

Split Gate

Minimum Operating Supply Voltage:

2.7 V

Maximum Operating Supply Voltage:

3.6 V

Block Organisation:

Symmetrical

Length:

5.4mm

Height:

1.91mm

Width:

5.4mm

Dimensions:

5.4 x 5.4 x 1.91mm

Maximum Operating Temperature:

+85 °C

Number of Bits per Word:

8bit

Minimum Operating Temperature:

-40 °C

Number of Words:

1M

Series:

SST25

Maximum Random Access Time:

5ns
