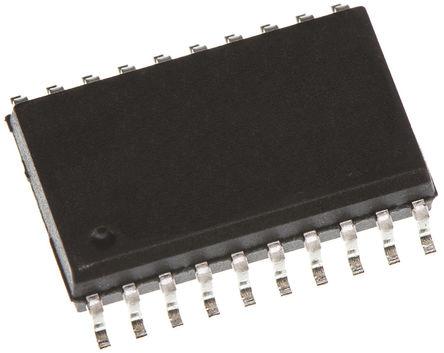

74HCT273D,653 Octal D Type Flip Flop IC, D Type Flip-Flop, 20-Pin SOIC

Logic Family:

74HCT

Logic Function:

D Type

Input Type:

TTL

Output Type:

D Type Flip-Flop

Output Signal Type:

Single Ended

Triggering Type:

Positive Edge

Polarity:

Inverting

Mounting Type:

Surface Mount

Package Type:

SO

Pin Count:

20

Set/Reset:

Master Reset

Number of Elements per Chip:

8

Maximum Propagation Delay Time @ Maximum CL:

225 ns @ 15 pF

Maximum Operating Supply Voltage:

5.5 V

Dimensions:

13 x 7.6 x 2.45mm

Minimum Operating Supply Voltage:

4.5 V

Height:

2.45mm

Width:

7.6mm

Minimum Operating Temperature:

-40 °C

Propagation Delay Test Condition:

15pF

Maximum Operating Temperature:

+125 °C

Length:

13mm
