JST Insulated Spade Tongue Crimp Terminals
A range of insulated spade tongue crimp terminals from JST made from tin-plated oxygen free copper.
JST part numbers Vxxx are straight-entry terminals with brazed seams
JST part numbers FVWSxxx are flared-entry terminals with butted seams • Vinyl insulation
• Straight or Flared entry types available
• UL Listed E42024
• CSA Certified LR20812
• RoHS Compliant
JST part numbers Vxxx are straight-entry terminals with brazed seams
JST part numbers FVWSxxx are flared-entry terminals with butted seams • Vinyl insulation
• Straight or Flared entry types available
• UL Listed E42024
• CSA Certified LR20812
• RoHS Compliant

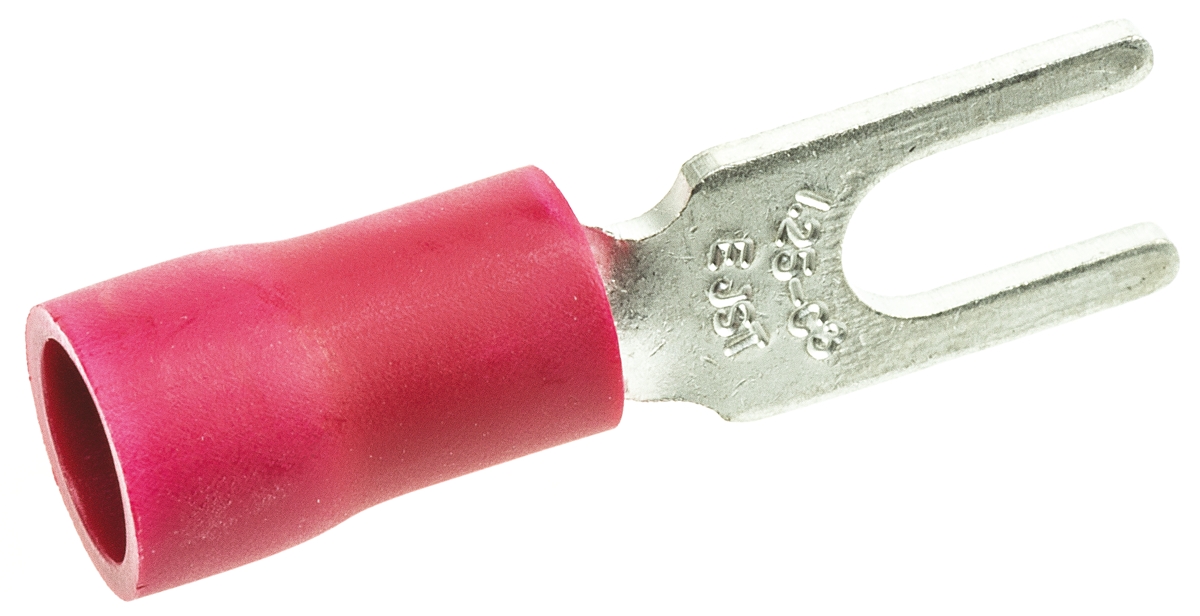

, FVWS1.25 Insulated Crimp Spade Connector, 0.2mm² to 1.65mm², 22AWG to 16AWG, 3.2mm Stud Size Vinyl, Red
Manufacturer:
JST
Manufacturer Part No:
FVWS1.25-C3A(LF)
Enrgtech Part No:
ET14108239
Warranty:
Manufacturer
£ 0.15
Checking for live stock
Series:
FVWS1.25
Insulation:
Insulated
Width:
5.6mm
Insulation Material:
Vinyl
Minimum Wire Size mm²:
0.2mm²
Maximum Wire Size mm²:
1.65mm²
Minimum Wire Size AWG:
22AWG
Maximum Wire Size AWG:
16AWG
Stud Size:
3.2mm
Colour:
Red
Overall Length:
20mm
