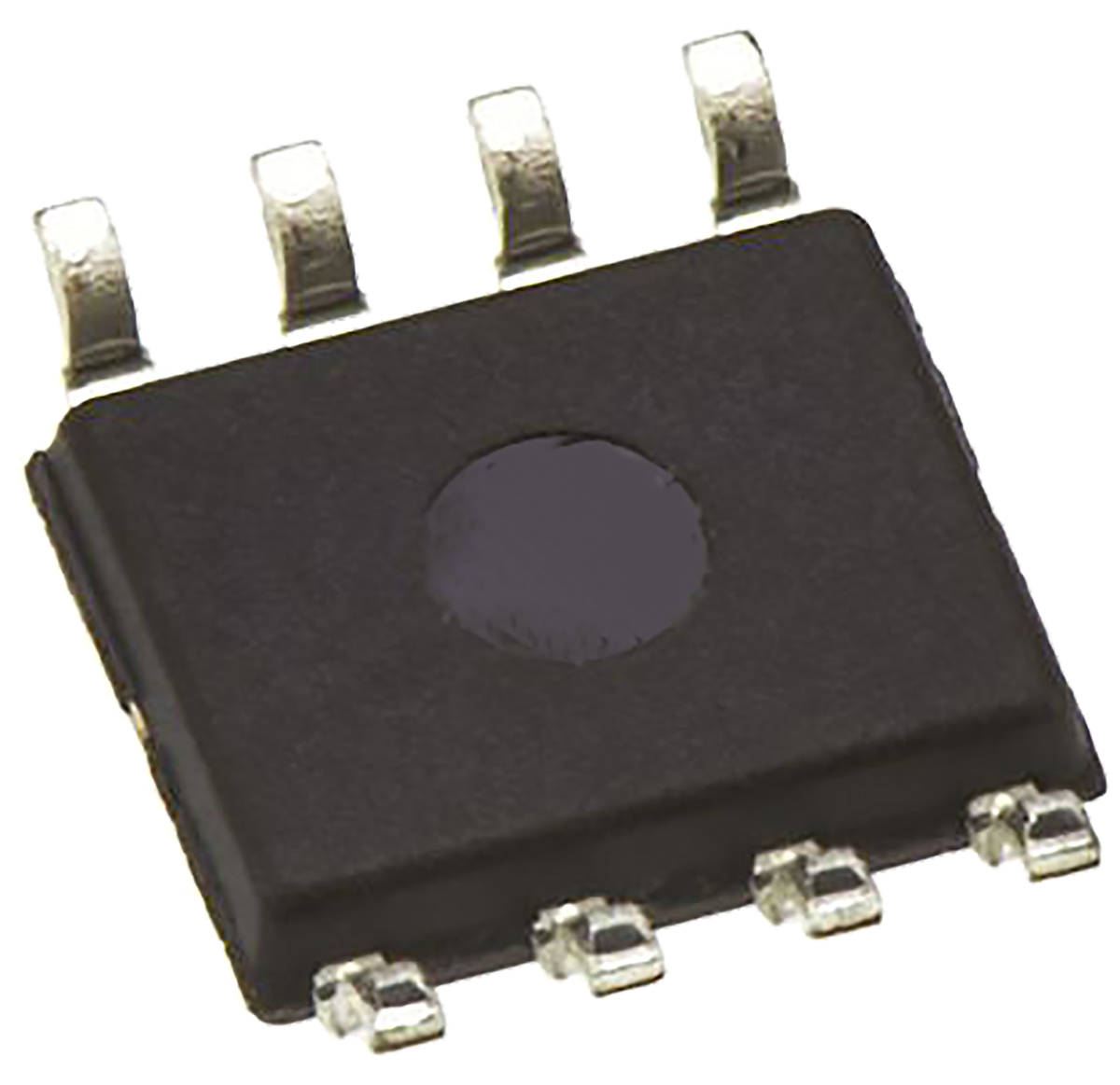

512kbit I2C FRAM Memory 8-Pin SOIC, FM24V05-G

Memory Size:

512kbit

Organisation:

64K x 8 bit

Interface Type:

I2C

Data Bus Width:

8bit

Maximum Random Access Time:

450ns

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

8

Dimensions:

4.97 x 3.98 x 1.48mm

Length:

4.97mm

Maximum Operating Supply Voltage:

3.6 V

Width:

3.98mm

Height:

1.48mm

Maximum Operating Temperature:

+85 °C

Minimum Operating Supply Voltage:

2 V

Number of Bits per Word:

8bit

Automotive Standard:

AEC-Q100

Number of Words:

64k

Minimum Operating Temperature:

-40 °C
