FRAM, Cypress Semiconductor
Ferroelectric Random Access Memory (F-RAM) is energy-efficient and it has the highest-reliability of the non-volatile RAMs for both serial and parallel interfaces. Parts with suffix A are designed for automotive applications and are AEC-Q100 qualified.
Nonvolatile Ferroelectric RAM Memory
Fast write speed
High endurance
Low power consumption
Fast write speed
High endurance
Low power consumption

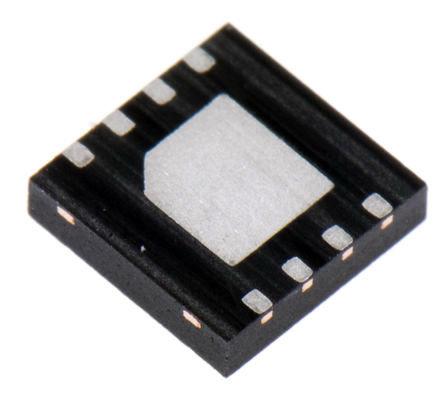

16kbit Serial-2 Wire, Serial-I2C FRAM Memory 8-Pin DFN, FM24CL16B-DG
Manufacturer:
Infineon
Manufacturer Part No:
FM24CL16B-DG
Enrgtech Part No:
ET24121721
Warranty:
Manufacturer
£ 1.18
Checking for live stock
Memory Size:
16kbit
Organisation:
2K x 8 bit
Interface Type:
Serial-2 Wire, Serial-I2C
Data Bus Width:
8bit
Maximum Random Access Time:
3000ns
Mounting Type:
Surface Mount
Package Type:
DFN
Pin Count:
8
Dimensions:
4 x 4.5 x 0.7mm
Length:
4.5mm
Width:
4mm
Maximum Operating Supply Voltage:
3.65 V
