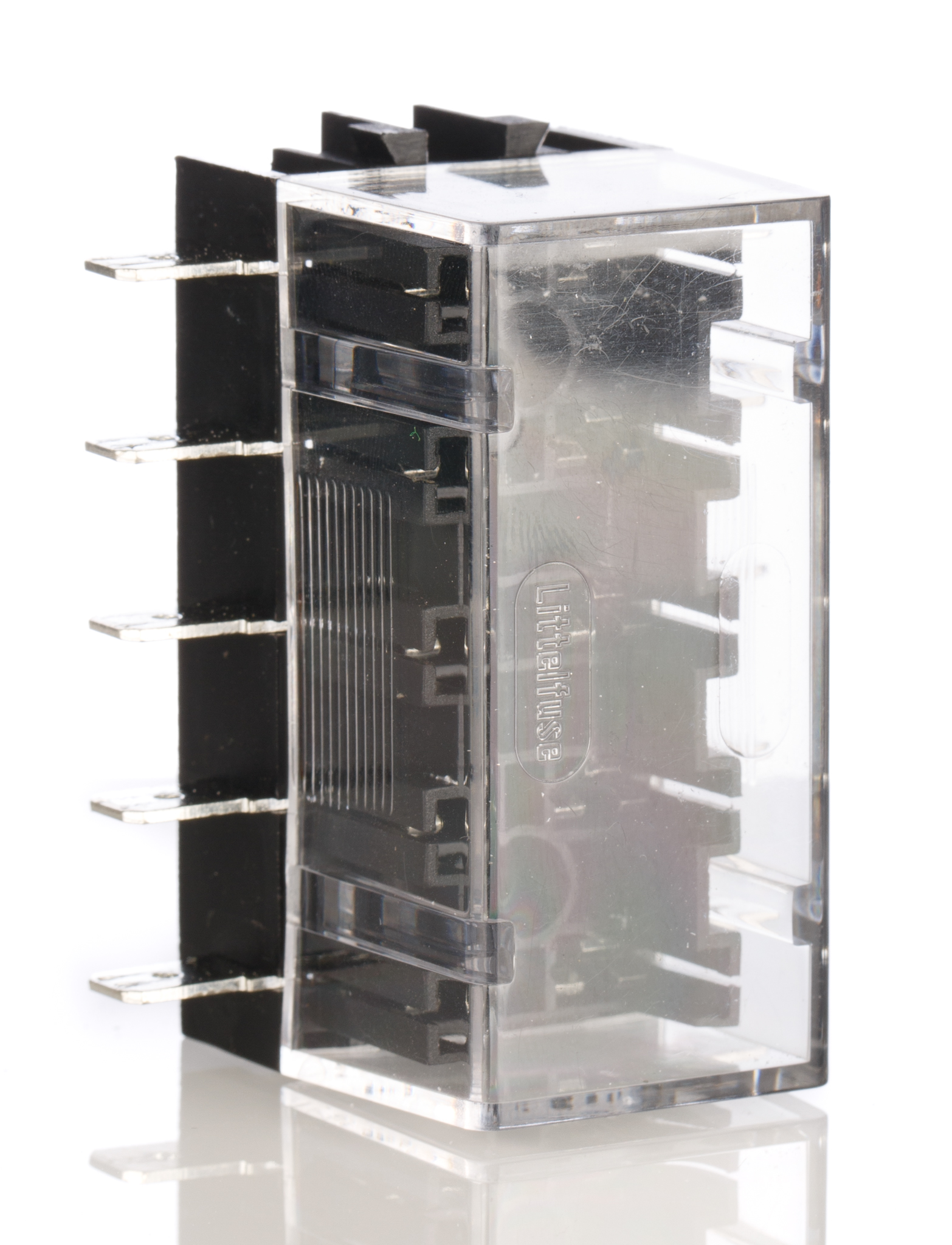

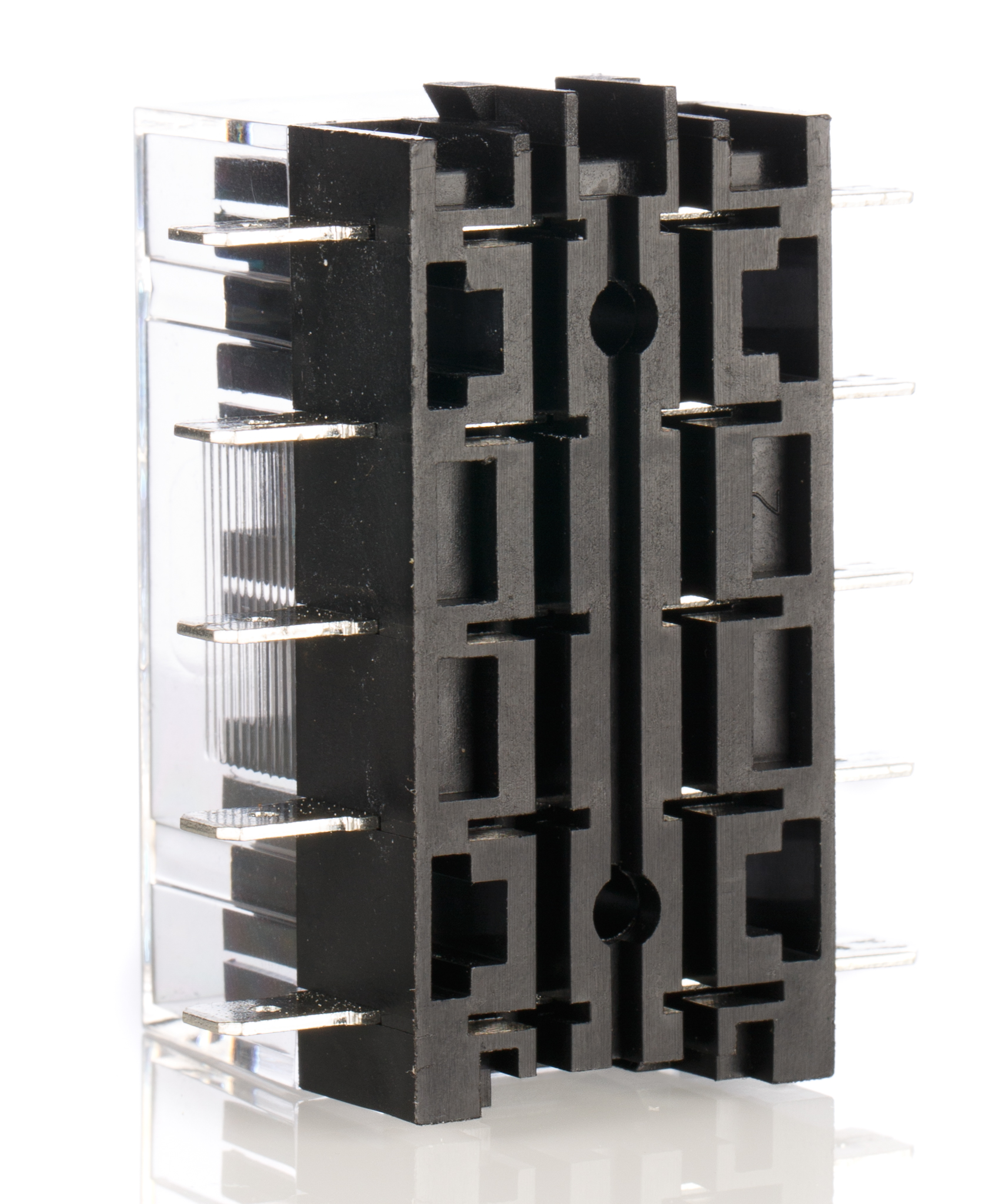

ATO Blade Fuseholder From Littelfuse, a robust multi-pole fuse block designed for panel mounting automotive ATO blade fuses. The durable fuse holder is supplied in two parts, the fuse base and the fuse cover. Fitting the fuses couldn’t be easier, once the appropriately sized fuse is selected it can be quickly inserted into the base and wired accordingly. The Fuse Base The 5 pole rectangular base is constructed from a high-quality black thermoplastic material. Horizontal ” QC (Quick Connect) male terminals protrude from each side of the base providing a convenient method of connection. Bases can be mounted to a panel, plate or chassis by pre-drilled screw mounting holes. The Fuse Cover The removable fuse cover is constructed from a high-quality transparent thermoplastic material. The clear top cover provides extra protection from dust and debris to the fuses contained within the base. The see-through cover simply fits over the panel mount base and snaps into position. Features and Benefits • Robust and reliable
• Made from high-quality thermoplastic materials
• Convenient two-part construction snaps together
• Suitable for ATO blade-style automotive fuses
• 15 amps maximum
• 32 volts maximum (dc) Applications Fuse blocks are used in a wide range of electrical and electronic applications. Automotive fuses and holders are used to protect wiring and electrical equipment and devices in vehicles. Fuse holders contain fuses and are a simple and convenient method of providing circuit protection for equipment and devices.
