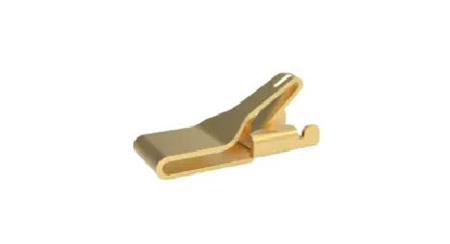

The TE Connectivity ultra small C-Clip spring finger is side protected. It has operating temperature range from The TE Connectivity ultra small C-Clip spring finger is side protected. It has operating temperature range from 40°C to 85 °C.
Nickel underplating
Gold plating on point of contact area
Contact Working Range Low (0.4) mm and High(0.75)
Gold plating on point of contact area
Contact Working Range Low (0.4) mm and High(0.75)
1.15mm Spring Contact
Manufacturer:
TE ConnectivityManufacturer Part No:
2329497-2
Enrgtech Part No:
ET24144306
Warranty:
Manufacturer
£ 0.08
Checking for live stock
Material:
Stainless Steel
Current Rating:
1.5A
Contact Plating:
Gold
Dimensions:
2.7 x 1 x 1.15mm
Height:
1.15mm
