Han A® Inserts Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings.
Han A inserts options include:
1810482 – 09200042611, 4P+E pin insert,10A
1810498 – 09200042711, 4P+E socket insert,10A
1810858 – 09200032611, 3P+E pin insert,10A
1810870 – 09200032711, 3P+E socket insert,10A
1810886 – 09200102612, 10P+E pin insert,16A
1810892 – 09200102812, 10P+E socket insert,16A
1810915 – 09200162612, 16P+E pin insert,16A
1810937 – 09200162812, 16P+E socket insert,16A Han A series Features: • Slim construction
• Poles: 3-16 (screw connection)

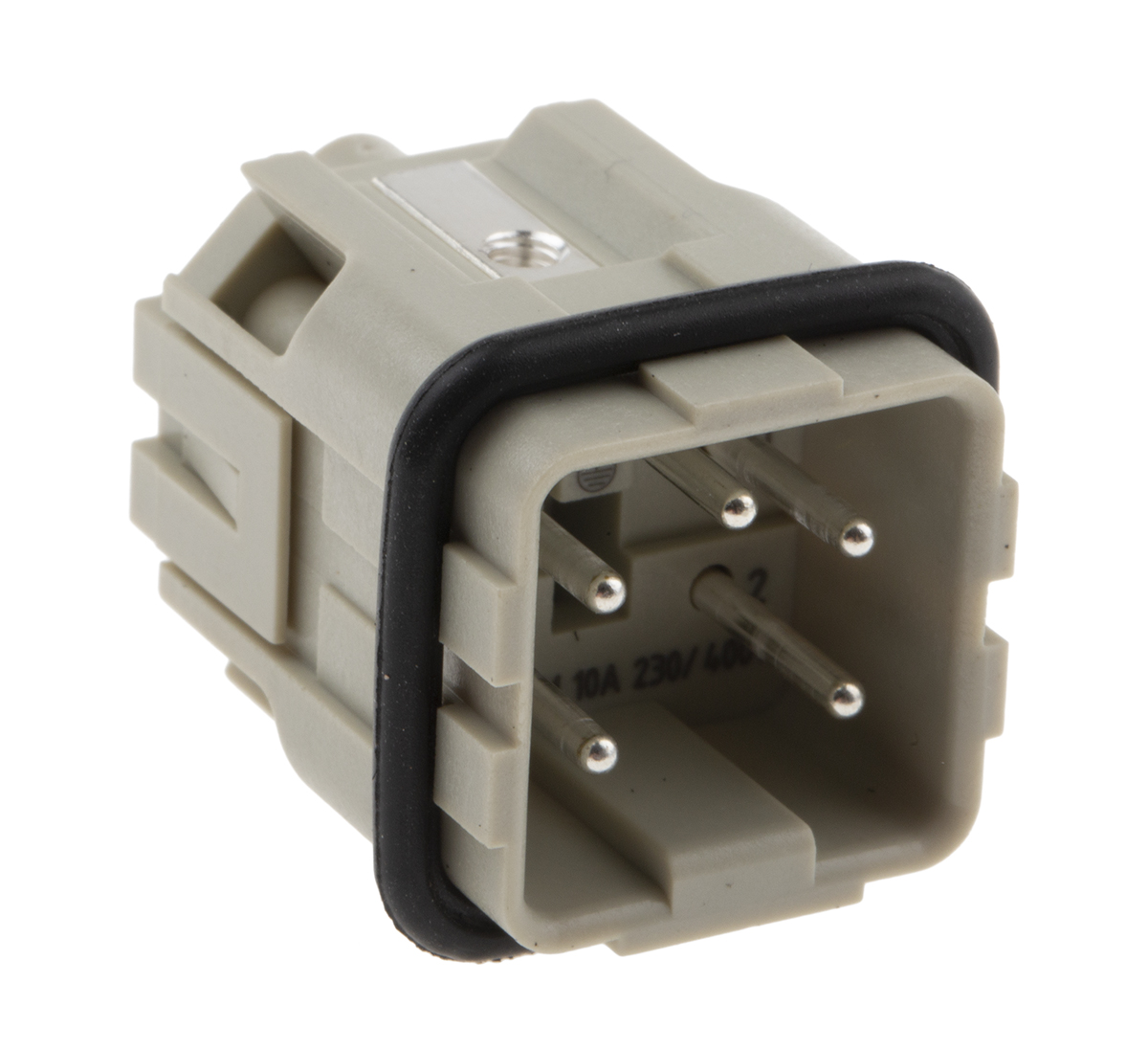

HARTING Heavy Duty Power Connector Insert, 10A, Male, Han A Series, 4 Contacts

Manufacturer:
Manufacturer Part No:
09200042611
Enrgtech Part No:
ET10839139
Warranty:
Manufacturer
Checking for live stock
Current Rating:
10A
Gender:
Male
Series:
Han A
Type:
Connector Insert
Termination Method:
Screw Down
Pole Format:
4P+E
Number of Rows:
2
Voltage Rating:
230 V, 400 V
Mounting Type:
Panel Mount
IP Rating:
IP44
Number of Contacts:
4
Contact Material:
Copper Alloy
Contact Plating:
Gold, Silver
Body Orientation:
Straight
