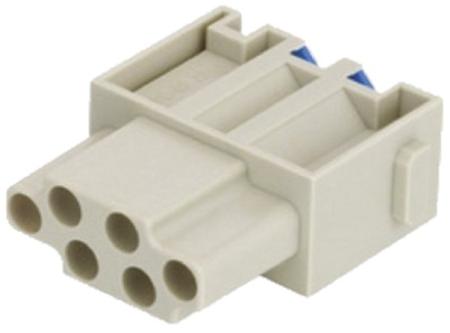

HARTING Heavy Duty Power Connector Module, 16A, Female, Han-Modular Series, 6 Contacts | 09140062733 | ET11793882

Han E Quick Lock Modules Han E Quick Lock modules offer an innovative and as the name suggest quick locking method of conductor insertion, no special tooling is required, just a terminal screw driver, so is ideally suited to on site assembly. These Quick Lock modules are compatible with standard Han E modules assembled with crimp terminals. Ideal for use with the Han-Modular series, which combine different transmission media and contact types within a single connector. Rated at 500V 16A
Copper alloy contacts
Quick Lock termination wire range 20-14 AWG (0.5 to 2.5mm²)
Polycarbonate body material
Over 500 Mating cycles
Operating temperature -40 to +125 °C
