High Frequency HF3 Series
High frequency relay for 50 Ohm systems. 1 pole SMT plastic-sealed configuration with monostable or bistable coil.
Frequency range DC to 3GHz
50Ω and 75Ω impedance models available
140mW coil consumption
Dimensions 14.6mm (L) x 7.2mm (W) x 10mm (H)
50Ω and 75Ω impedance models available
140mW coil consumption
Dimensions 14.6mm (L) x 7.2mm (W) x 10mm (H)

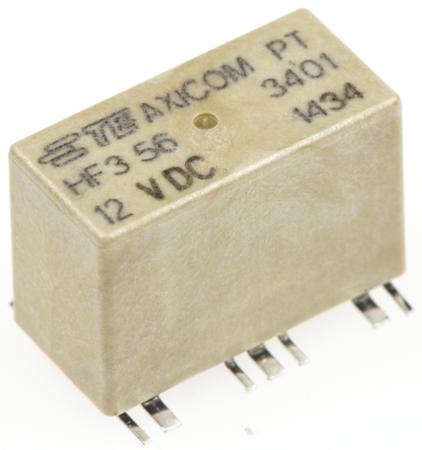

PCB Mount RF Relay, 12V dc Coil, 50Ω Impedance, 3GHz Max. Coil Freq., SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
HF3-56
Enrgtech Part No:
ET13888982
Warranty:
Manufacturer
£ 13.34
Checking for live stock
Maximum Coil Frequency:
3GHz
Coil Resistance:
1.028Ω
Relay Type:
RF Relay
Contact Resistance:
100 mΩ
Impedance:
50Ω
Contact Configuration:
SPDT
Coil Voltage:
12V dc
Mounting Type:
PCB Mount
Contact Voltage:
250V dc
Coil Power:
140mW
Contact Material:
Gold Plated
Height:
10mm
