Series:
SiliVolt-1V
Voltage:
1.5kV
Sub Type:
SILI-1V 1.0
Cable Length:
25m
Core Strands:
511

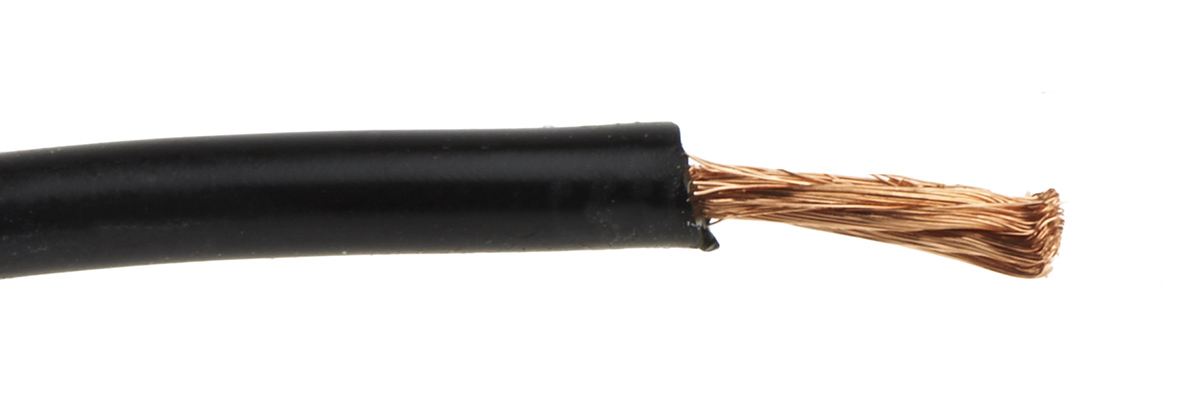

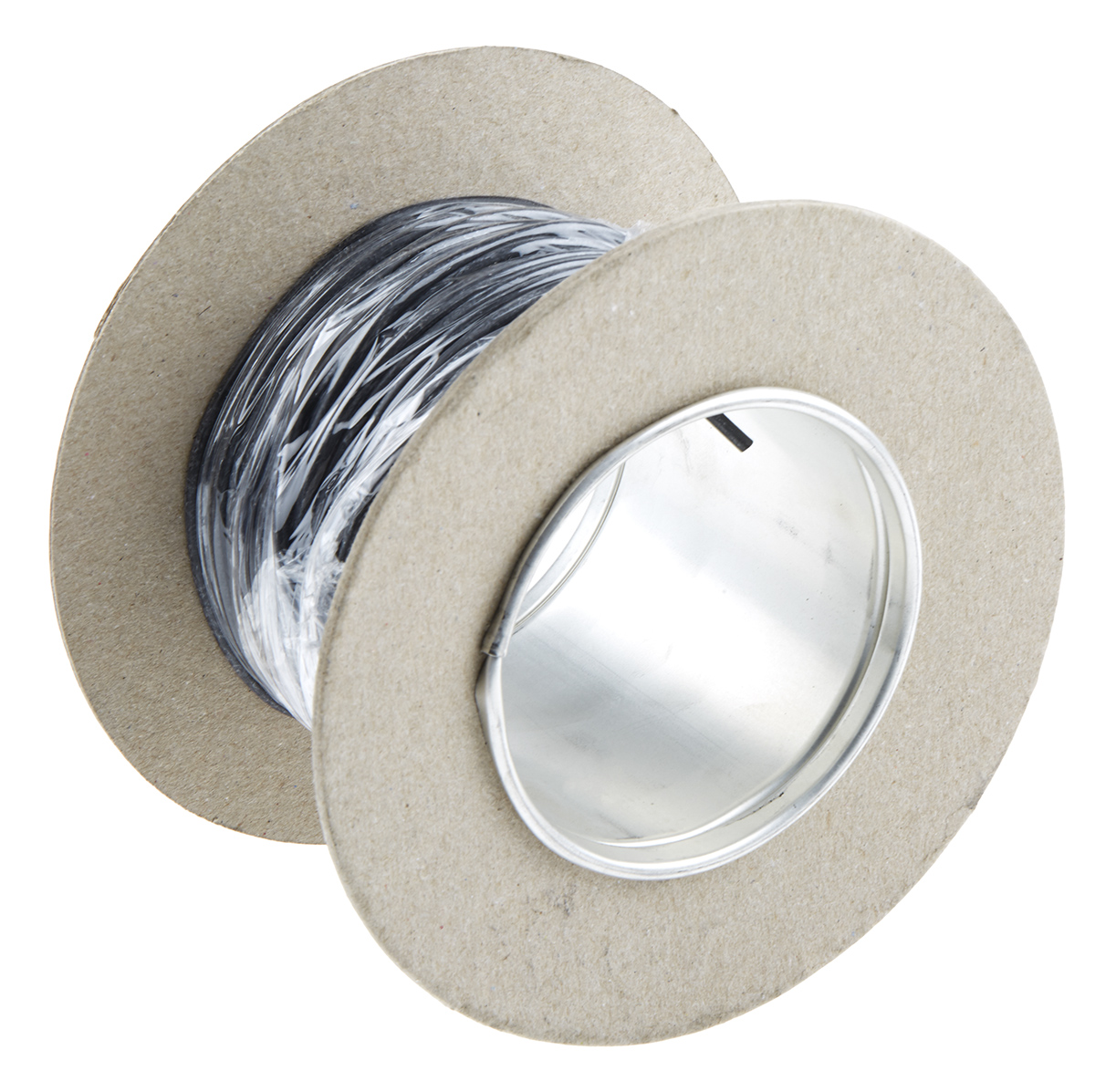

Product Type:
Hook Up Wire
Jacket Colour:
Black
Fire Behaviour:
CPR, enclosed areas, Flame Retardant, Low Flammability, Low Smoke Halogen Free
Outside Diameter:
3.9mm
Conductor Material:
Copper
Standards/Approvals:
UL1213, UL1015, UL1007, UL, TS 9760 HD 21.5.S3, RoHS, REACH, Mil Spec, ISO9001, IEC 60332-1-2, IEC60332-1, H07V-K, H07V2-K, H05V-K, H05V2-K, DIN VD0292, DIN 47100, DEF STAN 61-12 Part 6, DEF STAN 61-12 Part29/1, CSA TEW, CENELEC HD21.5, BS EN13062, BS4808, BS4109, BASEC, VD0281-5, UL1581 VW-1, VD2050, VD0295 part 5, VD0295, H07Z-K, HAR, HD 361, IEC 60227-5, IEC 60228 Css 5
Maximum Operating Temperature:
150°C
Minimum Operating Temperature:
-50°C
