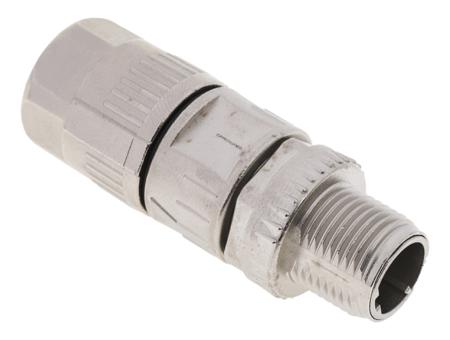

HARTING Circular Connector The HARTING Harax M12 series 4-poles male circular shielded connector has a plug connection. This crimp slim design connector has a voltage rating of 250V and a current rating is up to 4A per contact. The screw-on connectors mate with cable mount plugs and receptacles with a positive lock feature and quick-connect and disconnect capabilities. The connector shell is made from liquid crystal polymer. This connector also features a screw locking mating system that ensures a secure connection. This compact connector is ideal for use in challenging conditions. Features and Benefits Cable diameter ranges between 4.4mm and 8.8mmConductor cross section ranges between 26AWG and 18AWGCrimp terminationD-codingMating cycle is greater than 500cyclesOperation temperature ranges between -40°C and 85°CRobust and reliable connectionStraight body orientationWater and dustproof Applications Electrical equipmentGeneral industrial applicationsHVAC equipmentIndustrial automation Certifications CSA certifiedIEC 61076-2-101IP67 ratedUL approved
