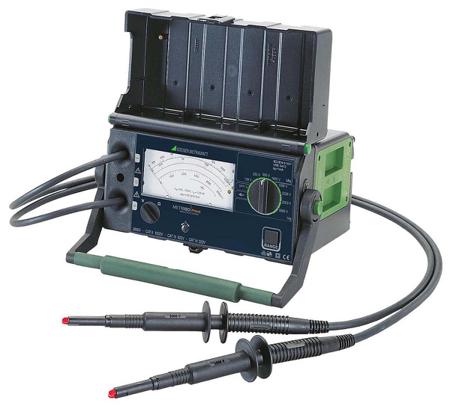

METRISO PRIME 5000 V High-Voltage Insulation Tester
Analog high-voltage insulation measuring instrument with the following voltages: 100, 250, 500 and 1000 V (per EN 61 557 part 1) and 1500, 2000, 2500 and 5000 V.
Large measuring range from 10 kΩ to 1 TΩ
Easy to read logarithmic display
Measuring voltages: 100, 250, 500, 1000, 1500, 2000, 2500 and 5000 V
Measurement to 1000 V per DIN VDE 0413
Measuring range: 100 kΩ to 100 MΩ (1000 V)
Voltage measurement to 2000 V DC, AC
Guard terminal for the elimination of surface current
Easy to read logarithmic display
Measuring voltages: 100, 250, 500, 1000, 1500, 2000, 2500 and 5000 V
Measurement to 1000 V per DIN VDE 0413
Measuring range: 100 kΩ to 100 MΩ (1000 V)
Voltage measurement to 2000 V DC, AC
Guard terminal for the elimination of surface current
METRISO PRIME Insulation Tester, 100V Min, 5000V Max, 100GΩ Max, CAT II 1000V
Manufacturer:
Gossen Metrawatt
Manufacturer Part No:
M550T
Enrgtech Part No:
ET13893947
Warranty:
Manufacturer
£ 1428.57
Checking for live stock
Model Number p:
METRISO PRIME
Tester Type:
Insulation Tester
Maximum Test Voltage:
5000V
Minimum Test Voltage:
100V
Maximum Insulation Resistance Measurement:
100GΩ
Display Type:
Analogue
Test Current:
1mA
Battery Type:
D
Power Source:
Battery
Minimum Operating Temperature:
0°C
Maximum Operating Temperature:
+40°C
Safety Category Level:
CAT II, CAT III, CAT IV
