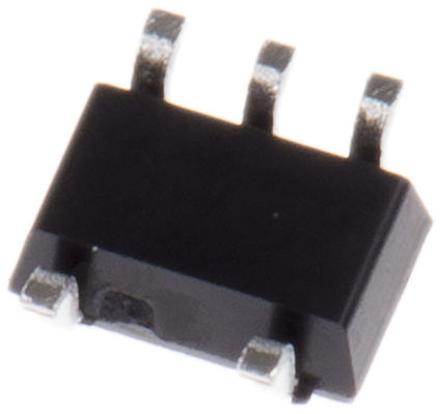

74AHCT1G04GW,125 Inverter, 5-Pin TSSOP

Logic Function:

Inverter

Number of Elements per Chip:

1

Schmitt Trigger Input:

No

Maximum Propagation Delay Time @ Maximum CL:

7.7 ns @ 5.5 V

Maximum High Level Output Current:

-8mA

Maximum Low Level Output Current:

8mA

Mounting Type:

Surface Mount

Package Type:

TSSOP

Pin Count:

5

Logic Family:

AHCT

Dimensions:

2.25 x 1.35 x 1mm

Maximum Operating Supply Voltage:

5.5 V

Height:

1mm

Length:

2.25mm

Minimum Operating Temperature:

-40 °C

Minimum Operating Supply Voltage:

4.5 V

Propagation Delay Test Condition:

50pF

Width:

1.35mm

Maximum Operating Temperature:

+125 °C
